Primary Function
Features:
- Bently Nevada 3-Wire Interconnect Cable
- 330400 and 330425 Accelerometer Acceleration Transducers
- The regulations clearly stipulate that the cable length cut by the factory is 60 feet (approximately 18.3 meters)
3-conductor shielded 22 AWG (0.5 mm2) cable with 3-socket plug at one end, terminal lugs at the other end. Minimum length of 2.0 ft (0.6 m), maximum length of 99 ft (30 m).
These accelerometers are intended for critical machinery applications where casing acceleration measurements are required, such as gear mesh monitoring. The 330400 is designed to address the requirements of American Petroleum Institute Standard 670 for accelerometers. It provides an amplitude range of 50 g peak and a sensitivity of 100 mV/g. The 330425 is identical except it provides a larger amplitude range (75 g peak) and a sensitivity of 25 mV/g.
The 16925-70 Bently Nevada Interconnect Cables may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 16925-70 Interconnect Cables Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

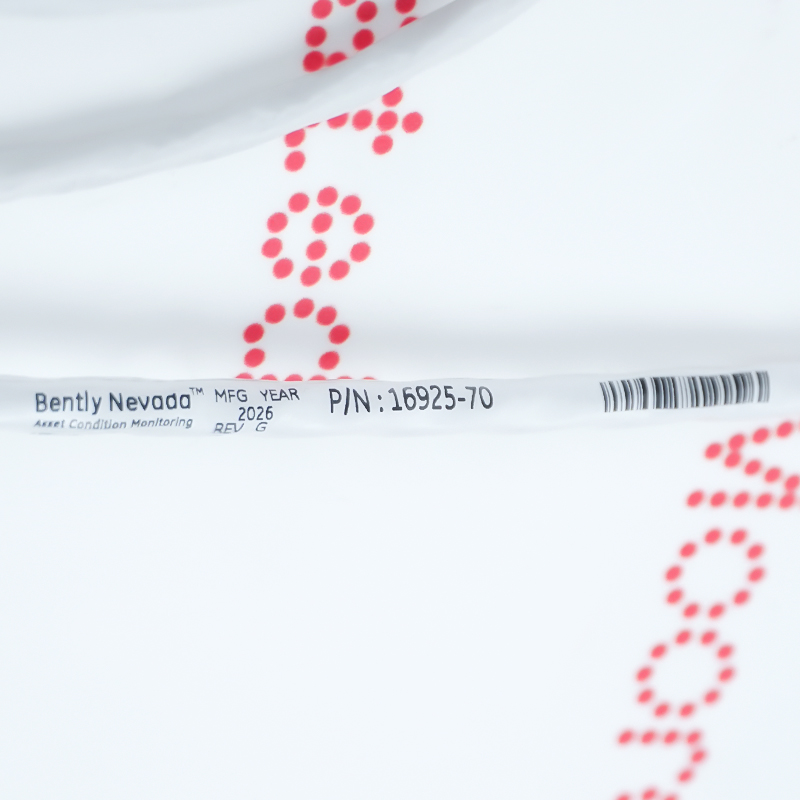

- Model: 16925-70
- Warranty: One-year warranty
- Condition: Brand new, original, in stock
- Product Family: 330400 and 330425 Accelerometer Acceleration Transducers
Interconnect Cables
Part Number-AA
16925-Axx
A: Cable Length Option in feet
The following are standard lengths
6 ft ( 1.8 m)
8 ft ( 2.4 m)
10 ft ( 3.0 m)
12 ft ( 3.6 m)
15 ft ( 4.5 m)
17 ft ( 5.0 m)
20 ft ( 6.0 m)
25 ft ( 7.6 m)
50 ft ( 15.2 m)
99 ft ( 30.0 m)
This cable plays a crucial role in condition monitoring and mechanical protection systems. It provides a stable and clear signal path for transmitting high-frequency housing measurement data, such as tracking gear meshing frequencies and blade pass-through frequencies, and transmits the data back to the Bently Nevada 3300 or 3500 system rack.
