Features:
- 150 A AC-3 and 200 A AC-1 contactor ratings.
- 75 kW motor rating at 380/400 V for documented AC-3 duty.
- Three-pole construction with order-code-specific coil and auxiliary contacts.

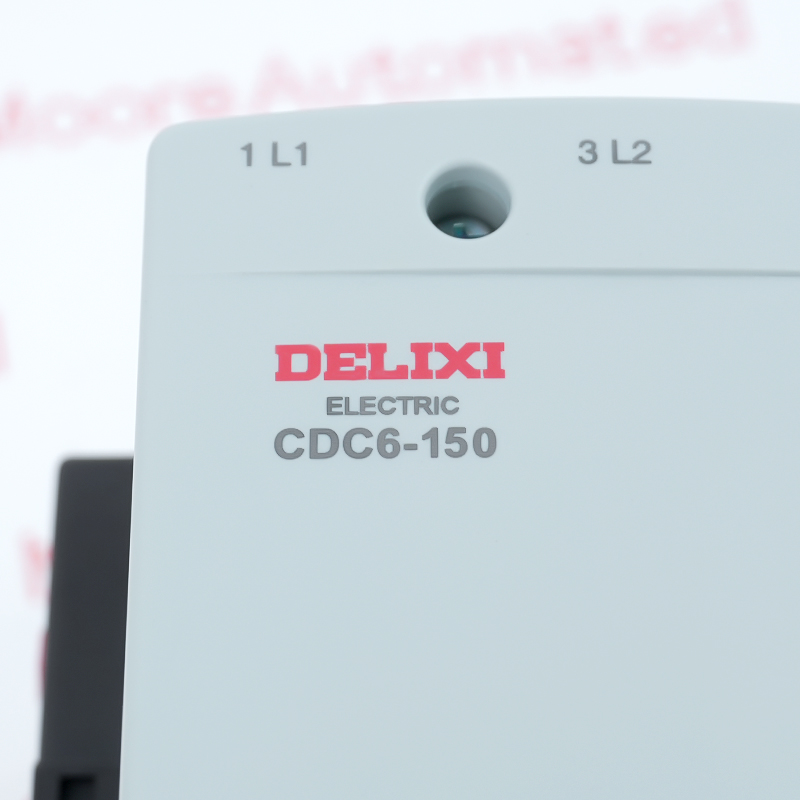

CDC6-150 switches three-phase motor and load circuits in a correctly coordinated starter. DELIXI lists 1000 V insulation voltage, 690 V operational voltage and four AC-3 motor-power ratings: 40 kW at 220/240 V, 75 kW at 380/400 V, 80 kW at 415/440 V and 100 kW at 660/690 V.
Before replacement, record the complete order code, control voltage, auxiliary-contact arrangement, conductor positions, overload setting and interlock wiring. After installation, verify terminal tightness and control-supply compatibility, then test opening, closing, auxiliary feedback and motor protection under a controlled commissioning procedure.
The DELIXI CDC6-150 AC Contactor is listed as Active / Available from OEM. Current revision, availability and supplied scope are confirmed in the written quotation.
DELIXI CDC6 AC Contactor Catalog and Technical Data, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
CDC6-150 is a three-pole contactor with 150 A AC-3 operational current, 200 A AC-1 current, 1000 V rated insulation voltage and 690 V rated operational voltage. DELIXI lists AC-3 motor ratings of 40 kW at 220/240 V, 75 kW at 380/400 V, 80 kW at 415/440 V and 100 kW at 660/690 V.
These ratings do not replace starter coordination. Confirm the motor full-load current, utilization category, switching frequency, upstream short-circuit protection and overload relay before installation.
The complete CDC6 order reference includes rated current, auxiliary-contact execution, coil-voltage code and frequency code. For the 115–630 A frame range, the official table identifies the 00 execution as 0 NO + 0 NC instantaneous auxiliary contacts before optional accessories are fitted.
CDC6-150 alone does not define the coil. Confirm the printed coil code and required control supply. Official documentation lists different codes for 50 Hz and 50/60 Hz executions; do not infer the installed coil from frame size or appearance.

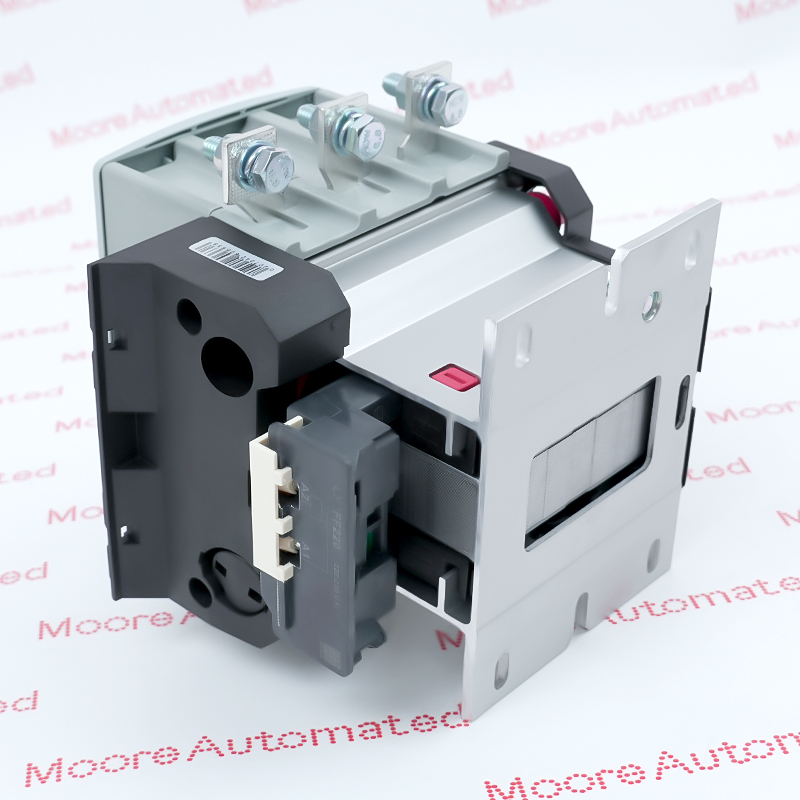

Record all main, coil and auxiliary wiring before removal. The CDC6-150 maximum envelope is listed as 167 x 171 x 172 mm, with M8 main-terminal hardware. Official accessories for the 115–630 A range include FD6 auxiliary-contact blocks, FT6 pneumatic time-delay heads, FR6 interlocks, X6 replacement coils and MC6 main contacts.
Accessory fit does not establish electrical compatibility. Confirm the exact accessory reference, contact arrangement, coil voltage, installation orientation and approved starter diagram before assembly.
