Features:
- Sixteen 10/100Base-TX copper RJ45 ports.
- No fiber ports on the H3A execution.
- Dual diode-OR 24/28 VDC power inputs for the documented redundant supply arrangement.
IS420ESWBH3A is the 16-copper-port, no-fiber execution in the GE Mark VIe IONet switch family. The complete H3A suffix controls the port arrangement and must not be replaced using specifications for the eight-port ESWA family.
Before replacement, record both power feeds, every port and cable, network segment, switch location, grounding, mounting clip and controller diagnostics. After installation, verify redundant power and every IONet communication path.

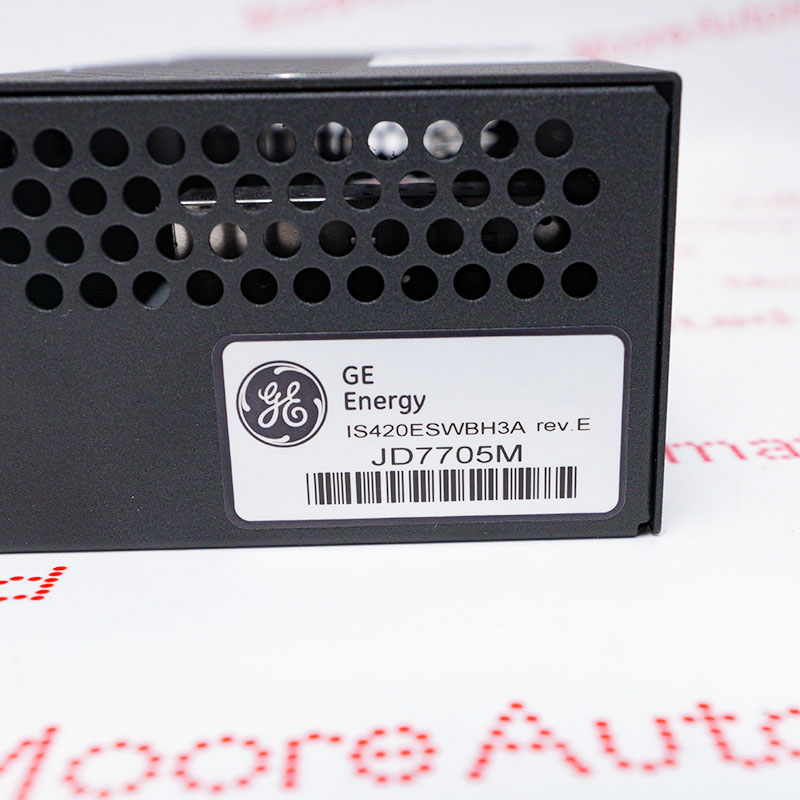

The IS420ESWBH3A General Electric 16-port IONet Ethernet switch is listed as Active / Available from OEM. Current revision, availability and supplied scope are confirmed in the written quotation.
General Electric IS420ESWBH3A documentation and reference links.
Important Notice: Confirm the complete order identity, hardware execution, receiving-system configuration and required document revision before replacement.
The H3A execution provides 16 copper 10/100Base-TX RJ45 ports and has no fiber interfaces.
TB1 and TB2 accept the documented diode-OR 24/28 VDC feeds. Reproduce the approved port map and IONet segment assignments.
Verify the DIN-rail hardware, grounding, ventilation and every copper-link indicator after installation.
