Features:
- Supported Controller I/OScan rates: 10 ms, 40 ms, 80 ms, 160 ms
- 12 channels per module (10 AI, 2 AO)
- Fully configurable channels that accept standard ±5VDC, ±10VDC, or industrial 4-20mA current loops

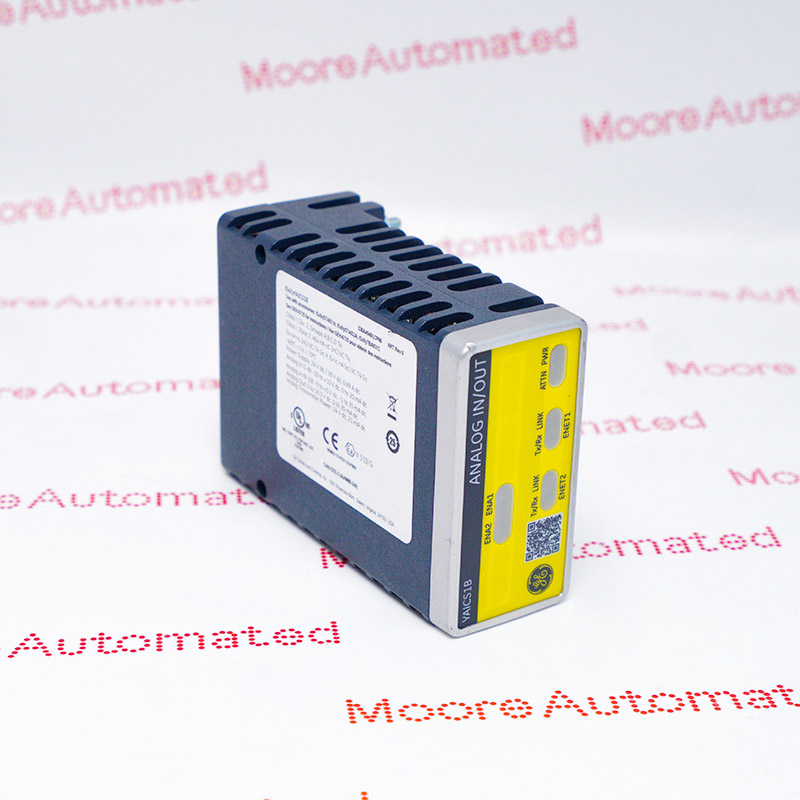

The Mark VIeS Functional Safety Analog Input /Output (I/O) module provides an interface between the process analog sensors / actuators (10 analog inputs and two analog outputs) and the Mark VIeS Safety control logic. The Analog I/O module consists of two orderable parts: the Analog I/Opack and the Analog I/Oterminal board.
All safety Analog I/O modules use the same Analog I/Opack, IS420YAICS1B. There are two DIN-rail mounted Analog I/Oterminal boards available to provide the necessary redundancy and terminal block styles. Users can select the configuration that best addresses their needs for availability and SIL level. The Analog I/O module is available in both Simplex and Triple Modular Redundant(TMR) configurations.
The IS420YAICS1B GENERAL ELECTRIC Analog I/O Pack Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).

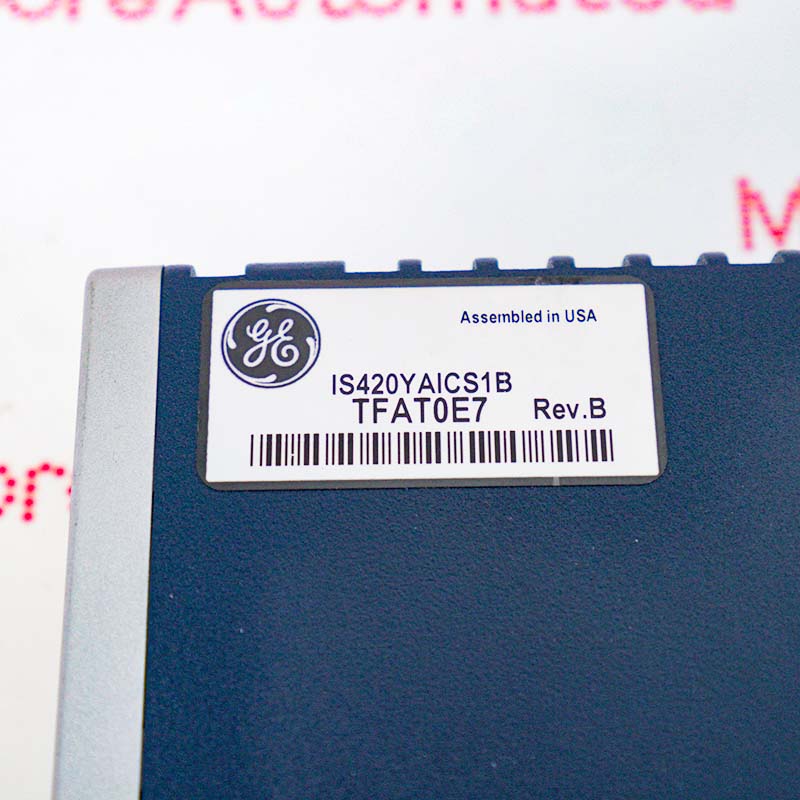

GENERAL ELECTRIC IS420YAICS1B Analog I/O Pack Module datasheet(manual), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The IS420YAICS1B assembly is designed for mounting on specific DIN rail terminal blocks for connecting load resistors required for voltage drop sensing:
IS410STAIS2A: For standard simplex architectures.
IS410TBAIIS1C: For multi-channel triple modular redundancy (TMR) systems.
SIL-Rated Safety Function: The "S" designation in the part number indicates compatibility with Mark VIeS functional safety infrastructure. It employs a 16-bit analog-to-digital converter (ADC) resolution, ensuring input accuracy of 0.1% of full scale for critical safety trip logic.
Triple Module Redundancy (TMR): It supports independent simplex (1 module) and high-availability TMR (3 modules operating in parallel) configurations. In TMR settings, the master controller uses hardware voting logic to select the intermediate value, automatically discarding any drifting or out-of-range sensor readings.
Physical Connector: Network telemetry data is transmitted directly back to the IONet switch ring via dual RJ-45 Ethernet ports. It is physically connected to the terminal block via a robust DC-37 pin D-sub connector.
Hardware Misuse Alarm: This is the S1B hardware version. According to GE's operating manual, this package version is incompatible with the older IS420YAICS1A package on the same underlying terminal block.
