      In Stock

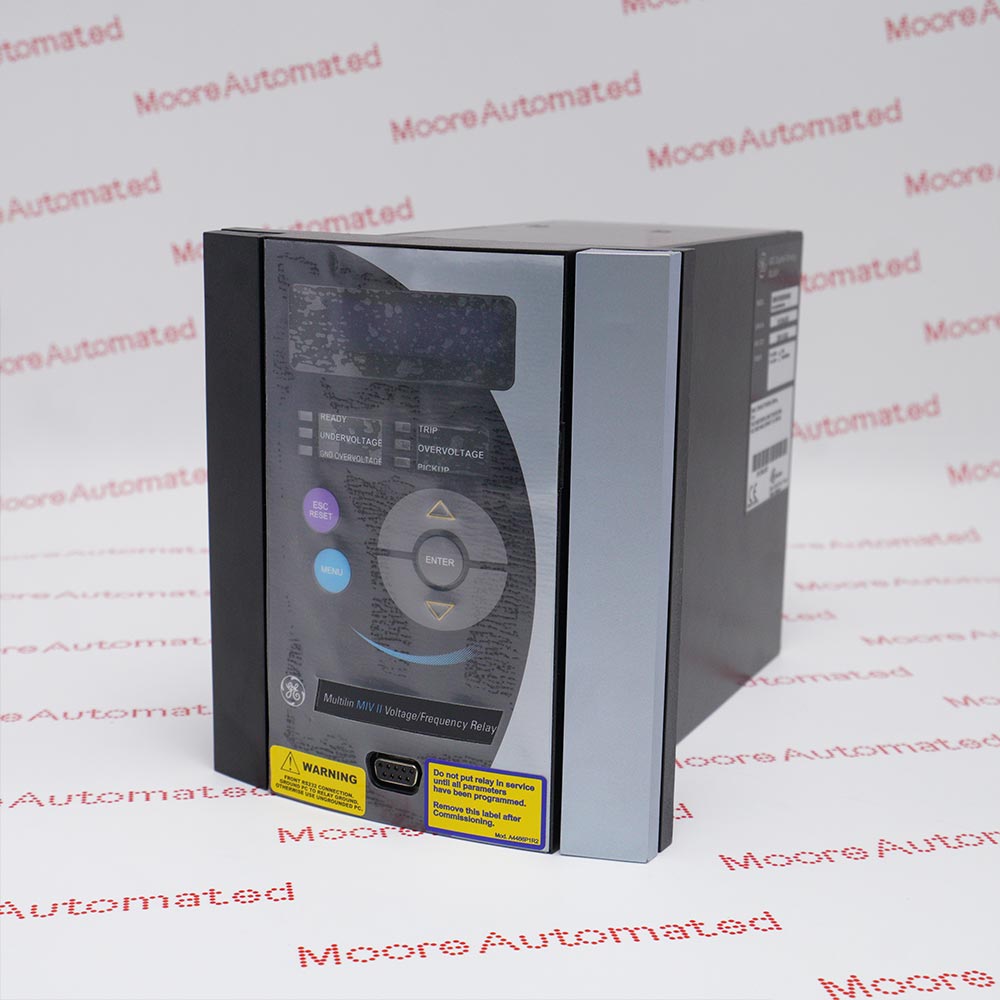

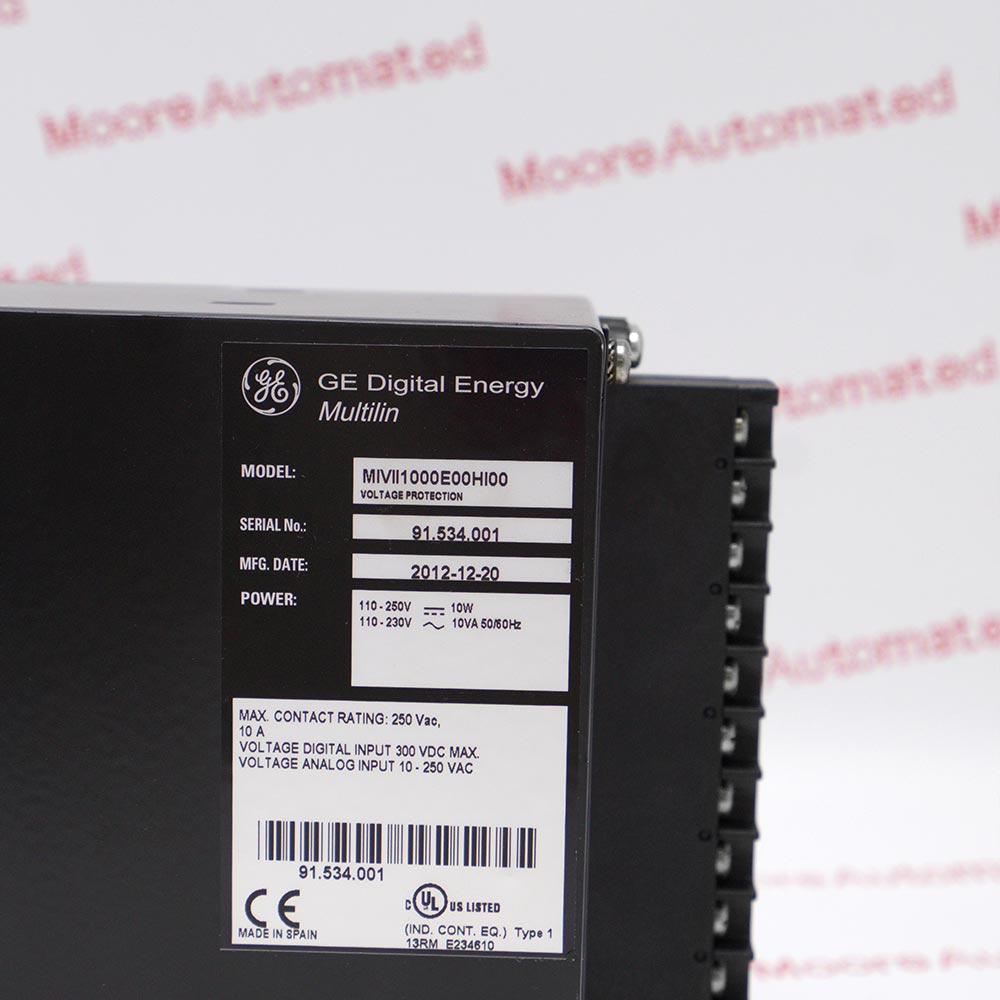

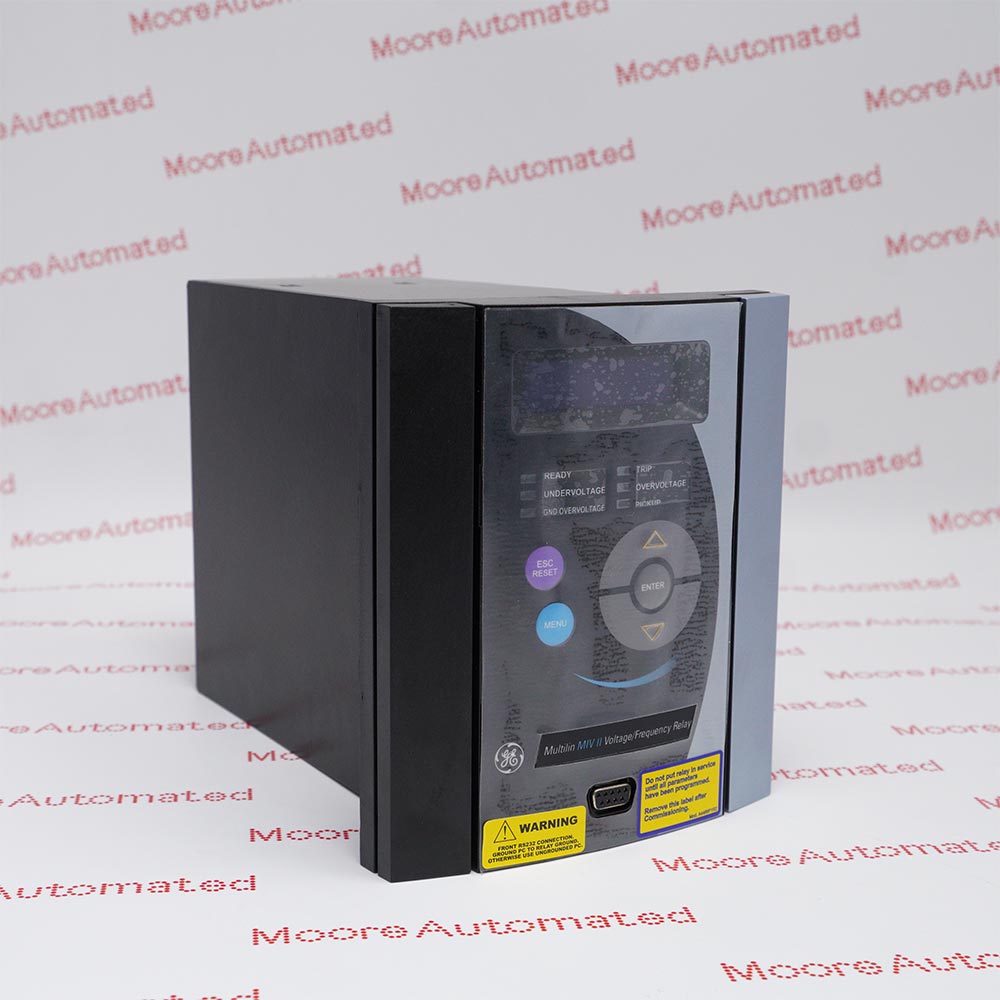

      GE Multilin MIV II 1000 digital voltage protection relay

      MIVII1000E00HI00

      Spare Part Number

      PNMIVII1000E00HI00

      Product Information:

      GE Multilin MIV II 1000 digital voltage protection relay, model MIVII1000E00HI00. This configuration is intended for digital voltage protection and uses a withdrawable 1/4-rack design, a 2 × 16-character LCD, and front RS232 and rear RS485 Modbus RTU communication.

      Official GE Multilin MIV II documentation describes the family for voltage and frequency protection in automatic transfer systems, generators, motors, lines, and busbars. Verify settings, wiring, and any replacement selection against the manufacturer’s documentation and the installed system.

      • One-year warranty
      • Global shipping
      • Exact-model verification
      WhatsApp: +86 180 2077 6792 Email parts team
      01


      Model Verified

      Model, revision and nameplate reviewed
      02


      Email confirmation

      You will get an email confirming that we have received your enquiry
      03


      Dedicated Account Manager

      One of our team will be in touch to confirm your part(s) specification and condition
      04


      Your quote

      You will receive a comprehensive quote tailored to your specific needs
      Technical specifications for

      MIVII1000E00HI00

      0 TECHNICAL PARAMETERS
      • Manufacturer:
        General Electric
      • Product Category:
        General Automation
      • Spare Part Number:
        MIVII1000E00HI00
      • Estimated shipping dimensions:
        15.20 x 12.69 x 18.9 cm
      • Weight:
        2.7 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • Stock:
        10
      Ask for Quote
      WHAT HAPPENS NEXT?

      From enquiry to delivery

      Six clear steps show what information is required and what the written quotation will contain.
      • 01

        Find the product

        Search the part number or send an inquiry for obsolete, discontinued or hard-to-find parts.
      • 02

        Provide the details

        Share the exact part number, quantity, condition, revision, destination and any required certificates or photos.
      • 03

        Review the quotation

        Receive price, currency, condition, availability, warranty, lead time, shipping terms and quotation validity in writing.
      • 04

        Confirm the order

        Accept the quotation in writing and complete the required payment before shipment.
      • 05

        Pay by bank transfer

        Pay the full invoiced amount by bank wire in RMB/CNY, GBP, EUR or USD using the official invoice details.
      • 06

        Verify and dispatch

        The part is inspected, tested and securely packed before dispatch, with tracking provided after release.
      Request a Verified Quote
      BUYER INFORMATION

      Product condition level information

      Commercial details are confirmed in writing before payment.
      • 01

        Factory Sealed

        Unused product with the original factory seal intact; packaging age or storage marks may still be present.

        view
      • 02

        Original Pack

        Unused product in original manufacturer packaging that was not originally factory sealed.

        view
      • 03

        Factory New

        New and current product sourced through the manufacturer or authorized supply channel when expressly confirmed in the quotation.

        view

      Revisions

      Revision Part #

      Also known as

      MIVII1000 firmware 4.05
      GE Multilin release dated 2009-03-16. GE requires MII Setup 1.10 or later when loading firmware 4.01 or newer; verify the installed relay firmware before updating.
      Get Parts Quote
      GER-4795 Revision C
      MII Family MIFII and MIVII end-of-manufacturing notice, originally issued 2017-04-05 and revised for GE Vernova branding on 2025-11-15.
      Get Parts Quote

      Alternative Names

      MIVII 1000 E00 HI00 MIV II 1000 E00 HI00 MIVII-1000-E00-HI00

      Information

      Overview Manuals Hazardous Area Certifications Application Areas

      Overview

      MIVII1000E00HI00 belongs to the GE Multilin M II family and provides digital voltage protection for automatic-transfer systems, generators, motors, lines and busbars. The relay combines configurable logic, two setting groups, local display and keypad operation, event recording, oscillography, metering and serial communications in a drawout case.

      Manufacturer documentation

      Applicable GE manufacturer records include the MIV II Voltage/Frequency Protection System brochure (publication 090810-v7), the MIV II product resources, and end-of-manufacturing notice GER-4795 Revision C. No external PDF has been copied, rebranded or uploaded to this page.

      Hazardous Area Certifications

      The cited GE MIV II material does not publish an ATEX, IECEx or other hazardous-area approval for this order code. It lists legacy product approvals including UL 508 and CNL C22.2. Do not install the relay as hazardous-location equipment unless the exact product marking and an applicable manufacturer certificate are confirmed.

      Key Features

      • Configurable voltage and/or frequency protection.
      • 24-event record and analog/digital oscillography.
      • Modbus RTU communications, configurable logic and digital I/O.
      • EnerVista software compatibility and two setting groups.

      Engineering & Compatibility

      GE Vernova 的 MIV II 官方资料列出 AC/DC 电源、前置隔离 RS232、后置 RS485 Modbus RTU（最高 19,200 bps）、2 × 16 字符 LCD、两组整定值和 EnerVista 软件兼容性。安装或替代前必须核对电源、互感器接线、通信参数、固件/软件、跳闸逻辑及现场系统要求；制造商未确认的配置不视为直接替换。

      Application Areas

      GE Multilin 的官方 MIV II 资料将该系列用于 automatic transfer systems、lines、busbars，以及包括 generators、motors 和 transformers 在内的电气设备保护。具体仪用互感器接线、系统频率、跳闸逻辑和保护整定必须按制造商资料与现场系统确认。

      Technical notes

      GE Vernova's official MIV II brochure lists configurable voltage/frequency protection, 24-event recording, analog/digital oscillography, Modbus RTU communications, configurable logic, digital I/O, front RS232/rear RS485 ports and EnerVista compatibility. Configuration-specific values not stated in the official family brochure are not inferred.
      PRODUCT & ORDER FAQS

      Questions buyers ask about MIVII1000E00HI00

      • What is MIVII1000E00HI00?

        This exact catalog number is an MIV II product record. GE Vernova's official MIV II brochure identifies the MIV II family as a digital voltage and frequency relay; the brochure does not decode every option field in this exact catalog number.

      • Which protection functions does the MIV II family provide?

        GE's official brochure lists three-phase overvoltage and undervoltage, ground overvoltage, voltage unbalance, overfrequency and underfrequency functions, including four independent time-delay phase under/overvoltage elements, two fixed-time ground-overvoltage elements and four frequency-protection units.

      • Does the MIV II record event data?

        Yes. GE specifies a 24-event record and analog/digital oscillography with 24 cycles sampled at 8 samples per cycle.

      • Which communications ports are listed for MIV II?

        GE lists a front RS232 port and a rear RS485 port using Modbus RTU, with communications up to 19,200 bps.

      • What local user interface is specified?

        GE specifies a 2 × 16 character LCD display and six LED indicators, four of which are configurable in function and color.

      • Can MIV II logic and I/O be configured?

        Yes. The official brochure lists configurable logic, curves, digital inputs and outputs, and LEDs.

      • Is EnerVista software supported?

        Yes. GE identifies MIV II as EnerVista-compatible and lists EnerVista software among its user-interface and configuration tools.

      • What is the lifecycle status of MIVII1000E00HI00?

        GE Vernova's official MII-family end-of-manufacturing notice includes the MIVII family. The existing lifecycle record states that manufacturing and supply ended on 5 April 2017 and that 1 October 2018 was the last order date; alternatives require engineering migration review, not automatic substitution.
      All FAQ
      MORE PARTS IN THE SAME PROJECT?

      Search another part number

      Use the exact manufacturer number where possible.
      • Please try to be as accurate as possible with your search.
      • We can quote you on 1000s of specialist parts, even if they are not listed on our website.
      • We can't find any results for “”.
        SEE MORE
          SEE PRODUCTS IN SEARCH PAGE ()
          WHY BUYERS WORK WITH MOORE AUTOMATED

          Clear checks before you commit

          Product-specific verification and written commercial details help purchasing and maintenance teams reduce mismatch risk.

          • Pre-shipment inspection

            Products are inspected before dispatch to verify model, condition and applicable specifications.

          • Documentation available

            Product photos, packaging photos, certificates and datasheets can be provided when available.

          • Clear commercial terms

            Condition, warranty, lead time, included items and shipping terms are stated clearly in writing.

          • 20+ years of experience

            Over 20 years of experience in industrial automation and hard-to-source legacy parts.

          • Product Lifecycle Stage

            Discontinued (Legacy Product)

            GE announced discontinuation of manufacturing and supply for the MIVII family on 5 April 2017. The official last order date was 1 October 2018. GE lists P94V or 350 relays as alternatives. These alternatives require an engineering migration review and are not presented as automatic drop-in replacements.
