Features:
- Number of channels: Provides 8, single-ended for the verified control, monitoring or diagnostic duties assigned to 8102-HO-IP.
- Nominal signal range (span): The documented 8-channel analog output module specification is 4 to 20 mA; verify it against the supplied nameplate before installation.
- Full signal range: The documented 8-channel analog output module specification is 1 to 23 mA; verify it against the supplied nameplate before installation.

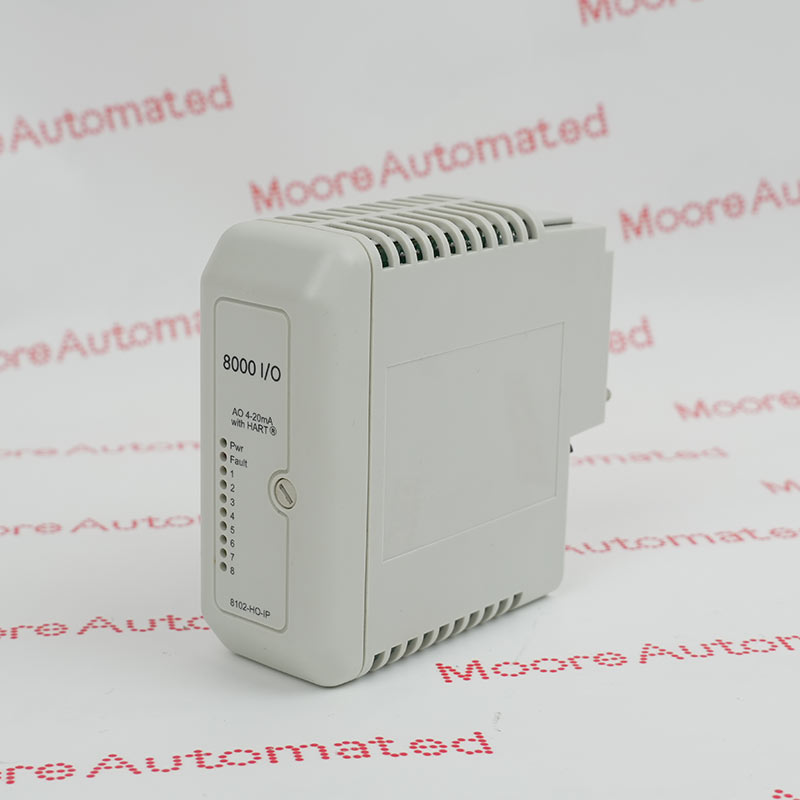

The 8102-HO-IP General Electric 8-channel analog output module plays a defined role in industrial automation and converts documented controller commands into the assigned field-output actions within the GE PAC8000 platform. Its documented execution helps the control system maintain dependable operation while reducing the risk of mismatched connectors, channel assignments, ratings and hardware revisions during maintenance.
Before installing 8102-HO-IP, compare the complete product label, terminal or connector arrangement, paired assemblies, firmware or logic requirements and approved project records. After replacement, review diagnostics and function-test every affected control, protection, communication or field-signal path before returning the equipment to service.
The 8102-HO-IP General Electric 8-channel Analog Output Module is identified as Active / Available from OEM. Current availability, revision and supplied scope are confirmed in the written quotation.
General Electric 8102-HO-IP documentation and reference links.
Important Notice: The linked information must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement.

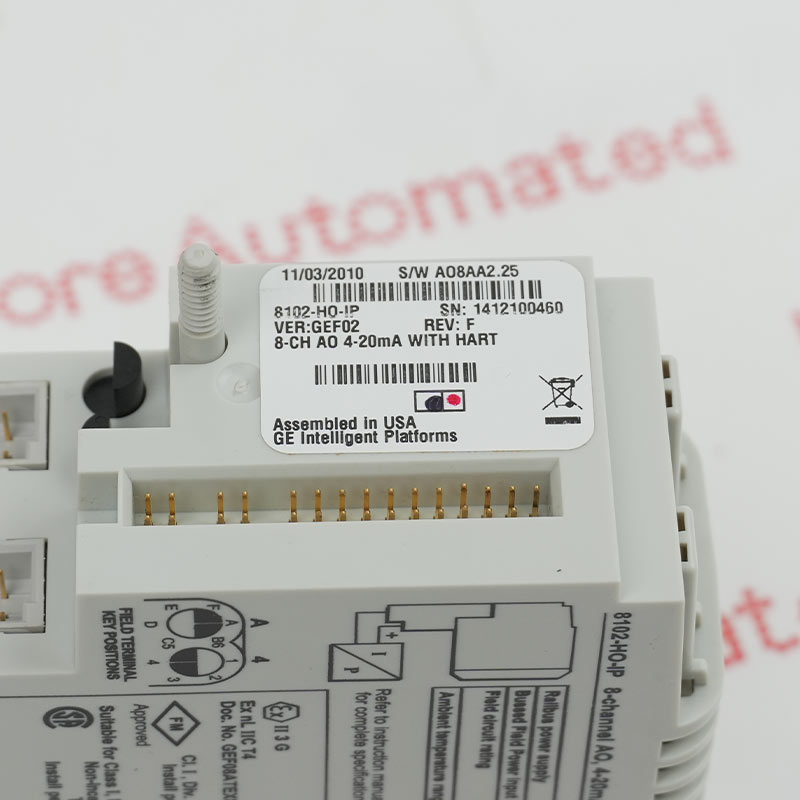

Verify that the supplied item is marked 8102-HO-IP and that its 8-channel analog output module form, connectors and revision agree with the approved GE PAC8000 receiving record.
For 8102-HO-IP, state the required condition, quantity, installed position, connected assemblies and document requirements in the written enquiry.
Apply only parameters supported by the exact 8102-HO-IP record or a documented family source. Do not infer electrical ratings or interchangeability from appearance.
