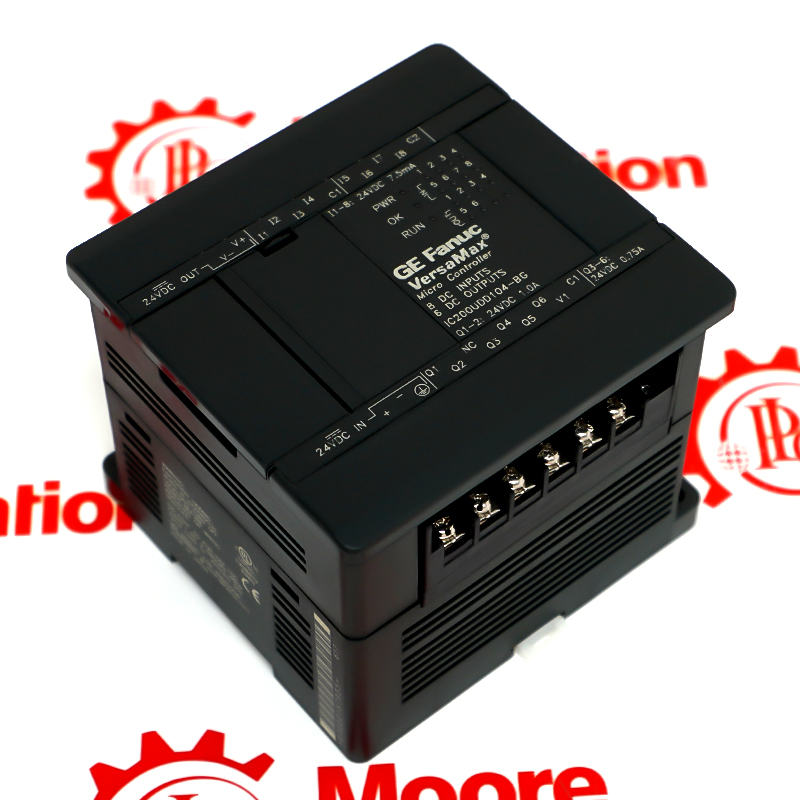

IC200UDD104 is a GE 14 point plc,(8) 24vdc in, (6) 24vdc out (2) 1.0 a, (4) 0.5a, 24vdc po wer supply used within the GE programmable control platform. It provides the specified 14 point plc,(8) 24vdc in, (6) 24vdc out (2) 1.0 a, (4) 0.5a, 24vdc po wer supply function while retaining the complete order code, hardware execution and receiving-system compatibility during replacement. Its documented physical i/o maximum is 126.

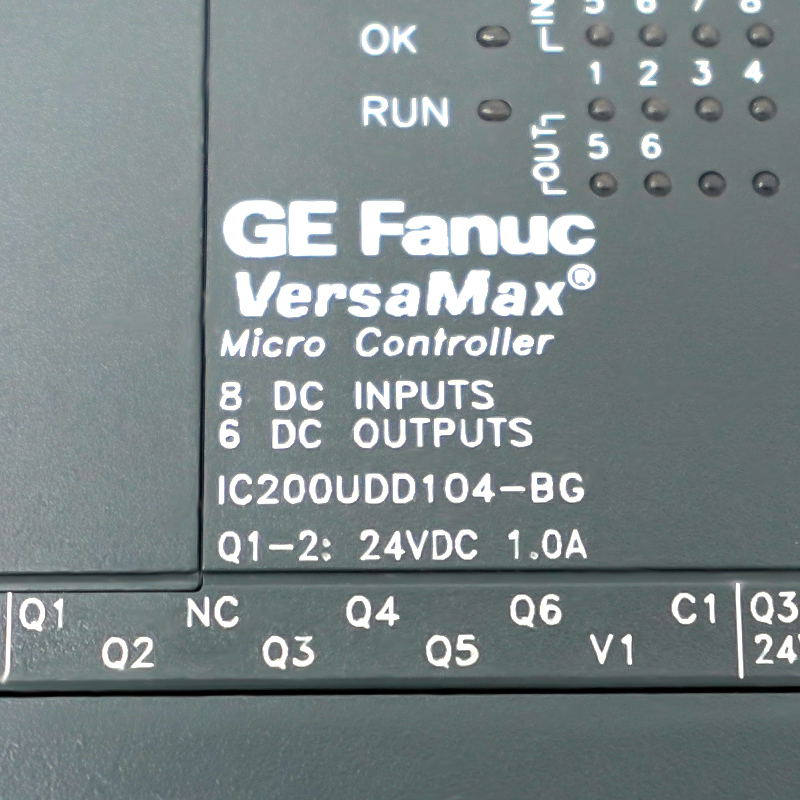

Verify that the supplied item is marked IC200UDD104 and that its 14 point plc,(8) 24vdc in, (6) 24vdc out (2) 1.0 a, (4) 0.5a, 24vdc po wer supply form, connectors and revision agree with the approved GE VersaMax receiving record.
For IC200UDD104, state the required condition, quantity, installed position, connected assemblies and document requirements in the written enquiry.
Apply only parameters supported by the exact IC200UDD104 record or a documented family source. Do not infer electrical ratings or interchangeability from appearance.
IC200UDD104 technical scope: Physical I/O Maximum: 126; User Program Logic Memory (Words): 9 K; Registers (Words): 256; Power Voltage: 24 VDC; Input Power Supply Rating: 4 Watts.
Use these values only for the listed hardware execution and verify the supplied label before installation.
Match IC200UDD104 to the approved GE VersaMax receiving position, connector or terminal arrangement and configuration record.
After power restoration, review diagnostics and test the affected 14 point plc,(8) 24vdc in, (6) 24vdc out (2) 1.0 a, (4) 0.5a, 24vdc po wer supply path.
Obsolete/Discontinued by OEM
IC200UDD104 is a General Electric 14 point plc,(8) 24vdc in, (6) 24vdc out (2) 1.0 a, (4) 0.5a, 24vdc po wer supply associated with the GE VersaMax platform. It supports the documented automation function assigned to its installed module, rack or cabinet position. Correct selection depends on the complete model code, connector or terminal arrangement, hardware revision and receiving-system configuration. Before replacement, compare the original product label, installed slot or cabinet reference, connected assemblies and approved project records. After installation, review system diagnostics and function-test every affected channel, control path, protection function or communication link before returning the equipment to service.
