Features:
- Eight safety-related analog input channels.
- Supports documented voltage or current signal applications.
- Channel range, wiring and validated scaling must be preserved.

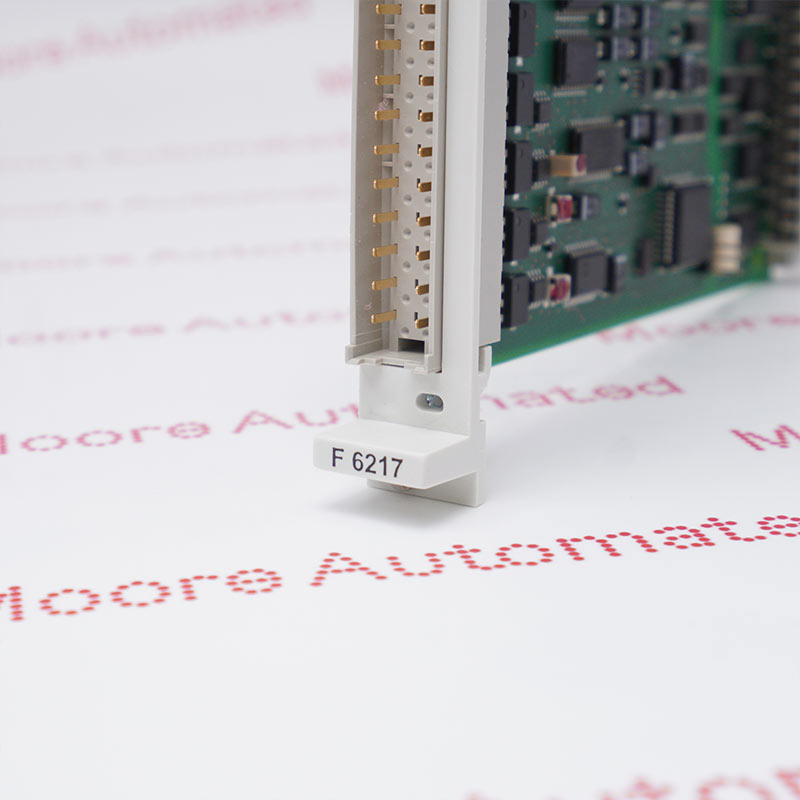

F6217 is a HIMA safety-related eight-channel analog input module used to acquire voltage or current signals in a documented safety control system. Each channel must remain matched to the field transmitter, signal range, wiring, rack location and validated application scaling used by the installed protection function.
Confirm F6217, the HIMA rack and slot, eight assigned channels, voltage or current range, field termination, hardware revision and safety application before replacement. verify power and diagnostics, inject representative values and confirm channel scaling, limit behavior and safety-logic response before release.
Official source boundary: Use the exact English manufacturer document and installed project record for compatibility decisions.
F6217 technical documentation and verified Moore Automated resources.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Confirm transmitter identity, terminal number, range and scaling for all eight channels.
Preserve polarity, engineering units, limits and the validated application assignment.
Apply representative signals and verify diagnostics, displayed values and safety-logic response.
