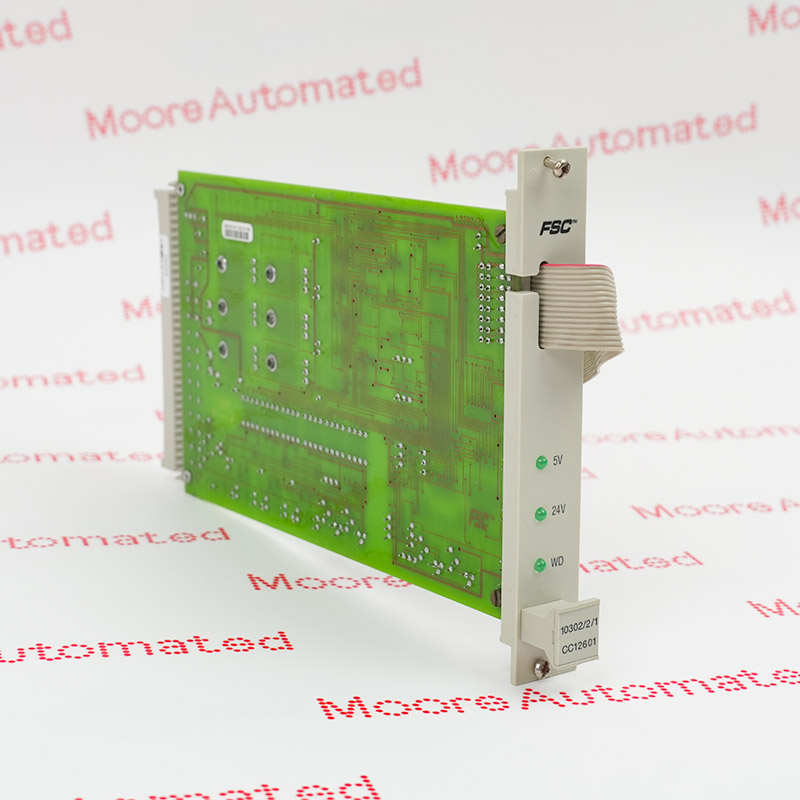

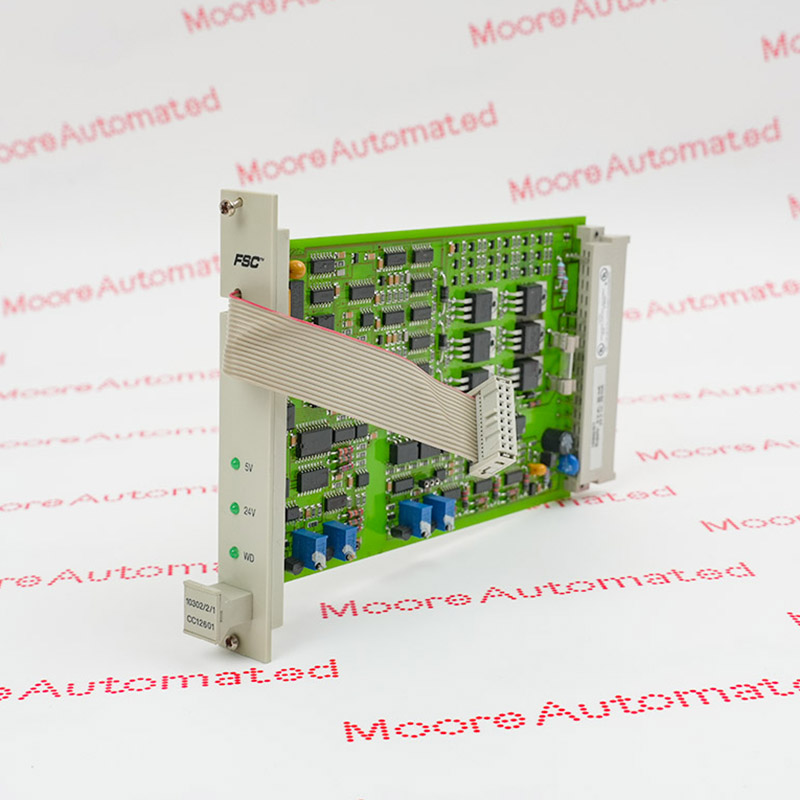

      Watchdog Repeater (WDR) Module
      In Stock

      Product Information:

      Watchdog repeater (WDR)

      monitors the 5 Vdc and 24 Vdc

      supplied to the I/O modules

      watchdog repeater is required if

      the required watchdog current

      exceeds 900 mA

      Warranty Policy
      We provide 1 year warranty for all remaining parts.
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      Return Notice
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
      Shiping Mode
      Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
      Parts Availability
      Moore automated offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
      Expand All
      Collapse all

      Technical specifications for 10302/2/1

      • Manufacturer:
        Honeywell
      • Product Category:
        DCS System
      • Spare Part Number:
        10302/2/1 12600
      • Estimated shipping dimensions:
        3.0 x 12.7 x 20.3 cm
      • Weight:
        0.3 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • Space requirements:
        4 TE, 3 HE (= 4 HP, 3U)
      • Current:
        0.1 mA
      • Power requirements:

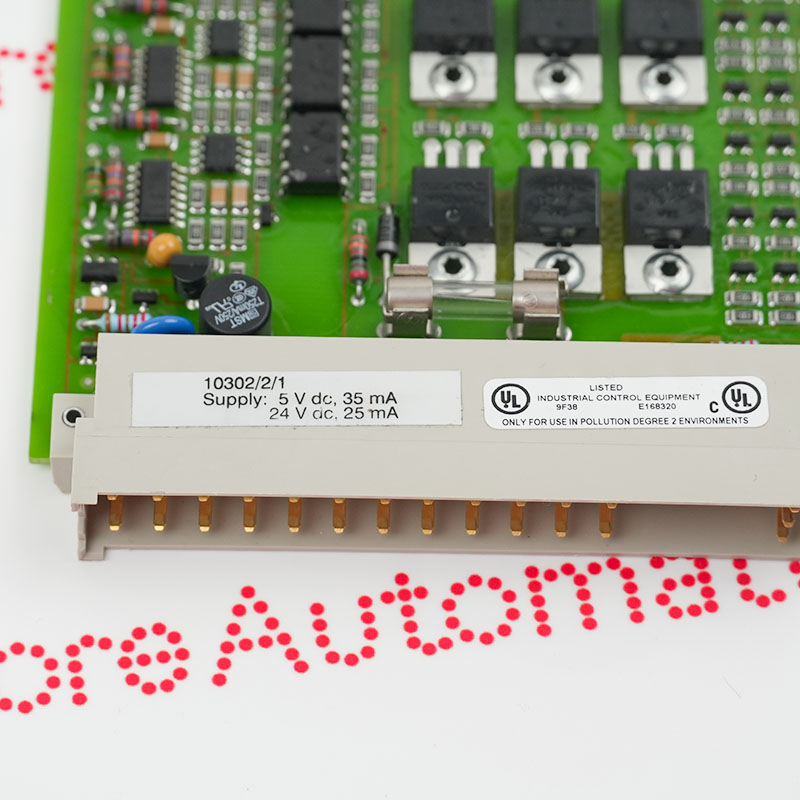

        5 Vdc 35 mA or 24 Vdc 25 mA
      • Approvals:
        CE, TUV, UL
      • Product Type:
        Watchdog Repeater (WDR)
      • Category Series:
        Honeywell FSC Series
      • Stock:
        30
      Ask for Quote

      Information

      Overview Manuals Principle Primary Applications

      Features:

      • Watchdog Repeater (WDR) Module
      • Monitors the 5 Vdc and 24 Vdc supplied to the I/O modules
      • Watchdog repeater is required if the required watchdog current exceeds 900 mA
      The watchdog repeater is used to monitor the 5V and 24V DC power supply for I/O modules. The watchdog output of the watchdog repeater connects to the watchdog input of the monitored power supply (5V and/or 24V DC) output module.The watchdog repeater requires a horizontal bus connection. This means that space must be reserved in the I/O rack (positions 1, 2, 11-18).

      The watchdog repeater must always be placed in the I/O section containing the output module it monitors. This means that in configurations with multiple (redundant) I/O sections, the watchdog repeater must not be installed in a way that allows it to control “other” I/O sections.

      The 10302/2/1 Honeywell Watchdog Repeater (WDR) Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
      Honeywell 10302/2/1 Watchdog Repeater (WDR) Module Manuals(Datasheets), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      The watchdog repeater can be replaced while powered on, but the central unit will be turned off; if used in a configuration with redundant central units and non-redundant I/O, both central units will be turned off.
      Safety-Critical Monitoring: As a safety mechanism, it monitors system failures and restarts the system upon detection.
      Multi-Power Supply Unit Configuration: In setups with multiple power supply units (e.g., power supply units 2, 3, or 4), this configuration is required for each subsequent 24Vdc to 5Vdc unit.
      Redundant I/O System: Crucial in configurations using a mix of redundant and non-redundant I/O to create watchdog outputs for non-redundant modules.
      Voltage Failure Protection: This protection is required when the 24Vdc supply voltage may exceed 31.0Vdc or the watchdog current exceeds 900mA.
