Features:
- Analog Output 16 Processor (16 Outputs)
- Designed for high-performance process control
- Converts digital commands from the controller into stable 4–20 mA signals to drive field instruments
It primarily converts digital control commands from controllers into proportional analog output signals to drive field devices such as valves, actuators, and frequency converters. This enables precise regulation of critical process variables such as flow rate, pressure, temperature, and level in industrial applications.
It supports channel-level control and diagnostics, enabling continuous monitoring of output performance and early fault detection. Its robust design ensures stable operation even in the presence of electrical noise, vibration, and harsh environmental conditions, making it suitable for critical automation infrastructure.

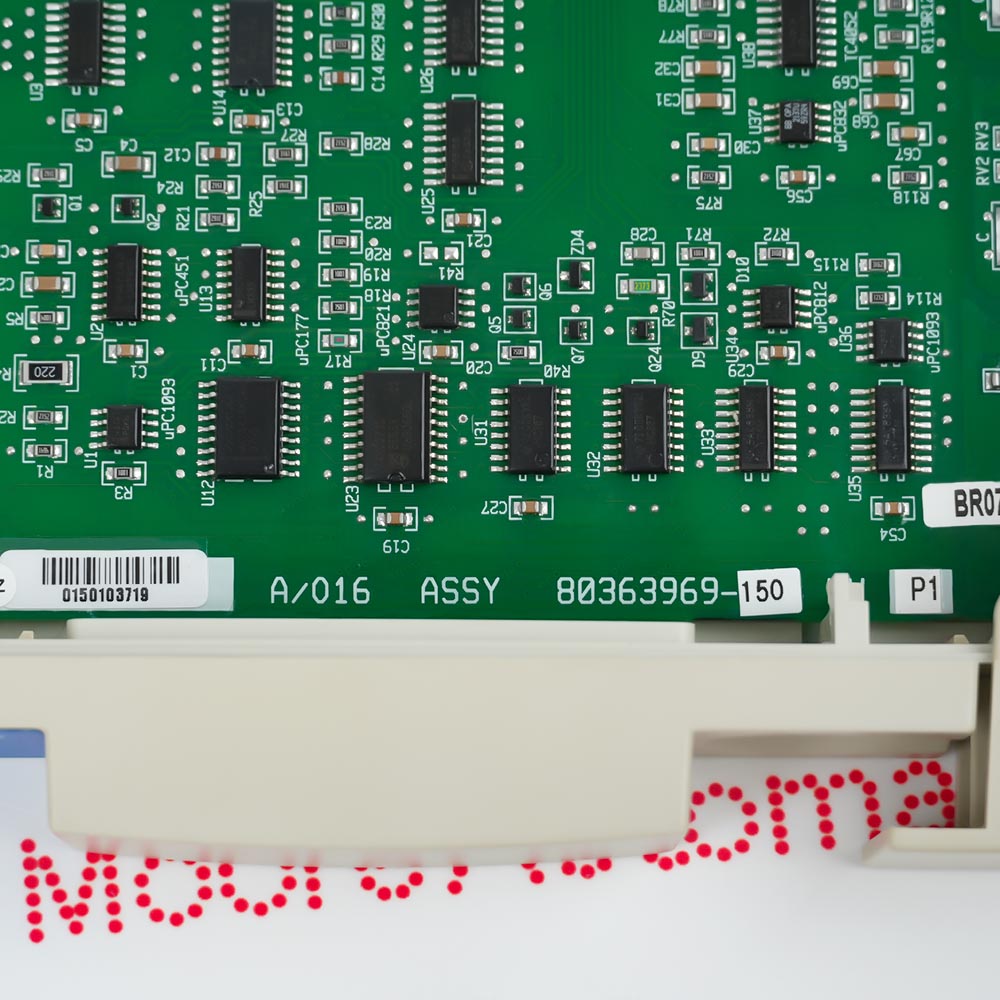

The MC-PAOY22 80363969-150 Honeywell Analog Output Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell MC-PAOY22 80363969-150 Analog Output Module Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
It receives digital control data from automation systems, processes it internally, and converts it into precise analog output signals via high-resolution conversion circuitry. These output signals are then transmitted to field devices to control physical process parameters in real time. Continuous feedback and internal diagnostics ensure that the output signals remain accurate, stable, and meet system control requirements.
Actuator and Valve Control: Precisely positions control valves, dampers, and actuators in proportional control loops.
Variable Frequency Drives: Provides speed reference signals for industrial motor drives.
Industry Applications: Widely used in demanding industries such as oil and gas, chemical, power generation, and water treatment.
This module belongs to the High Performance Process Manager (HPM) and Experion I/O series. It typically plugs into I/O Terminal Components (IOTAs), such as the MU-TAOY22 or MU-TAOY52, simplifying field cabling and providing redundancy without the need for external cables.
