Features:
- CA-H200C is identified by image sensor Color CMOS, 7x/16x high-speed readout within the documented KEYENCE vision-system cameras configuration.
- The official specification gives valid pixels as 1600 x 1200 in 2 MP mode, which must be retained during selection.
- Commissioning must also preserve alternate mode (1024 x 960 in 1 MP mode) and the stated connection limits.

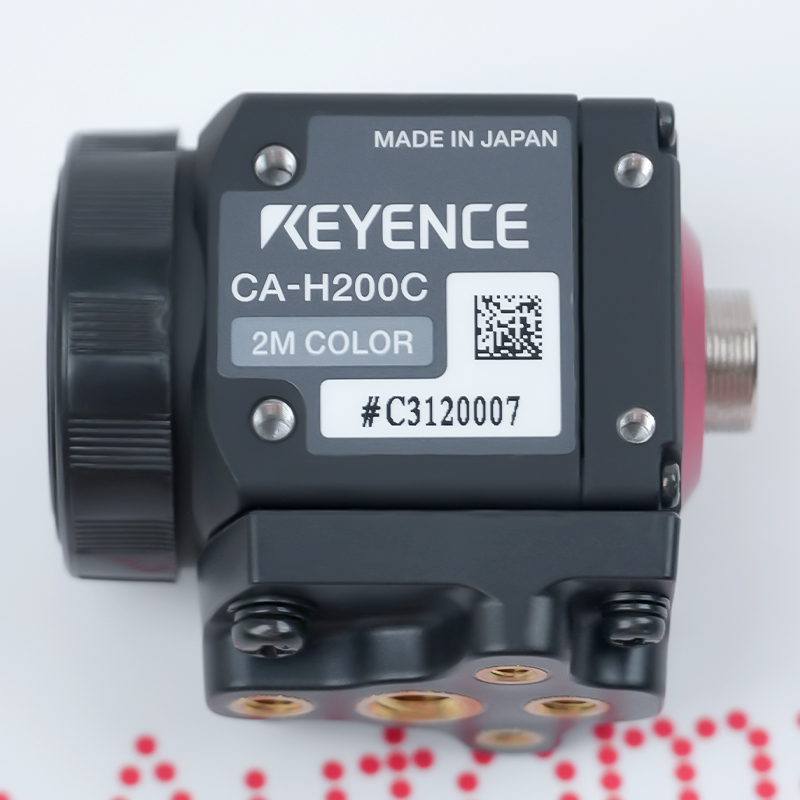

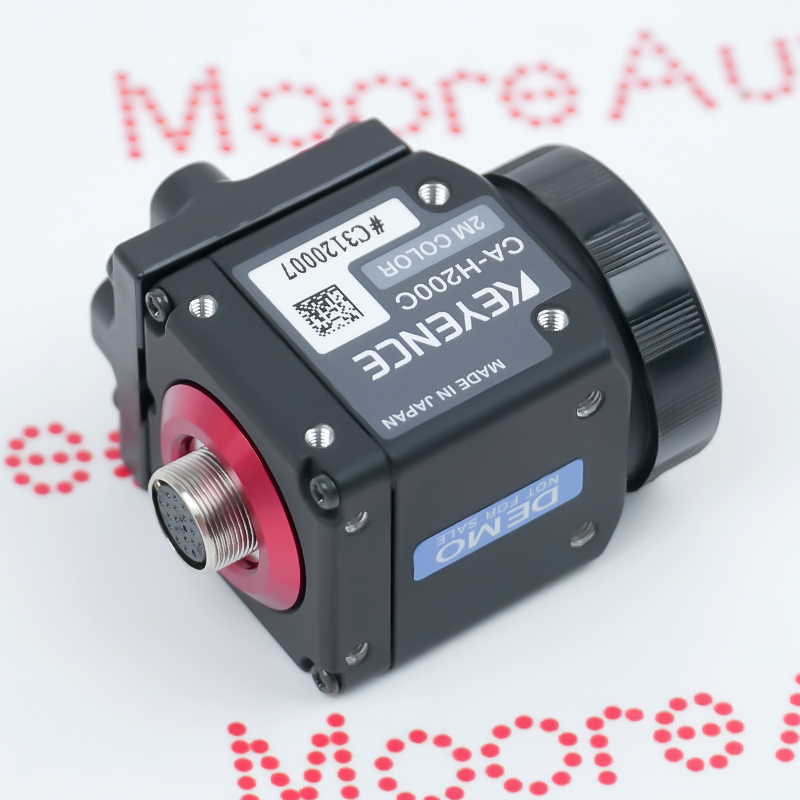

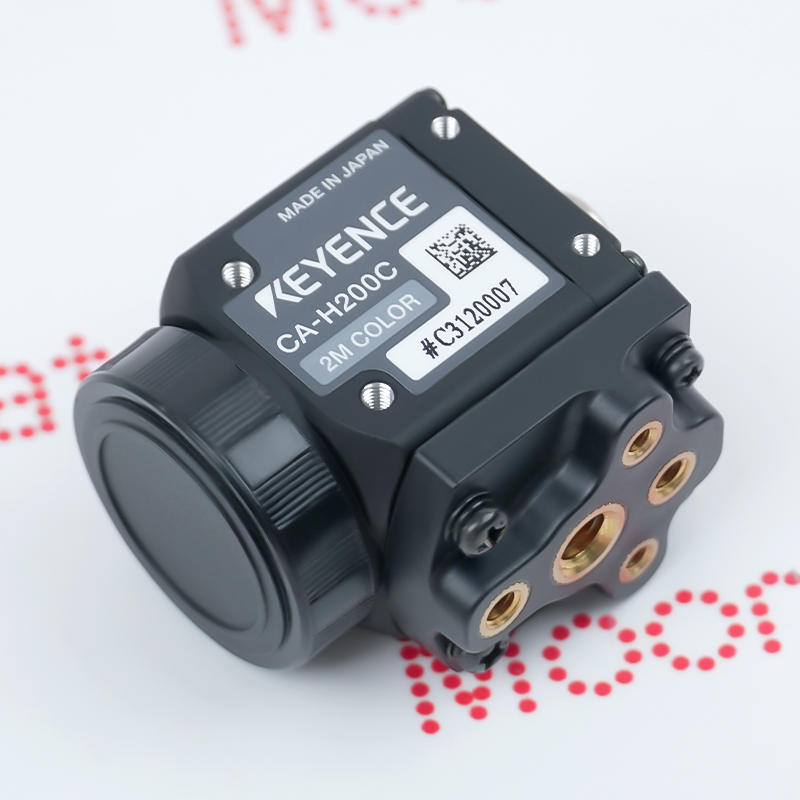

A 16x-speed environment-resistant color CMOS camera for KEYENCE vision systems. It provides 1600 x 1200 valid pixels in 2-megapixel mode, progressive scanning, digital serial transfer, C-mount optics and IP64 performance when used with the specified lens and cable. Selection must preserve the complete label identity, connected-equipment compatibility and manufacturer installation limits.
Manufacturer reference: official KEYENCE vision-system cameras documentation.
Moore Automated supports exact-item verification and spare-part enquiries for CA-H200C.
No public single-model PDF was located for CA-H200C; use the verified related internal resource before requesting exact documentation, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Confirm the complete CA-H200C identity and compare image sensor, valid pixels and alternate mode with the installed design before approving a replacement.
Use with a KEYENCE controller that explicitly supports CA-H200C and the selected 7x or 16x transfer mode. Confirm C-mount lens coverage, environment-resistant lens, cable type and project resolution.
Fit a suitable C-mount lens, use the KEYENCE-specified IP64 lens and environment-resistant cable where sealing is required, set exposure and transfer mode, then recalibrate all inspection tools.
