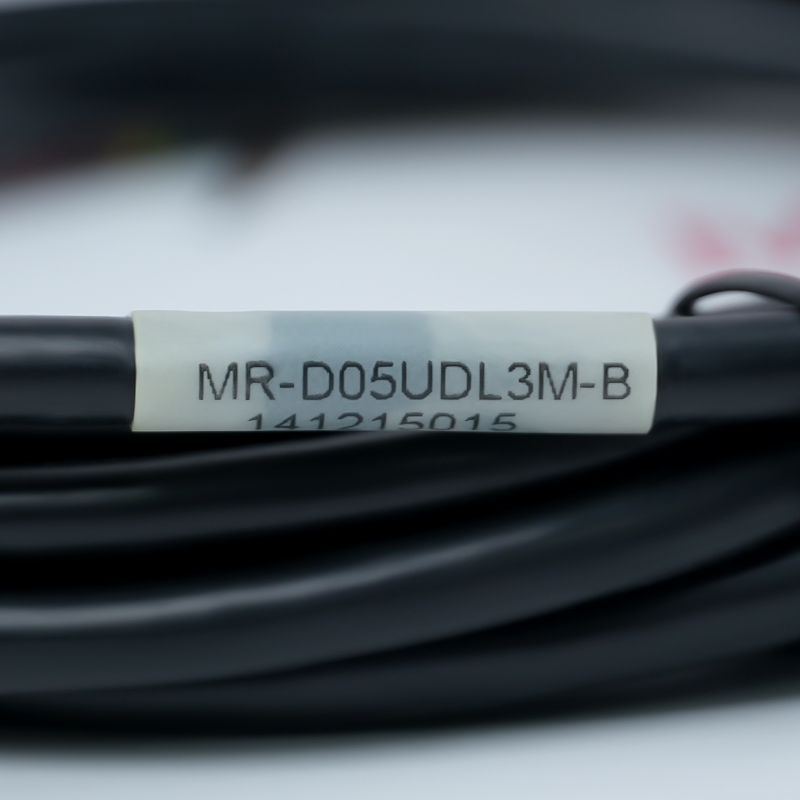

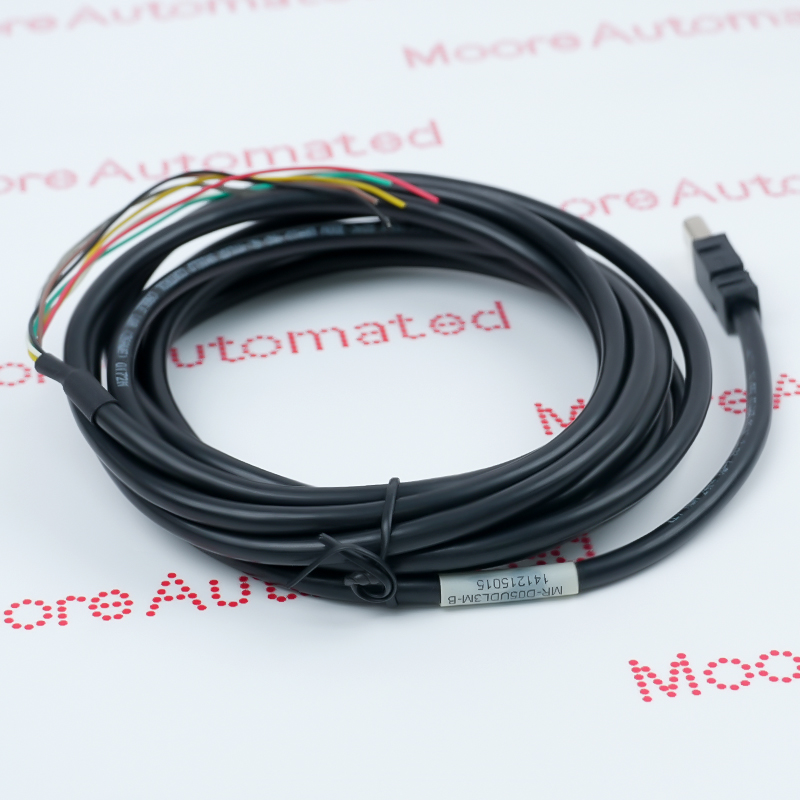

      Mitsubishi MR-D05UDL3M-B
      Mitsubishi MR-D05UDL3M-B
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote

      MR-D05UDL3M-B

      3 m STO Cable for CN8
      In Stock
      Ships by Thursday, August 27
      Fast Shipping Available

      Product Information:

      Mitsubishi Electric MR-D05UDL3M-B is a 3 m STO cable used to connect external safety equipment to the CN8 connector of compatible MELSERVO drive units. It supports the Safe Torque Off circuit interface specified in Mitsubishi Electric servo-system documentation.

      MR-D05UDL3M-B has a standard cable outside diameter of 5.7 mm and uses the documented CN8 safety-signal arrangement. The cable carries STO1 and STO2 inputs together with TOFB1 and TOFB2 feedback outputs, their common terminals, and the specified shield connection.

      MR-D05UDL3M-B must be installed only after confirming the drive model, CN8 pin assignment, safety-circuit design, grounding, and connector retention. Mitsubishi Electric documentation specifies connector set 2069250-1 and identifies the cable as material number 227986.

      Warranty Policy
      We provide 1-year warranty for all remaining parts.
      The warranty period is 1-year warranty from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      Return Notice
      The warranty period is 1-year warranty from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
      Shipping Methods
      Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
      Parts Availability
      Moore Automated offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
      Expand All
      Collapse all

      Technical specifications for MR-D05UDL3M-B

      • Manufacturer:
        Mitsubishi
      • Product Category:
        General Automation
      • Spare Part Number:
        227986
      • Estimated shipping dimensions:
        300 x 0.57 x 0.57 cm
      • Weight:
        0.3 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        Japan
      • Place of shipment:
        Xiamen, Fujian, China
      • Product family:
        MELSERVO
      • Product type:
        STO cable
      • Model:
        MR-D05UDL3M-B
      • Material number:
        227986
      • Cable length:
        3 m
      • Standard cable OD:
        5.7 mm
      • Drive connector:
        CN8
      • Connector set:
        2069250-1 (TE Connectivity)
      • Application:
        External safety device to drive unit
      • Safety inputs:
        STO1, STO2
      • Feedback outputs:
        TOFB1, TOFB2
      • Common terminals:
        STOCOM, TOFCOM
      • Shielding:
        Shield/plate connection specified
      • Lifecycle:
        Production continued by Mitsubishi Electric
      • Stock:
        27
      Ask for Quote

      Alternative Names

      MR-D05UDL3M-B MR D05UDL3M B 227986 MR-D05UDL3M MR-D05UDL3M-B STO Cable MELSERVO MR-D05UDL3M-B

      Information

      Overview Manuals Cable Specifications Signal Assignment Installation Guidance

      Features:

      • Mitsubishi Electric MELSERVO STO cable
      • 3 m cable length
      • Standard cable outside diameter: 5.7 mm
      • CN8 connection for an external safety device
      • Dual STO inputs with safety feedback outputs
      The Mitsubishi Electric MR-D05UDL3M-B is a 3 m STO cable for connecting an external safety device to the CN8 connector of a compatible MELSERVO drive unit. It carries the two-channel Safe Torque Off circuit and its associated feedback signals in the arrangement documented by Mitsubishi Electric.

      The cable provides STOCOM, STO1, STO2, TOFB1, TOFB2 and TOFCOM conductors together with the specified shield connection. Before commissioning, verify the drive model, CN8 pin assignment, connector retention, grounding and complete safety-circuit design against the applicable Mitsubishi Electric manual.

      The MR-D05UDL3M-B Mitsubishi Electric STO cable remains in continued production according to the manufacturer compatibility documentation and may be supplied and supported by Moore Automated.
      Mitsubishi Electric MR-D05UDL3M-B STO Cable Manuals(Datasheets), Link Important Notice: Other accessories, manuals, cables, connectors, software and related items are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

      Cable Specifications:

      • Model: MR-D05UDL3M-B
      • Mitsubishi Electric material number: 227986
      • Product type: STO cable
      • Cable length: 3 m
      • Standard cable outside diameter: 5.7 mm
      • Connector set: 2069250-1
      MR-D05UDL3M-B is intended for the CN8 safety interface of compatible Mitsubishi Electric MELSERVO drive units. Use the complete drive manual to verify that the selected drive accepts this cable and connector configuration.

      Signal Assignment:

      • STOCOM: safety-input common
      • STO1: Safe Torque Off input channel 1
      • STO2: Safe Torque Off input channel 2
      • TOFB1: safety feedback output 1
      • TOFB2: safety feedback output 2
      • TOFCOM: feedback-output common
      The official wiring diagram also specifies the cable shield and plate connection. Maintain the documented conductor identification, channel separation and common-terminal arrangement when connecting the external safety device.

      Installation Guidance:

      • Confirm the drive supports the CN8 STO interface
      • Verify connector orientation and positive retention
      • Check STO and feedback pin assignments before wiring
      • Terminate the cable shield as documented
      • Validate the complete safety function before operation
      Disconnect power and follow the applicable Mitsubishi Electric servo-system safety procedure before installation. If the STO function is not used, install only the short-circuit connector specified for the drive; do not substitute unverified wiring or connectors.

      Technical notes

      MR-D05UDL3M-B is a 3 m Mitsubishi Electric MELSERVO STO cable for the CN8 safety interface. Its documented conductors provide STO1/STO2 inputs and TOFB1/TOFB2 feedback with common and shield connections; confirm the compatible drive manual and complete safety circuit before commissioning.

      • Product Lifecycle Stage
