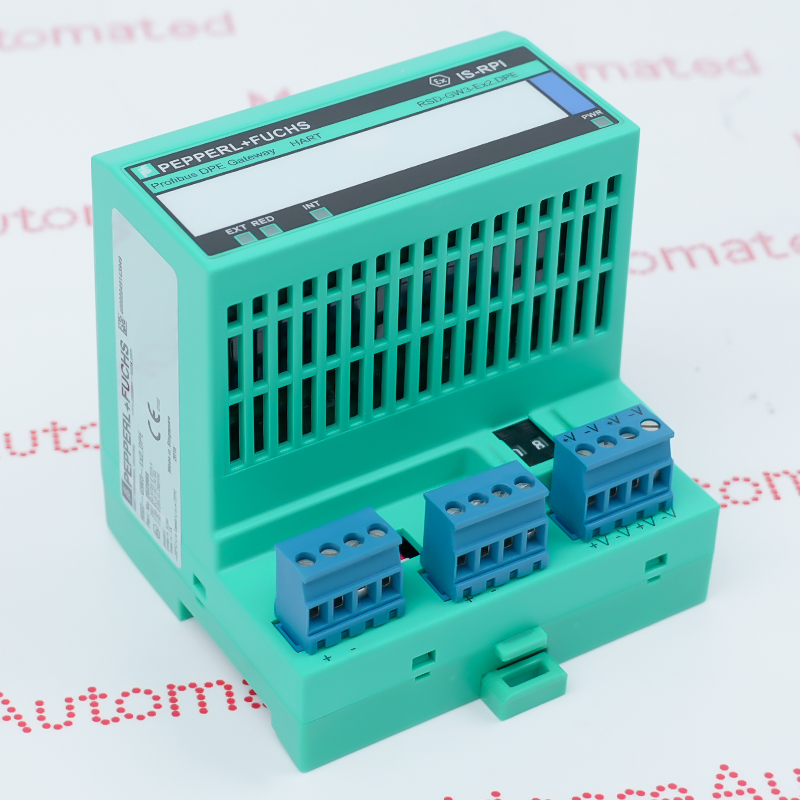

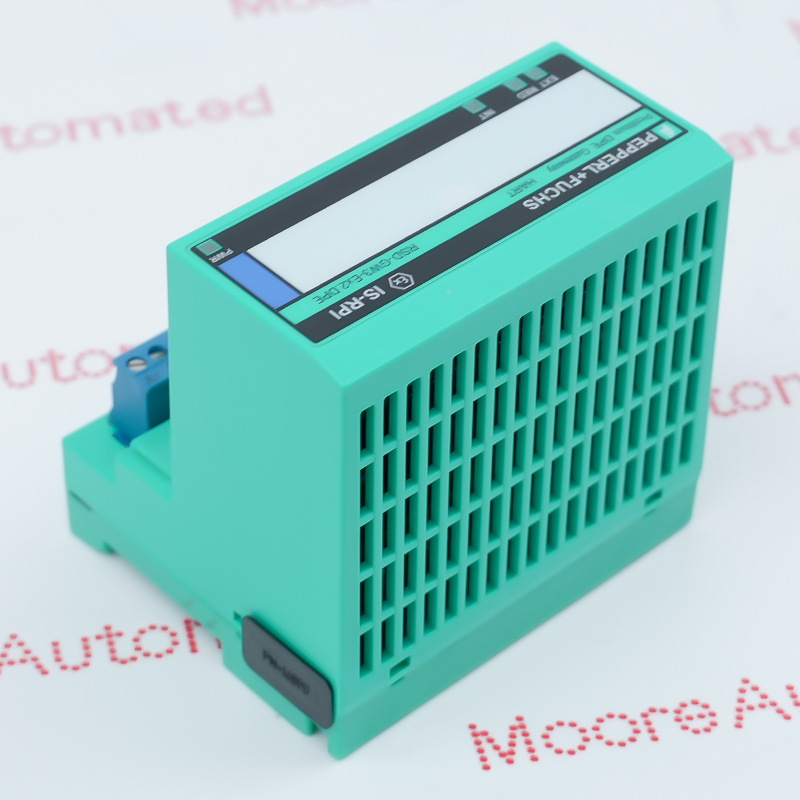

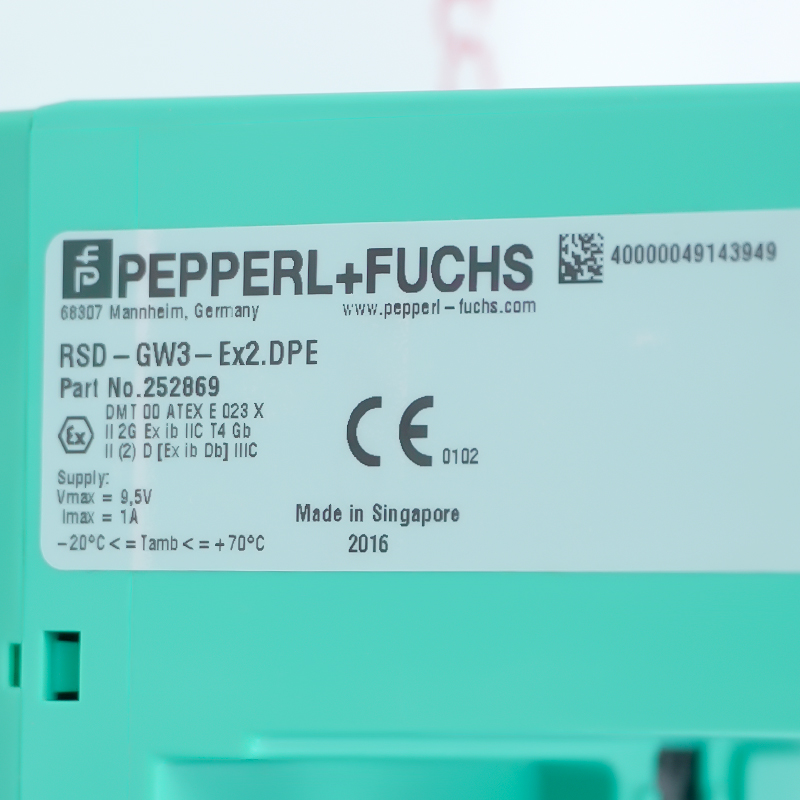

      Pepperl + Fuchs RSD-GW3-Ex2.DPE
      Pepperl + Fuchs RSD-GW3-Ex2.DPE

      • ISO 9001:2015 Certified

        Our quality management system covers sourcing,testing and dispatch

      • View Our Success Stories

        Real stories from real customer orders
      In Stock
      Ships by Friday, September 11
      Fast Shipping Available
      PROFIBUS DP V1 to HART gateway

      RSD-GW3-Ex2.DPE

      Product Information:

      A Pepperl+Fuchs gateway linking an intrinsically safe IS-RPI remote I/O backplane to a PROFIBUS DP V1 control network. It supports cyclic and acyclic data, HART transfer, media redundancy and up to eight I/O modules on the backplane, with a fieldbus interface designed for hazardous-area installation conditions.

      Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote
      • One-year warranty
      • Global shipping
      • Exact-model verification
      WhatsApp: +86 180 2077 6792 Email parts team
      01


      Model Verified

      Model, revision and nameplate reviewed
      02


      Email confirmation

      You will get an email confirming that we have received your enquiry
      03


      Dedicated Account Manager

      One of our team will be in touch to confirm your part(s) specification and condition
      04


      Your quote

      You will receive a comprehensive quote tailored to your specific needs
        • PRODUCT OVERVIEW

          What is this product?

          A Pepperl+Fuchs gateway linking an intrinsically safe IS-RPI remote I/O backplane to a PROFIBUS DP V1 control network. It supports cyclic and acyclic data, HART transfer, media redundancy and up to eight I/O modules on the backplane, with a fieldbus interface designed for hazardous-area installation conditions. Selection must preserve the complete label identity, connected-equipment compatibility and manufacturer installation limits.

          Source boundary

          Manufacturer reference: official documentation for IS-RPI remote I/O gateways.
        • APPLICATIONS

          Where it may be used

          Use this PROFIBUS DP V1 to HART gateway only where its documented configuration, interfaces and installation limits match the existing IS-RPI remote I/O gateways arrangement.

          IS-RPI network gateway

          Transfers cyclic I/O between a validated IS-RPI station and the PROFIBUS master.

          HART maintenance access

          Carries supported acyclic HART information through the DP V1 engineering path.

          Redundant fieldbus segment

          Supports documented media redundancy where the network architecture and approvals permit it.

          Hazardous cabinet retrofit

          Replaces an exact gateway after Ex markings, firmware and backplane modules are confirmed.
      Technical specifications for

      RSD-GW3-Ex2.DPE

      0 TECHNICAL PARAMETERS
      • Manufacturer:
        Pepperl + Fuchs
      • Product Category:
        General Automation
      • Host network:
        PROFIBUS DP V1
      • Field I/O platform:
        IS-RPI remote I/O
      • Maximum I/O modules:
        8 per backplane
      • DP data rate:
        Up to 1.5 Mbit/s
      • Fieldbus protection:
        Intrinsically safe EEx ib IIC
      • Hazardous-area use:
        Zone 1, 2 and 22 subject to certification conditions
      • HART transfer:
        Supported
      • Media redundancy:
        Supported
      • Hot swap:
        Permitted under documented zone conditions
      • Ambient temperature:
        -20 to +70 °C
      • Power dissipation:
        Approx. 8.0 W, 8.5 W maximum
      • Stock:
        13
      Ask for Quote
      WHAT HAPPENS NEXT?

      From enquiry to delivery

      Six clear steps show what information is required and what the written quotation will contain.
      • 01

        Find the product

        Search the part number or send an inquiry for obsolete, discontinued or hard-to-find parts.
      • 02

        Provide the details

        Share the exact part number, quantity, condition, revision, destination and any required certificates or photos.
      • 03

        Review the quotation

        Receive price, currency, condition, availability, warranty, lead time, shipping terms and quotation validity in writing.
      • 04

        Confirm the order

        Accept the quotation in writing and complete the required payment before shipment.
      • 05

        Pay by bank transfer

        Pay the full invoiced amount by bank wire in RMB/CNY, GBP, EUR or USD using the official invoice details.
      • 06

        Verify and dispatch

        The part is inspected, tested and securely packed before dispatch, with tracking provided after release.
      Request a Verified Quote
      BUYER INFORMATION

      Product condition level information

      Commercial details are confirmed in writing before payment.
      • 01

        Factory Sealed

        Unused product with the original factory seal intact; packaging age or storage marks may still be present.

        view
      • 02

        Original Pack

        Unused product in original manufacturer packaging that was not originally factory sealed.

        view
      • 03

        Factory New

        New and current product sourced through the manufacturer or authorized supply channel when expressly confirmed in the quotation.

        view

      Alternative Names

      RSD GW3 Ex2 DPE RSD-GW3-Ex2.DPE.ED IS-RPI PROFIBUS gateway Pepperl+Fuchs RSD-GW3-Ex2.DPE RSDGW3Ex2DPE

      Information

      Overview Manuals DP Address / GSD Ex Installation HART Validation

      Features:

      • The gateway couples an intrinsically safe IS-RPI backplane to PROFIBUS DP V1 at rates up to 1.5 Mbit/s.
      • Acyclic HART data and media redundancy extend diagnostics and availability for supported field instruments.
      • Hazardous-area certification, hot-swap provisions and an eight-module backplane limit define the engineered installation boundary.
      A Pepperl+Fuchs gateway linking an intrinsically safe IS-RPI remote I/O backplane to a PROFIBUS DP V1 control network. It supports cyclic and acyclic data, HART transfer, media redundancy and up to eight I/O modules on the backplane, with a fieldbus interface designed for hazardous-area installation conditions. Selection must preserve the complete label identity, connected-equipment compatibility and manufacturer installation limits.

      Manufacturer reference: official IS-RPI remote I/O gateways documentation.

      Moore Automated supports exact-item verification and spare-part enquiries for RSD-GW3-Ex2.DPE.
      Pepperl+Fuchs RSD-GW3-Ex2.DPE official manufacturer document excerpt (PDF), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

      Record the existing node address, baud rate, GSD/device profile and master configuration before exchanging the gateway.

      Match the approval markings, fieldbus power, grounding and control-drawing requirements for the classified area.

      After cyclic I/O is stable, verify the acyclic path and confirm that expected HART variables and diagnostics reach the host.

      Technical notes

      A Pepperl+Fuchs gateway linking an intrinsically safe IS-RPI remote I/O backplane to a PROFIBUS DP V1 control network. It supports cyclic and acyclic data, HART transfer, media redundancy and up to eight I/O modules on the backplane, with a fieldbus interface designed for hazardous-area installation conditions. Confirm the full RSD-GW3-Ex2.DPE label, firmware, PROFIBUS address and approval markings. Check whether the installed order code includes an additional suffix such as .ED and record the backplane and I/O module list. Follow the control drawing and hazardous-area rules, isolate or hot-swap only under documented conditions, set a unique PROFIBUS address, preserve shield/earth connections and download the validated configuration before checking cyclic, acyclic and HART data.

      Exact Item Configuration

      Confirm the full RSD-GW3-Ex2.DPE label, firmware, PROFIBUS address and approval markings. Check whether the installed order code includes an additional suffix such as .ED and record the backplane and I/O module list.

      Quotation Input Checklist

      For quotation, provide quantity, the complete RSD-GW3-Ex2.DPE label, clear nameplate and connector photographs, connected equipment, receiving country and required delivery date. Include project, firmware or hardware-revision records where applicable so Moore Automated can match and quote the exact item.

      Customs & Shipping Data

      • Packed shipping dimensions
        Confirmed after final packing
        Approx. 14.2 x 11.0 x 7.5 cm
      • Packed shipping weight
        Confirmed after final packing
        Confirmed from actual-item weighing
      • HS / customs code
        Not officially confirmed
        Verify for the destination before shipment.
      • Country of origin
        Not officially confirmed
        Verify from the item nameplate or COO.
      • Ships from
        Xiamen, Fujian, China
        Dispatch location is confirmed in the written quotation.
      • Customs documents
        Confirmed for the destination
        Available document scope is stated in the written quotation.
      PRODUCT & ORDER FAQS

      Questions buyers ask about RSD-GW3-Ex2.DPE

      • How can I confirm that I need the exact RSD-GW3-Ex2.DPE configuration?

        Confirm the full RSD-GW3-Ex2.DPE label, firmware, PROFIBUS address and approval markings. Check whether the installed order code includes an additional suffix such as .ED and record the backplane and I/O module list.

      • Can I use RSD-GW3-Ex2.DPE with my existing equipment?

        The host must support the documented PROFIBUS DP V1 configuration and device description. Match the IS-RPI backplane, up to eight installed modules, hazardous-area certificates, fieldbus power, HART requirements and redundancy topology.

      • Can you check a purchase-ready discount for my RSD-GW3-Ex2.DPE order?

        Yes. Send the required quantity, delivery country and expected purchase date. Moore Automated will check the exact-model stock position and apply for the best purchase-ready discount available, without requiring you to propose a target price.

      • Which two ratings should I compare before selecting RSD-GW3-Ex2.DPE?

        Compare host network (PROFIBUS DP V1) and field i/o platform (IS-RPI remote I/O). Both values must fit the connected hardware and the original design record; matching only the physical appearance is insufficient.

      • What should I check before installing RSD-GW3-Ex2.DPE?

        Follow the control drawing and hazardous-area rules, isolate or hot-swap only under documented conditions, set a unique PROFIBUS address, preserve shield/earth connections and download the validated configuration before checking cyclic, acyclic and HART data.

      • Are you an authorized agent for the RSD-GW3-Ex2.DPE manufacturer?

        Moore Automated is an independent supplier rather than an authorized manufacturer agent. The quotation identifies the exact original RSD-GW3-Ex2.DPE, and Moore provides independent verification, competitive pricing and a one-year warranty.

      • How do maximum i/o modules and dp data rate affect my RSD-GW3-Ex2.DPE replacement?

        For this item, maximum i/o modules is 8 per backplane, while dp data rate is Up to 1.5 Mbit/s. Verify both against the current system configuration before approving a replacement.

      • What evidence can I request to verify the RSD-GW3-Ex2.DPE held in stock?

        Request a current photograph of the complete label and the relevant connector or terminal face. The image should show the complete gateway suffix, firmware, PROFIBUS address, Ex markings and IS-RPI module lineup so the quoted unit can be compared with the installed item.
      All FAQ
      MORE PARTS IN THE SAME PROJECT?

      Search another part number

      Use the exact manufacturer number where possible.
      • Please try to be as accurate as possible with your search.
      • We can quote you on 1000s of specialist parts, even if they are not listed on our website.
      • We can't find any results for “”.
        SEE MORE
          SEE PRODUCTS IN SEARCH PAGE ()
          WHY BUYERS WORK WITH MOORE AUTOMATED

          Clear checks before you commit

          Product-specific verification and written commercial details help purchasing and maintenance teams reduce mismatch risk.

          • Pre-shipment inspection

            Products are inspected before dispatch to verify model, condition and applicable specifications.

          • Documentation available

            Product photos, packaging photos, certificates and datasheets can be provided when available.

          • Clear commercial terms

            Condition, warranty, lead time, included items and shipping terms are stated clearly in writing.

          • 20+ years of experience

            Over 20 years of experience in industrial automation and hard-to-source legacy parts.

          • Product Lifecycle Stage

            Legacy IS-RPI gateway / Confirm current OEM availability

            Moore Automated supplies high-quality Pepperl+Fuchs replacement modules and spare parts matched to RSD-GW3-Ex2.DPE. Exact-item verification and practical sourcing support help reduce equipment downtime.
