Features:
- Communication module
- Modbus Master/Slave Enhanced Network Interface Module
- Allen-Bradley ControlLogix series communication module

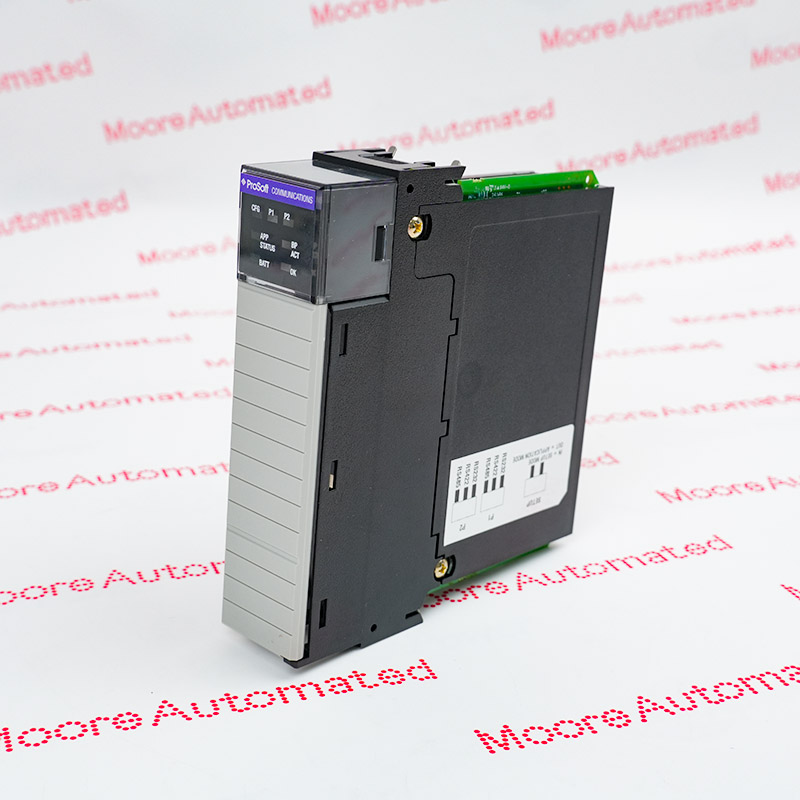

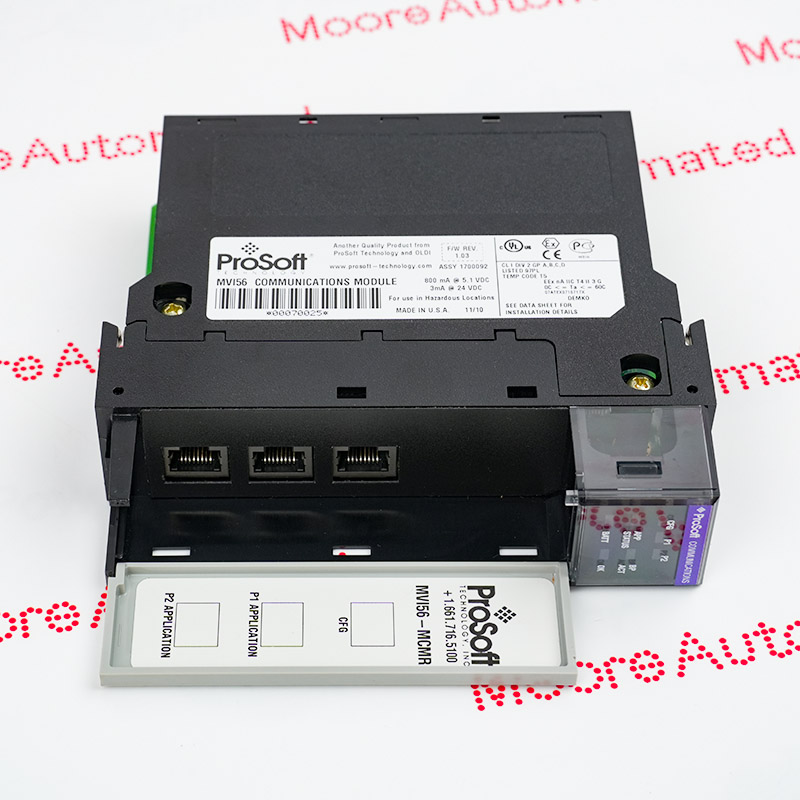

The MVI56-MCMR is a dedicated communication module in the ControlLogix series, supporting the Modbus protocol. It operates efficiently over a wide temperature range of 0 to 60 °C. This compact module occupies only one slot in a remote rack.
With a 5 VDC supply, the module consumes up to 800 mA of backplane current; while with a 24 VDC supply, the power consumption is only 3 mA. Its design requires a minimum phase wire size of 1.3 mm², ensuring compatibility with various cabling configurations.
The MVI56-MCMR PROSOFT Communication module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
PROSOFT MVI56-MCMR Communication module Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The MVI56-MCMR module integrates LED indicators for intuitive status updates. Furthermore, it supports multiple communication interfaces, such as RS-232, RS-485, and RS-422, with baud rates ranging from 110 baud to 115200 baud to meet diverse network requirements.
This module enables communication between the central ControlLogix PLC and various field devices:
Manufacturing Automation: Connects to Human-Machine Interfaces (HMIs), sensors, actuators, and other programmable controllers.
Water and Wastewater Treatment: Enables reliable data exchange between the control system and remote monitoring stations.
Power and Energy: Connects to meters, protective relays, and dedicated measuring instruments using the Modbus serial protocol.
