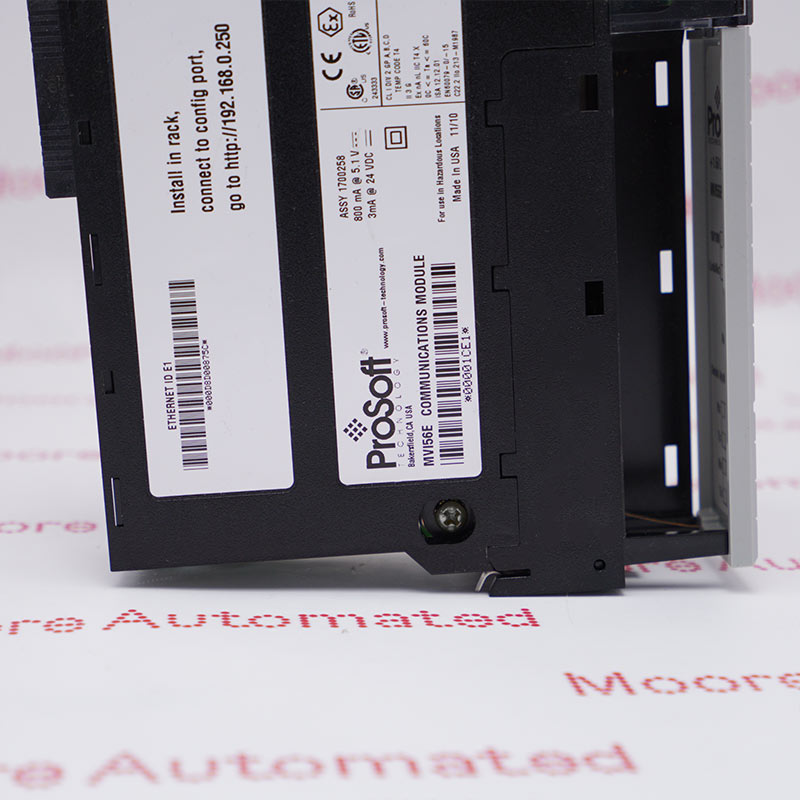

      ProSoft MVI56E-MCM
      ProSoft MVI56E-MCM
      ProSoft MVI56E-MCM
      ProSoft MVI56E-MCM
      ProSoft MVI56E-MCM
      ProSoft MVI56E-MCM

      • ISO 9001:2015 Certified

        Our quality management system covers sourcing,testing and dispatch

      • View Our Success Stories

        Real stories from real customer orders
      In Stock
      Ships by Monday, September 21
      Fast Shipping Available
      Enhanced communication module

      MVI56E-MCM

      Spare Part Number

      PNMVI56E-MCM

      Product Information:

      The MVI56E-MCM is an enhanced Modbus serial communication module developed by ProSoft Technology specifically for Rockwell Automation's ControlLogix systems. As an I/O module integrated into the ControlLogix backplane, it enables Allen-Bradley's Logix processors to easily connect to various field Modbus serial devices, presenting complex Modbus asynchronous network data directly within the PLC processor as readable and writable standard I/O data tags.

      The MVI56E-MCM features two fully independent configurable serial communication ports (P1 and P2), each freely switchable via onboard jumpers to support RS-232, RS-422, or RS-485 hardware interfaces, and can be defined as a Modbus master or slave.

      Both ports share a user-defined database with a capacity of up to 10,000 words, supporting floating-point transmission (e.g., the Enron Modbus standard). Each port can efficiently poll up to 325 control commands, perfectly meeting the centralized interconnection needs of multi-standard serial networks within a factory. In terms of engineering integration and maintenance, the MVI56E-MCM offers exceptional ease of use.

      Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote
      • One-year warranty
      • Global shipping
      • Exact-model verification
      WhatsApp: +86 180 2077 6792 Email parts team
      01


      Model Verified

      Model, revision and nameplate reviewed
      02


      Email confirmation

      You will get an email confirming that we have received your enquiry
      03


      Dedicated Account Manager

      One of our team will be in touch to confirm your part(s) specification and condition
      04


      Your quote

      You will receive a comprehensive quote tailored to your specific needs
      Technical specifications for

      MVI56E-MCM

      0 TECHNICAL PARAMETERS
      • Manufacturer:
        ProSoft
      • Product Category:
        General Automation
      • Spare Part Number:
        MVI56E-MCM
      • Estimated shipping dimensions:
        3.5x14x14.5cm
      • Weight:
        0.26 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • Product Line:
        ControlLogix
      • Product Type:
        Enhanced communication module
      • Rack Type:
        Local or Remote
      • Baud Rate:
        110 baud-115.2 kbps
      • Commands per Master:
        Port 325
      • Backplane Current Load:
        800 mA @ 5V DC
      • User-definable Module Data Memory Mapping:
        10,000 Registers
      • Shock:
        30g Operational
      • Slot(s):
        1 Slot
      • Series:
        ProSoft
      • Stock Availability:
        30
      Ask for Quote
      WHAT HAPPENS NEXT?

      From enquiry to delivery

      Six clear steps show what information is required and what the written quotation will contain.
      • 01

        Find the product

        Search the part number or send an inquiry for obsolete, discontinued or hard-to-find parts.
      • 02

        Provide the details

        Share the exact part number, quantity, condition, revision, destination and any required certificates or photos.
      • 03

        Review the quotation

        Receive price, currency, condition, availability, warranty, lead time, shipping terms and quotation validity in writing.
      • 04

        Confirm the order

        Accept the quotation in writing and complete the required payment before shipment.
      • 05

        Pay by bank transfer

        Pay the full invoiced amount by bank wire in RMB/CNY, GBP, EUR or USD using the official invoice details.
      • 06

        Verify and dispatch

        The item receives a pre-shipment inspection and suitable protective packaging. Functional testing is performed only where appropriate equipment and procedures are available for the specific item. We confirm the applicable inspection scope and provide tracking after dispatch.
      Request a Verified Quote
      BUYER INFORMATION

      Product condition level information

      Commercial details are confirmed in writing before payment.
      • 01

        Factory Sealed

        Unused product with the original factory seal intact; packaging age or storage marks may still be present.

        view
      • 02

        Original Pack

        Unused product in original manufacturer packaging that was not originally factory sealed.

        view
      • 03

        Factory New

        New and current product sourced through the manufacturer or authorized supply channel when expressly confirmed in the quotation.

        view

      Revisions

      Revision Part #

      Also known as

      MVI56E-MCM/A
      MVI56E-MCM Ser A, Series A, Rev A
      Get Parts Quote

      Alternative Names

      MVI56E MCM MVI56EMCM MV156E-MCM MV156E MCM MV156EMCM MVI56-101M MVI56-EGD MVI56E-MCM MVI56-GSC MVI56-HART

      Information

      Overview Manuals Principle

      Features:

      • Enhanced communication module
      • Modbus Master/Slave Enhanced Network Interface Module
      • Allen-Bradley ControlLogix series communication module
      It is an enhanced network interface module that can support both master and slave communication. The MVI56E-MCM enhanced network interface module functions as the interface between a ControlLogix processor and various Modbus devices. It can be installed in a local or remote rack. The MVI56E-MCM enhanced network interface module supports a wide operating temperature range of 32 to 140 degrees Fahrenheit and a wide storage temperature range of -40 to 185 degrees Fahrenheit.

      The MVI56E-MCM module supports master and/or slave connections between ControlLogix processors and Modbus RTU/ASCII devices. This module is backward compatible with older MVI56 modules, meaning users can directly replace older modules without modifying their existing controller software. The MVI56E-MCM module boasts a 10,000-word database, enabling it to collect more data from other devices and thus improve performance.

      The MVI56E-MCM PROSOFT Enhanced communication module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
      PROSOFT MVI56E-MCM Enhanced communication module Manuals(Datasheets), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      This feature of the MVI56E-MCM module also allows users to fully utilize its enhanced functionality and flexibility without incurring costly reprogramming. By acting as an input/output module on the ControlLogix backplane, the MVI56E-MCM module presents Modbus data to the processor as I/O data. Furthermore, it features cross-detection capabilities.

      Manuals

      Technical notes

      The MVI56E-MCM is an enhanced Modbus serial communication module developed by ProSoft Technology for Rockwell Automation's ControlLogix system. Its key technical features include: occupying only one slot in the ControlLogix rack; high-speed data exchange with the ControlLogix processor via the backplane; and providing two independent, isolated serial ports (supporting RS-232/RS-422/RS-485), each independently configurable as a Modbus master or slave, with a maximum baud rate of 115.2 Kbps. Furthermore, this "E" series (enhanced) module integrates an Ethernet configuration port, enabling engineers to remotely diagnose and configure parameters using ProSoft Configuration Builder (PCB) software and monitor module status in real-time via a scrolling LED display, without requiring complex ladder logic programming.
      PRODUCT & ORDER FAQS

      Questions buyers ask about MVI56E-MCM

      • What communication paradigm does MVI56E-MCM implement to interface Rockwell ControlLogix processors with Modbus networks?

        The MVI56E-MCM is a high-integration communication module engineered to provide both Modbus Master and Slave protocol support, enabling seamless integration between a ControlLogix processor and Modbus RTU/ASCII devices by presenting Modbus process data as I/O accessible to the controller.

      • How does MVI56E-MCM manage dual independent serial port configurations for multi-network operation?

        The MVI56E-MCM supports two independently configurable serial ports, each of which can be operated in either Master or Slave mode and assigned to the same or different Modbus networks, enabling concurrent bidirectional communication with multiple Modbus devices.

      • Why is backward compatibility significant for MVI56E-MCM in legacy and upgrade automation environments?

        The MVI56E-MCM maintains backward compatibility with legacy MVI56 modules, allowing direct replacement within existing ControlLogix applications without the need to modify configured controller logic or redevelop control strategies.

      • What data scaling and register mapping capabilities are available in MVI56E-MCM for comprehensive Modbus data integration?

        The MVI56E-MCM accommodates up to 10,000 16-bit registers in its internal database, providing extensive data mapping capabilities to transfer large sets of process data between Modbus networks and the ControlLogix processor with high fidelity.

      • How does MVI56E-MCM ensure ease of configuration and integration within RSLogix/Studio 5000 projects?

        The MVI56E-MCM uses an Add-On Instruction (AOI) that embeds configuration parameters directly within the controller project (ACD file), eliminating the requirement for external software tools and significantly reducing development time and effort.
