Features:
- Power supply module Modicon Quantum - 24 V DC 20..30 V - summable
- Modicon Quantum automation platform
- It operates at an input voltage of 24 V DC with a current rating of 3800 mA, delivering a reliable output current of up to 8 A

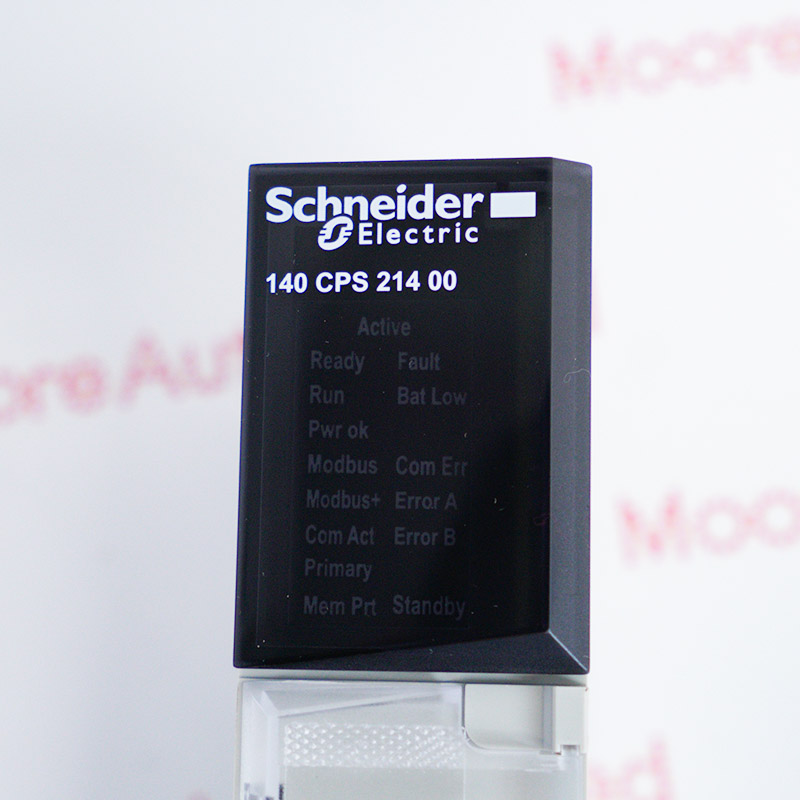

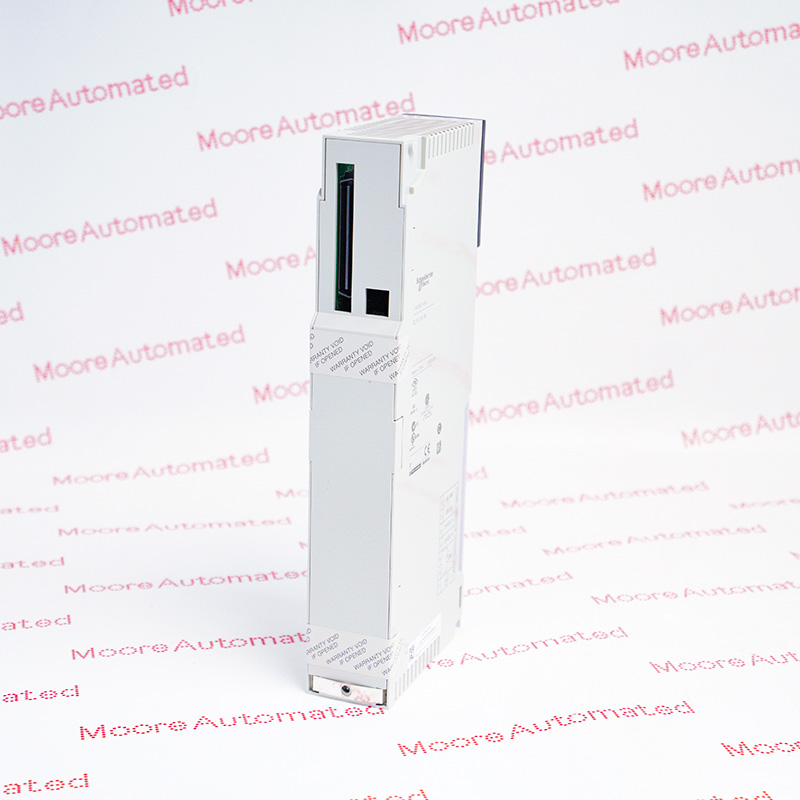

The Schneider Electric 140CPS21400 is a power module in the Modicon Quantum series. It is designed for a 24 V DC input voltage with an input voltage range of 20 to 30 V. The module has an input current of 3800 mA, a total output current of 8 A, and an output voltage stabilized at 5.1 V DC.
Notably, this module can withstand a surge current of 14 A at a 20 V input voltage and up to 25 A at a 24 V input voltage, ensuring stable performance during initial startup. Weighing only 0.13 kg, the module is easily integrated into various systems. For protection, the module incorporates a 5 A slow-blow fuse to prevent overcurrent damage. The design can withstand power interruptions of up to 100 ms, enabling rapid recovery and ensuring continuous operation. The 140CPS21400 also bears the CE mark, indicating its compliance with safety and environmental standards.
The 140CPS21400 Schneider Electric Power Supply Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric 140CPS21400 Power Supply Module manual(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Modicon Quantum product line is now mature. Schneider Electric officially ceased production of the 140CPS21400 on December 31, 2022, and plans to discontinue service on December 31, 2030. For modernization upgrades or new system designs, Schneider Electric recommends using the BMXCPS3020 on the Modicon X80 platform as a direct functional replacement.
The Schneider Electric 140CPS21400 power supply requires no software programming or configuration in EcoStruxure Control Expert (Unity Pro) or Concept. It is a fully hardwired, plug-and-play module that automatically powers the backplane bus upon power-up. However, depending on its installation in the Modicon Quantum rack, appropriate hardware configuration may be required.
1.Slot Limitation: The 140CPS21400 can only be installed in the leftmost slot position on the Quantum backplane.
2.Module Limitation: A maximum of two stackable 140CPS21400 power supplies can be installed on a single Quantum backplane.
3.Do Not Mix: Never mix stackable 140CPS21400 power supplies with standard (non-stackable) power modules in the same rack, as this may damage the hardware.
