Features:

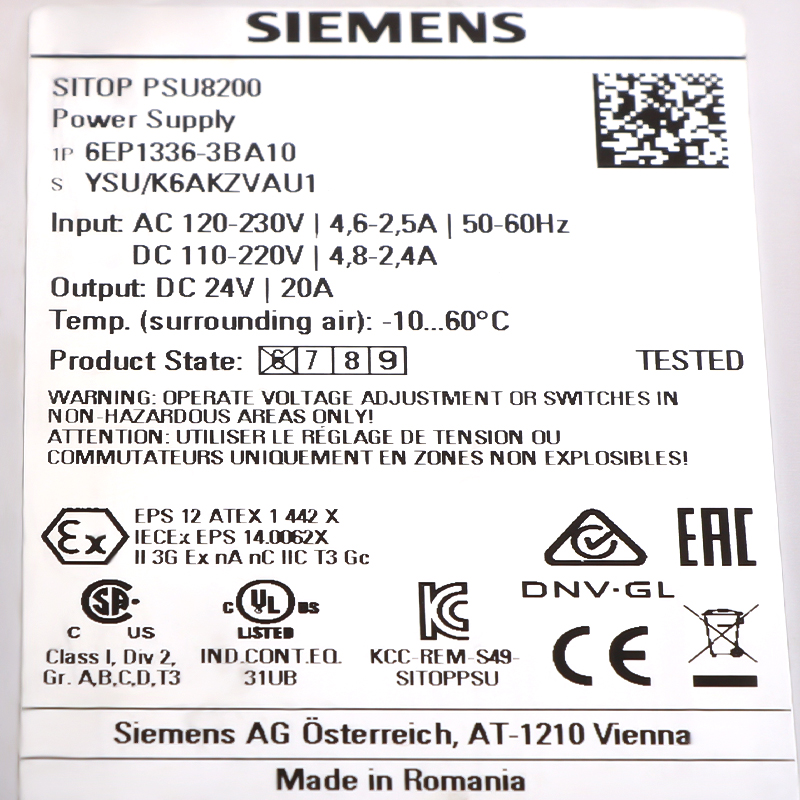

- 6EP1336-3BA10 is identified by rated output 24 VDC, 20 A within the documented SITOP PSU8200 one-phase power supplies configuration.
- The official specification gives ac input rating as 120-230 VAC nominal, which must be retained during selection.
- Commissioning must also preserve dc input rating (110-220 VDC nominal) and the stated connection limits.

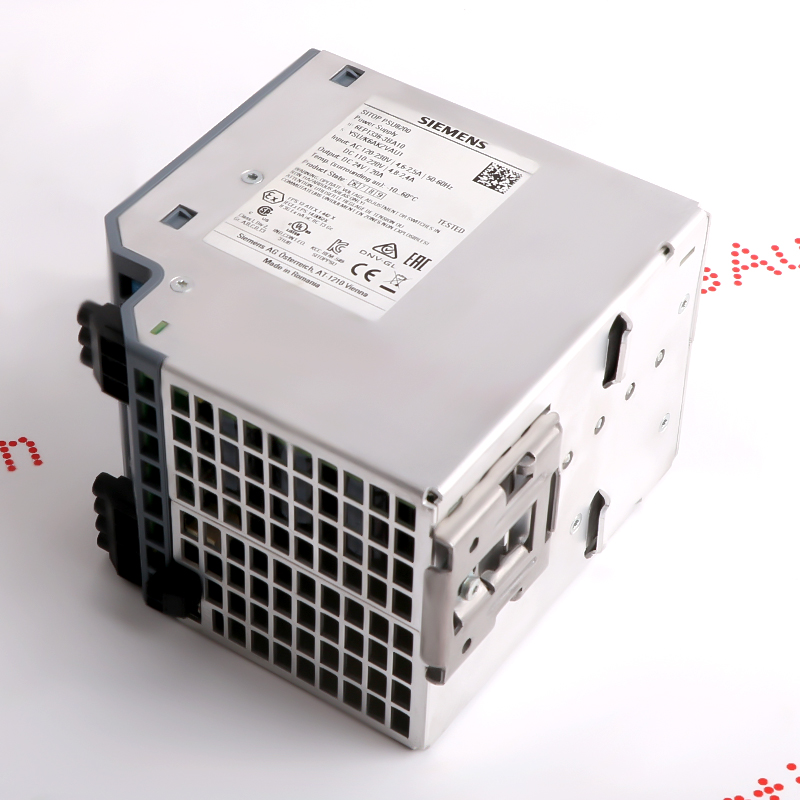

A SITOP PSU8200 stabilized power supply accepting 120-230 VAC or 110-220 VDC and delivering 24 VDC at 20 A. Its wide input range, regulated output and DIN-rail format support industrial control loads that require a high-current 24 V supply. Selection must preserve the complete label identity, connected-equipment compatibility and manufacturer installation limits.
Manufacturer reference: official SITOP PSU8200 one-phase power supplies documentation.
Moore Automated supports exact-item verification and spare-part enquiries for 6EP1336-3BA10.
Siemens 6EP1336-3BA1024 VDC 20 A stabilized power supply pdf, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Confirm the complete 6EP1336-3BA10 identity and compare rated output, ac input rating and dc input rating with the installed design before approving a replacement.
Check input supply type, upstream protection, 20 A load demand, output-voltage adjustment, DIN-rail space and redundancy or buffering modules. Replace only after the connected 24 V load and conductor ratings are verified.
Mount with Siemens clearance and ventilation requirements, provide the specified input protective device, size output conductors for 20 A, bond protective earth and confirm output voltage under load before energizing controls.
