Features:
- SIMATIC OPERATOR PANEL OP 73MICRO FOR SIMATIC S7-200 3" LC DISPLAY
- BACKLIT WITH GRAPHICS CAPABILITY CONFIGURABLE WINCC FLEXIBLE 2004 MICRO HSP UPWARDS
- CONTAINS OPEN-SOURCE-SW, WHICH IS PROVIDED FREE OF CHARGE. FOR DETAILS SEE ENCLOSED CD

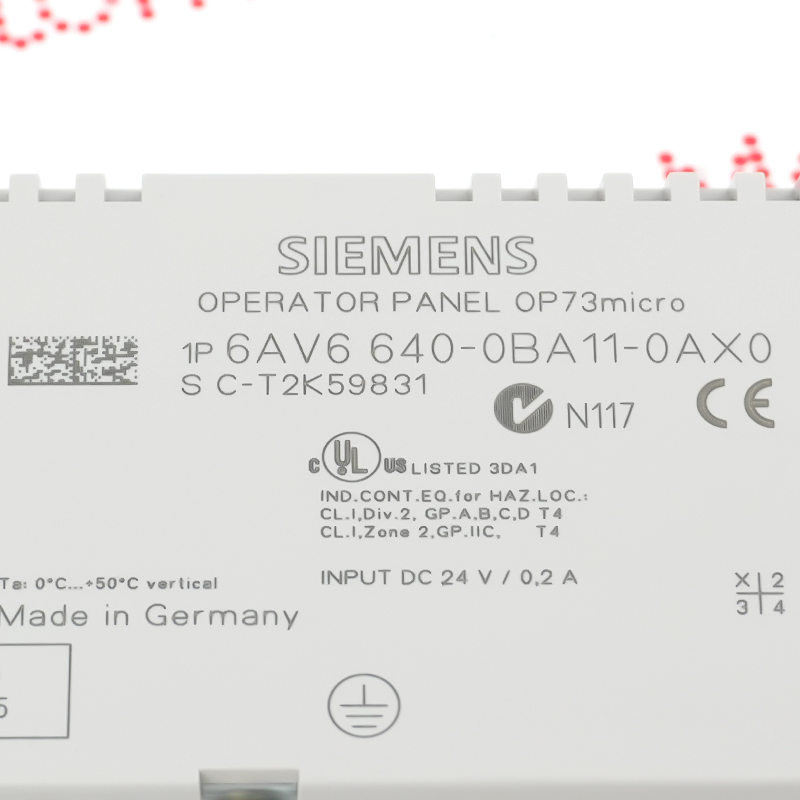

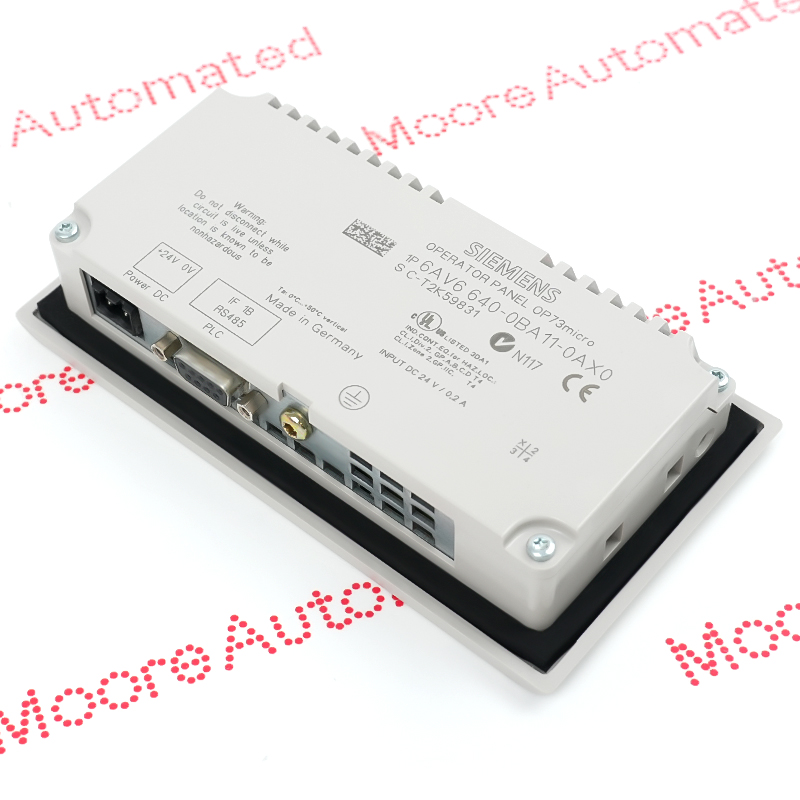

The 6AV6640-0BA11-0AX0 (SIMATIC OP 73micro) is a small industrial human-machine interface (HMI) designed specifically for Siemens S7-200 PLCs. It features a 3-inch STN display and four programmable function keys, making it suitable for compact field control.
This device communicates via an RS485 interface, supports configuration using WinCC flexible software, and has a high protection rating, commonly used for local monitoring. Its operation is based on an embedded system running on an internal processor. It communicates bidirectionally with the PLC via the RS485 interface using the PPI/MPI protocol, reading and displaying data, while simultaneously converting membrane keyboard commands into real-time control signals and transmitting them to the PLC.
The 6AV6640-0BA11-0AX0 Siemens Operator Panel Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6AV6640-0BA11-0AX0 Operator Panel Module MANUAL(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Because this Human-Machine Interface (HMI) falls into the traditional hardware-specific "micro" category, the following software limitations exist:
S7-200 Lockout: The OP 73micro's firmware explicitly restricts its communication with the SIMATIC S7-200 CPU. It cannot map variables or read tags from older S5 series racks or newer S7-300, S7-1200, or S7-1500 racks.
Engineering Tools: Configuration and screen generation require the standard version of WinCC flexible Micro or WinCC flexible (versions 2004 SP1 to 2008) and the Micro Hardware Support Package (HSP). Modern TIA Portal (Comfort/Advanced/Unified) engineering platforms do not support this functionality at all.
Display Structure: 3-inch STN monochrome LCD screen (backlit, black and white display, supports graphics display). Screen Resolution: 160 x 48 pixels.
Control Interface: Physical membrane keypad with 8 system keys and 4 user-programmable function keys.
Input Voltage: 24V DC (operating voltage range 20.4V to 28.8V DC).
Current Consumption: Low power consumption, 100mA.
Communication Interface: One RS485 physical port (using Siemens PPI protocol, maximum transmission speed up to 187.5kbit/s under S7-200 call parameters).
