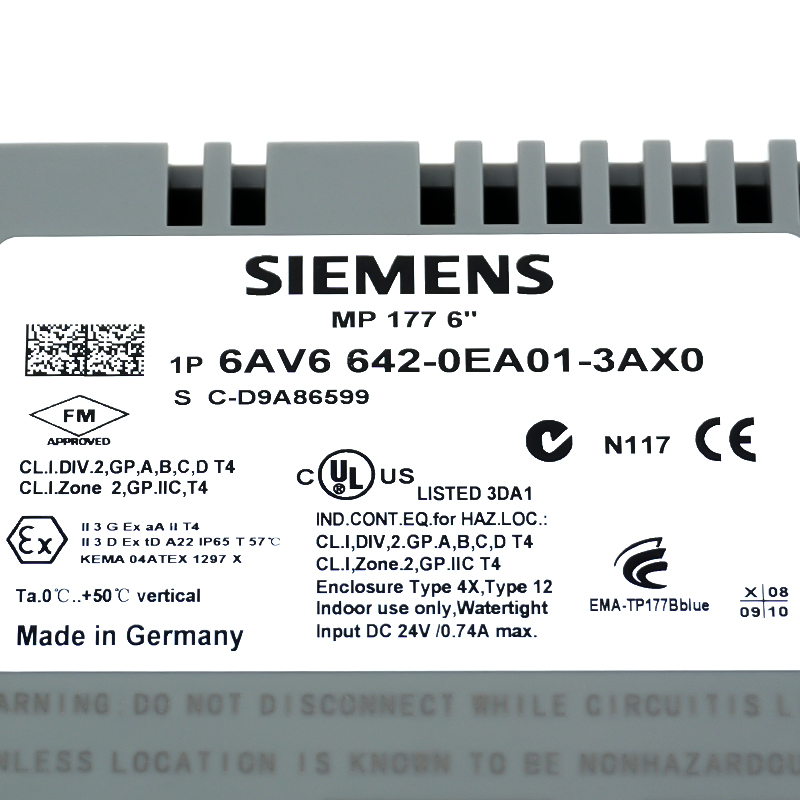

- Siemens SIMATIC MP 177 6" Touch Multi Panel
- This is an industrial Human-Machine Interface (HMI) designed for operator control and monitoring of machinery and automated processes
- 32-bit RISC processor (520 MHz) running Windows CE 5.0
The Siemens 6AV6642-0EA01-3AX0 (SIMATIC MP 177 6-inch Touchscreen) is a multi-functional human-machine interface (HMI) control panel designed specifically for industrial automation environments. It features a 5.7-inch TFT color widescreen display supporting up to 65,536 colors and a pixel resolution of 320x240. Its core function is to provide field operators with an intuitive digital control terminal. By displaying real-time process flow diagrams, alarm information, and historical trend graphs on this screen, operators can directly monitor the production line and equipment status, adjust parameters in real time, and perform diagnostic management via touch.
Positioned as a "multi-functional panel," this module boasts exceptional system scalability and field network adaptability. It features 2MB of built-in user configuration and data retention memory and natively integrates multiple communication interfaces, including PROFIBUS DP, MPI, Industrial Ethernet (RJ45), and USB. This enables seamless integration with the entire Siemens SIMATIC S7 PLC control system suite and cross-platform connectivity with third-party control devices, facilitating data aggregation and information relay in complex workshop networks.
The 6AV6642-0EA01-3AX0 Siemens SIMATIC MP 177 6-inch touchscreen mobile terminal may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6AV6642-0EA01-3AX0 SIMATIC MP 177 6-inch touchscreen mobile terminal manual(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The MP 177 series multifunction control panel is powerful and supports communication with Siemens PLCs (S7-200, S7-300, S7-400) and third-party controllers:

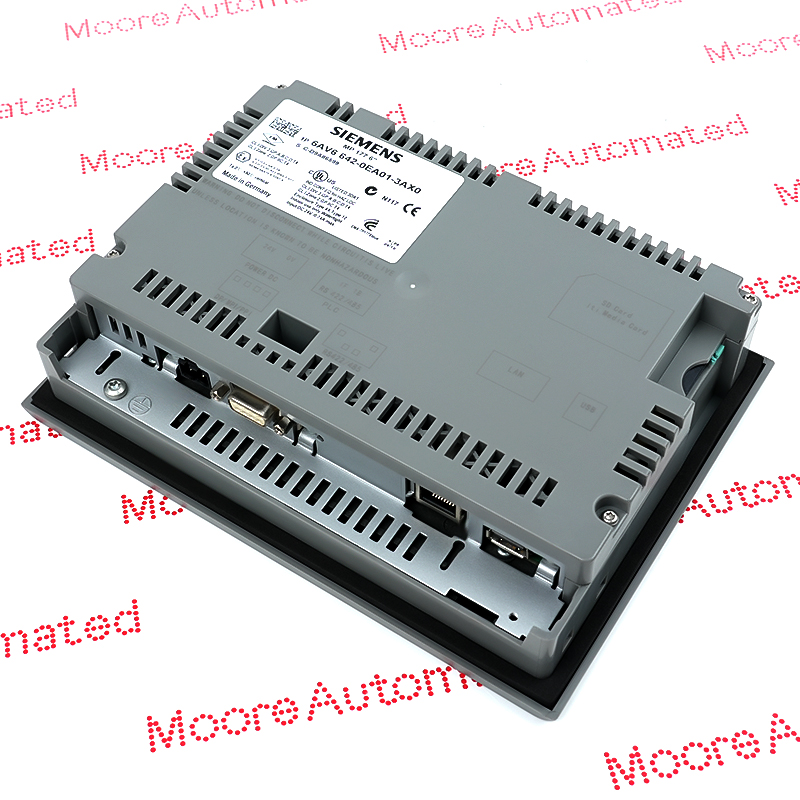

One Industrial Ethernet port (RJ45): for PROFINET connectivity and TCP/IP network integration.
One RS-422/RS-485 Type-D port: supports MPI (Multipoint Interface) and PROFIBUS DP protocols, with a maximum transmission speed of 12 Mbit/s.
One USB port: for connecting peripheral devices such as USB flash drives, keyboards, or barcode scanners.
It is primarily programmed and configured using WinCC flexible 2008 Compact (or later), but can also be migrated to the newer TIA Portal (WinCC Comfort) software suite. It supports data storage retention, ensuring that critical operation logs and recipes are preserved after a power outage and restart.
