Product Overview

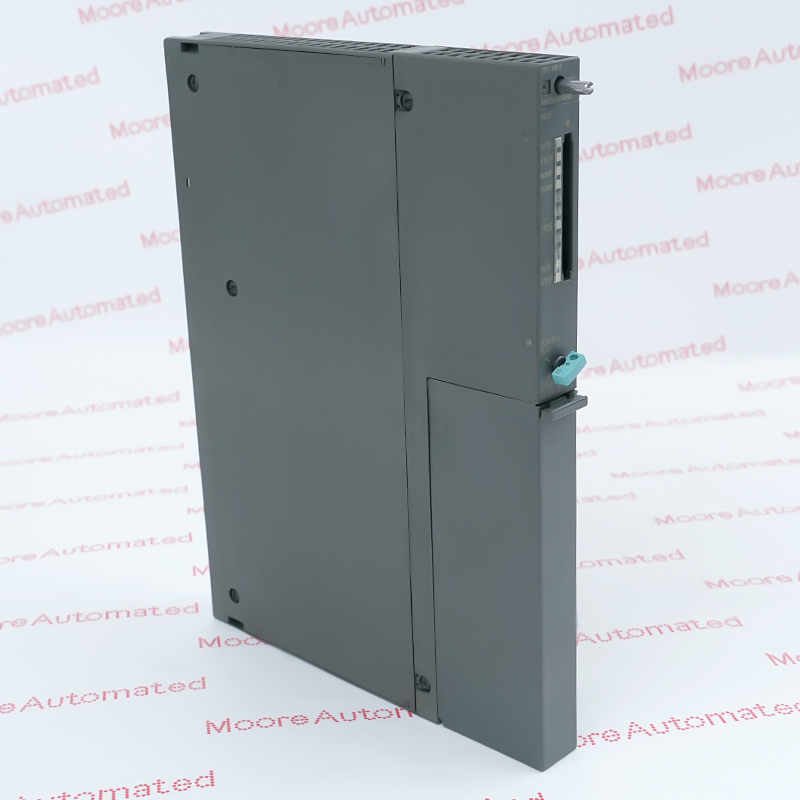

6ES7416-2FP07-0AB0 is a Siemens SIMATIC S7-400 CPU 416F-2 for fail-safe automation tasks. It provides 8 MB work memory divided into 4 MB for code and 4 MB for data.
The CPU has an integrated MPI/PROFIBUS DP interface operating up to 12 Mbit/s and a second PROFIBUS DP interface. It supports standard and safety-related control functions in one CPU.
The official data sheet specifies STEP 7 V5.4 or higher with HSP 261, typical power loss of 4.5 W and processing times of 12.5 ns for bit, word and fixed-point operations.
Technical Configuration
- Product Type: CPU 416F-2
- Work Memory: 8 MB
- Program Memory: 4 MB
- Data Memory: 4 MB
- Interface 1: MPI/PROFIBUS DP, 12 Mbit/s
- Interface 2: PROFIBUS DP
- Firmware Version: V7.0
- Engineering Software: STEP 7 V5.4 or higher with HSP 261
Application Context
It is used in fail-safe process and machine automation requiring SIL 3/PL e control, high processing performance and distributed PROFIBUS I/O.
It is compatible with SIMATIC S7-400 racks and projects engineered for CPU 416F-2. Confirm STEP 7 V5.4 or higher with HSP 261, firmware and PROFIBUS configuration.
The 6ES7416-2FP07-0AB0 Siemens product is listed as Active/Available from OEM. Moore Automated supports order-code verification, replacement planning and spare-parts supply to help reduce maintenance risk and plant downtime.
Siemens 6ES7416-2FP07-0AB0 Official PDF and Product Support
The first link opens the matched PDF directly in a new browser tab. The remaining links stay within Moore Automated.
Important Notice: Accessories, software, cables, licenses and calibration records are supplied only when specifically stated in the quotation or stock description.
The CPU is designed for fail-safe systems up to SIL 3 according to IEC 61508 and PL e according to ISO 13849-1. Standard and safety programs can run in the same controller.
Application Detail
It is used in fail-safe process and machine automation requiring SIL 3/PL e control, high processing performance and distributed PROFIBUS I/O.
It is compatible with SIMATIC S7-400 racks and projects engineered for CPU 416F-2. Confirm STEP 7 V5.4 or higher with HSP 261, firmware and PROFIBUS configuration.
Key Parameters
- Product Type: CPU 416F-2
- Work Memory: 8 MB
- Program Memory: 4 MB
- Data Memory: 4 MB
- Interface 1: MPI/PROFIBUS DP, 12 Mbit/s
Use the integrated MPI/PROFIBUS DP interface and the second PROFIBUS DP interface according to the project hardware configuration. Verify firmware V7.0 and STEP 7/HSP compatibility before replacement.
Installation and Replacement Guidance
Match the S7-400 rack, system power supply, firmware, memory card and both PROFIBUS network configurations before inserting the CPU.
The SIMATIC S7-400 CPU 416F-2 combines standard and fail-safe processing with 8 MB work memory, dual PROFIBUS-capable interfaces and SIL 3/PL e safety capability. STEP 7 V5.4 or higher with HSP 261 is required for engineering.
Before commissioning, verify the complete order number 6ES7416-2FP07-0AB0, physical interface, engineering software or firmware requirements, and the configuration of the existing Siemens system.
