Features:
- Thirty-two Input Points: Acquires nominal 24 VDC discrete signals through the documented V-series serial I/O platform.
- Defined Input Loading: Toshiba specifies 5 mA per input separately from the module supply-current requirement.
- Serviceable I/O Architecture: Online replacement is listed for the module within the approved serial I/O system procedures.

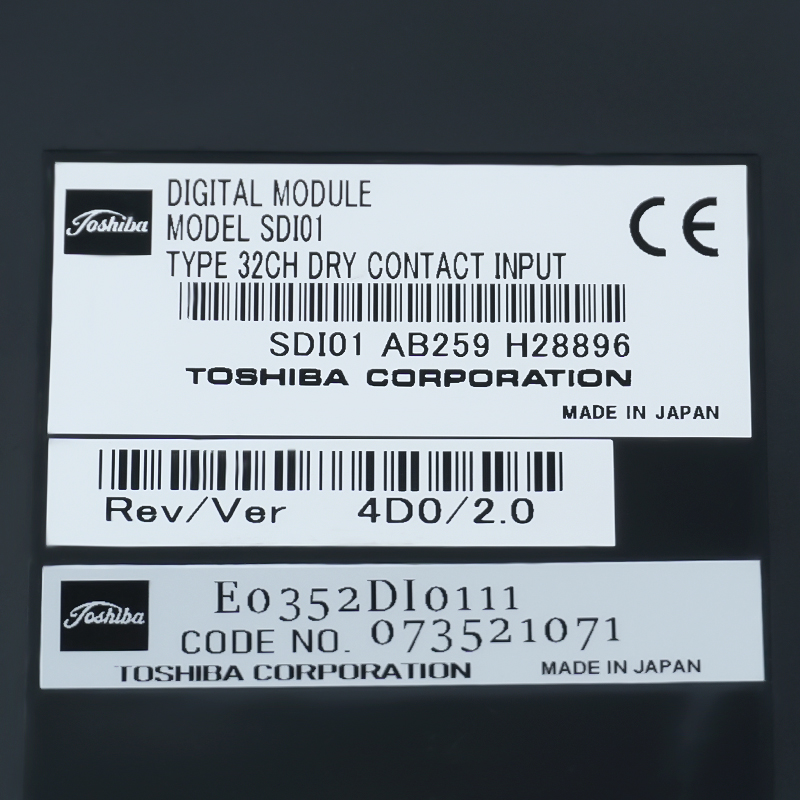

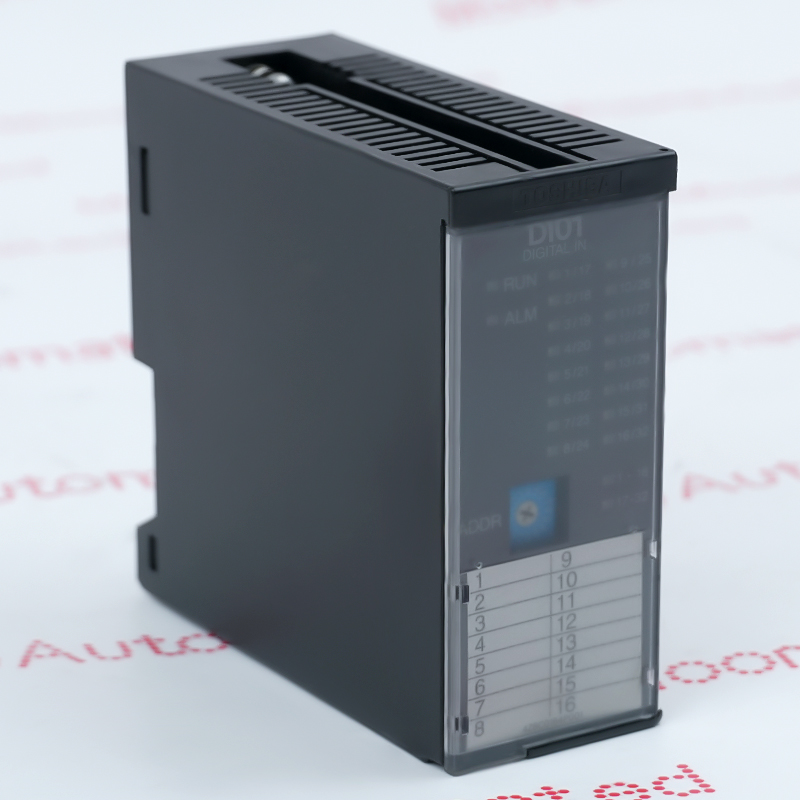

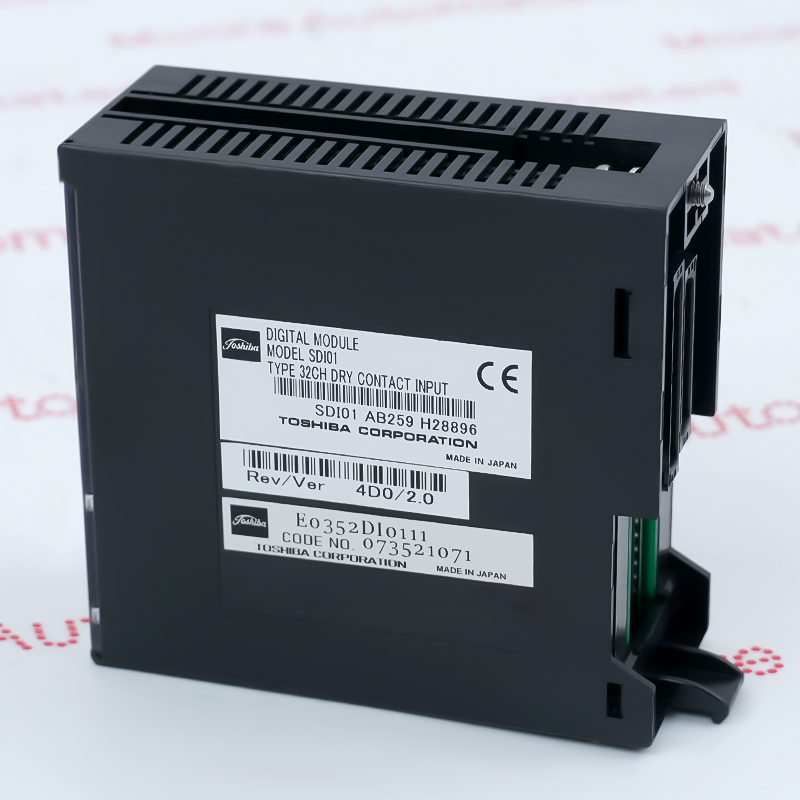

The Toshiba SDI01 is a serial I/O digital-input module listed for V-series model 2000 and model 3000 controller installations. It provides 32 input points for nominal 24 VDC signals, with a specified input current of 5 mA per channel. Toshiba identifies the input channels as non-isolated from one another and lists support for online module replacement within the documented system arrangement. The module itself draws 50 mA from the 24 VDC supply, a figure separate from the individual field-input currents. It belongs to the serial I/O hardware platform rather than serving as a standalone controller, so its base-unit, termination and controller configuration must be preserved when arranging a replacement.
The channel arrangement and field-power distribution should be checked against the installed wiring drawings, particularly because the inputs are not isolated from one another. The module supply current is not a substitute for calculating the load imposed by energized field inputs. Online replacement capability also does not remove the need to follow the controller and process procedures for maintenance. A replacement enquiry should therefore identify the installed base and terminal assembly as well as the SDI01 label.
Technical source: Toshiba V-series serial I/O module specification tables (English).. Match the complete ordering code and supplied execution.
Toshiba SDI01 product resources. An exact-model English PDF is not currently attached.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
SDI01 has 32 nominal 24 VDC inputs at 5 mA per input. Confirm field signal polarity, shared references and termination against the installed controller drawings.
Toshiba lists the channels as non-isolated. Design and maintain the shared field references accordingly; do not apply individually isolated-channel assumptions to this module.
Online swapping is listed for SDI01 in the serial I/O product table. Use only the documented system procedure and process authorization for the actual installation.
