Features:
- The documented memory size is 16 MB.
- The documented battery type is battery-buffered RAM.
- The documented memory capacity is 16 MB.

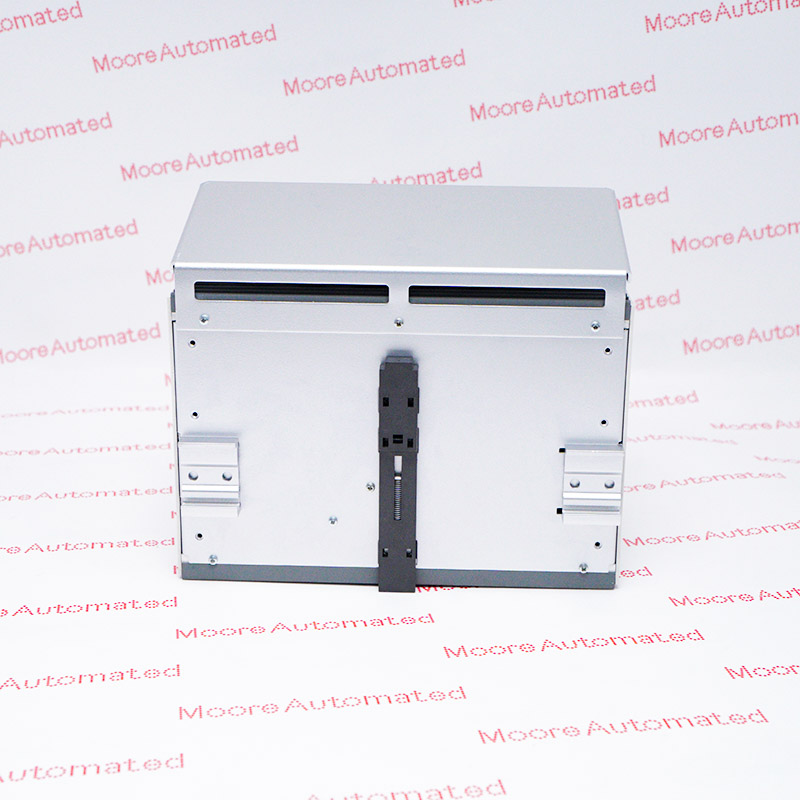

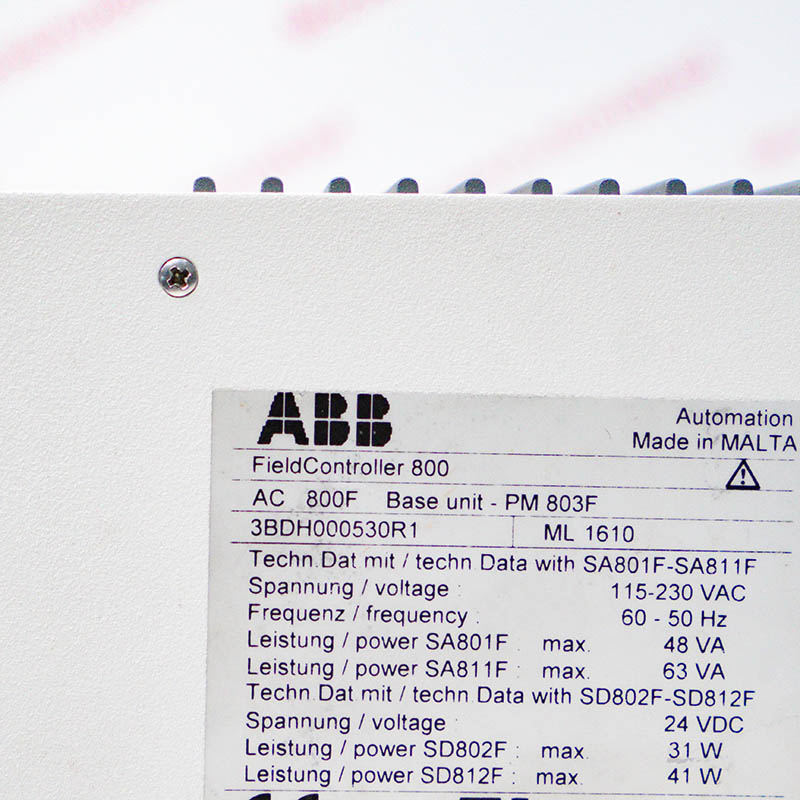

PM803F 3BDH000530R1 is an ABB Base Unit selected by its complete product identity and documented equipment role. Suitability depends on the installed Advant AC800F-Freelance hardware, interfaces and application requirements matching the supplied unit.
Before replacement, record the nameplate, installed position, terminal or connector arrangement and paired assemblies. After installation, verify every affected power, communication, protection, control or I/O function before returning PM803F 3BDH000530R1 to service.
The PM803F 3BDH000530R1 ABB Base Unit is listed as Obsolete / Discontinued by OEM. Current revision, availability and supplied scope are confirmed in the written quotation.
ABB PM803F 3BDH000530R1 documentation and reference links.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
PM803F 3BDH000530R1 performs the documented base unit function within the Advant AC800F-Freelance system. Confirm the recorded power, signal, communication and mechanical interfaces against the approved equipment record. Do not infer ratings or interchangeability from appearance; the complete label and hardware revision control selection.
Replacement of PM803F 3BDH000530R1 requires an exact match to the receiving Advant AC800F-Freelance hardware, connected assemblies and configuration record. Record the installed position and connections before removal, preserve required settings, and verify every affected function after installation.
Before energizing PM803F 3BDH000530R1, inspect mounting, connector keying, terminal allocation, protective grounding and paired equipment. After startup, review diagnostics and complete controlled functional tests before returning the equipment to service.
