- Switching power supply module
- Industrial-grade switching power supply module
- Frequently utilized within Allen-Bradley PowerFlex 7000 medium voltage drive systems

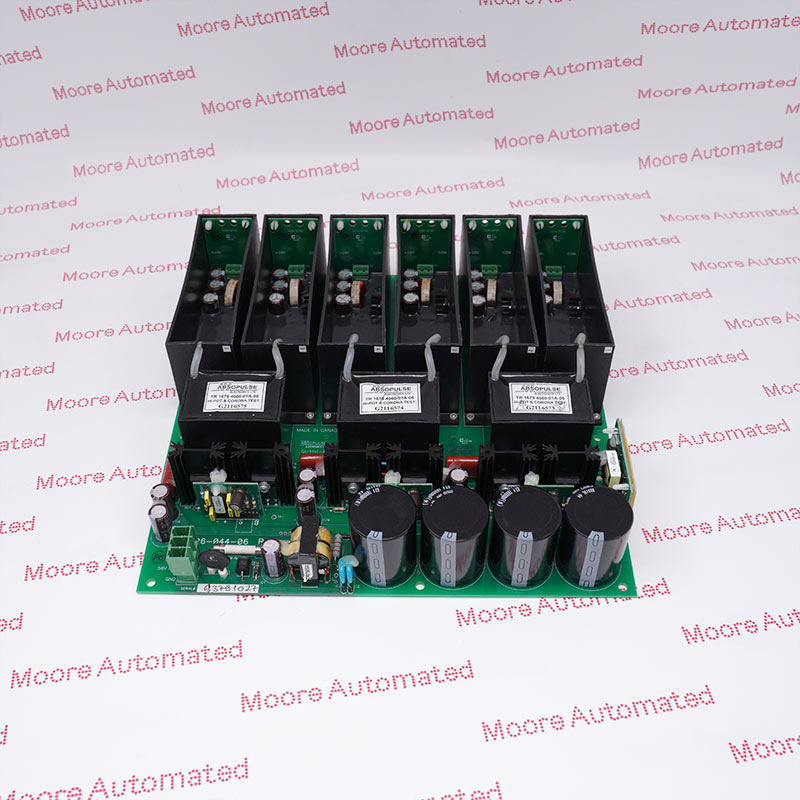

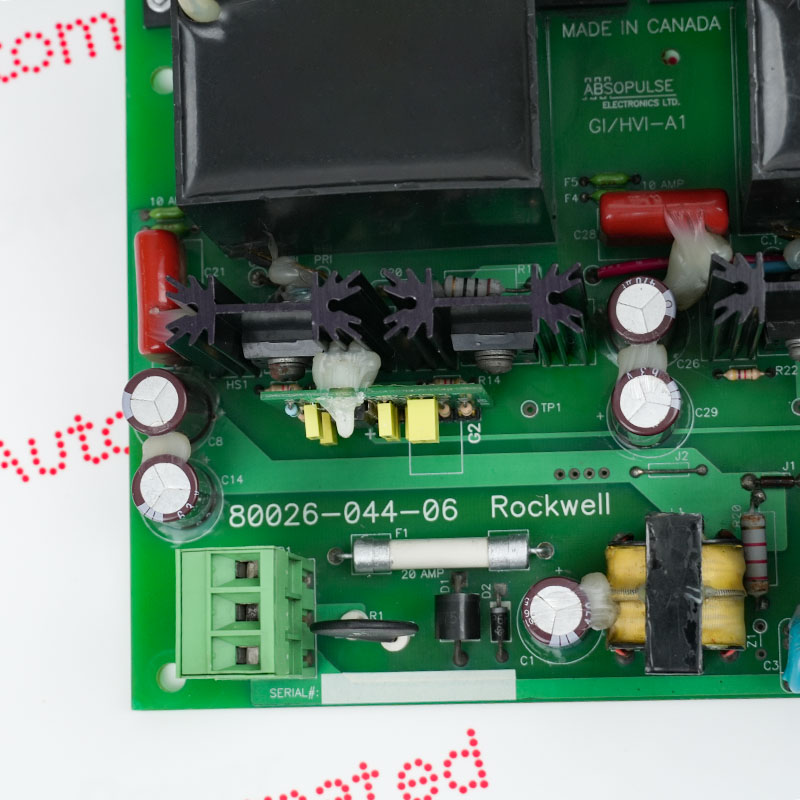

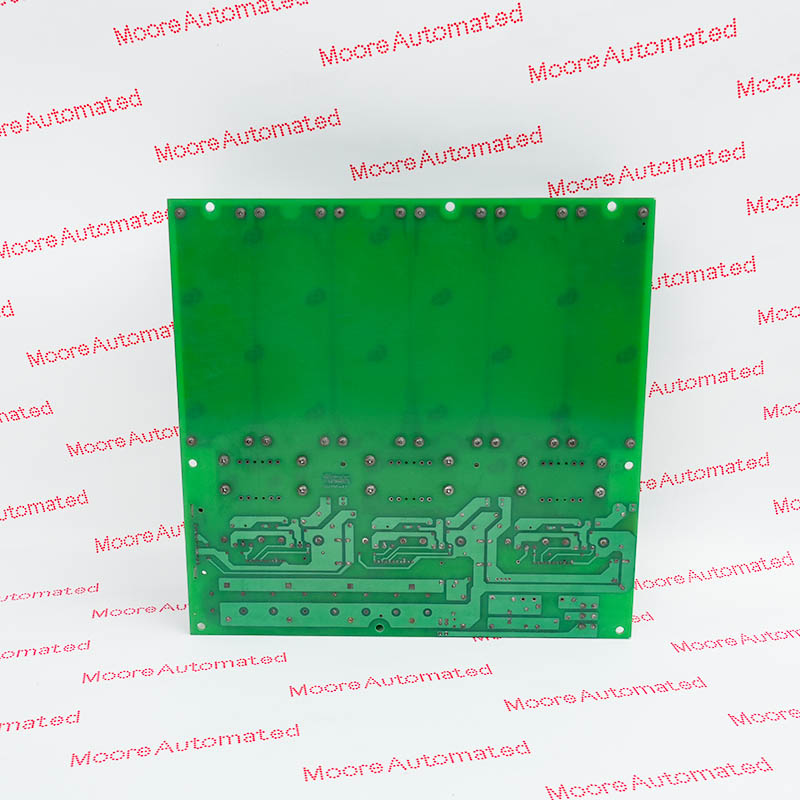

The Allen Bradley 80026-044-06 power module is a highly reliable switching device suitable for industrial environments. It operates efficiently over an input voltage range of 24 to 60 VDC while maintaining a stable output voltage of 50 VDC. The power supply provides 10.0 A of output current. Equipped with six auxiliary outputs, the module offers flexibility to meet various circuit requirements.
Its safety features include an isolation voltage of up to 3000 VDC, ensuring reliable operation even under harsh conditions. Its shock resistance allows it to withstand shock forces up to 5 g, making it suitable for environments where vibration or shock may occur.
The 80026-044-06 Allen Bradley Switching power supply module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen Bradley 80026-044-06 Switching power supply module manual(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
This rugged module monitors voltage in real time to prevent overload and ensures stable operation of the inverter's power distribution chain and microprocessor logic in complex heavy industrial environments such as oil and mining. It employs Switching Power Supply (SMPS) technology, converting the input voltage from AC or coarse DC to constant DC through rectification, high-frequency switching, transformer isolation, and pulse width modulation (PWM), and achieving efficient load response through closed-loop feedback.
Multi-channel isolation: Converts the 24–60VDC input to six isolated channels, each typically providing 20VDC, 3A current. This ensures that a fault or surge in one circuit will not affect other circuits.
High-voltage safety: Features an isolation voltage of 3000VDC and integrated overheat, overcurrent, and short-circuit protection.
Compact mounting: Designed for space saving, it can be mounted on a DIN rail within an industrial control cabinet.
