Features:
- Dedicated Legacy Master Integration: This heavy-duty interface terminal links perfectly with legacy infrastructure, acting as the primary input control unit for classic decentralized architectures.
- Resilient Field Power Infrastructure: Configured to operate directly on standard high-voltage plant power grids, the module features low thermal dissipation to ensure continuous control panel uptime.
- Heavy-Duty Industrial Keypad Matrix: Engineered with a robust tactile switch layout, the durable control surface provides reliable data entry for personnel working in demanding factory environments.
The ABB DSIH75VP 57310290-RD stands as a vital asset for maintaining operational continuity across mature manufacturing plants and power generation facilities. As factories strive to maximize the lifecycle of existing infrastructure, this specialized operator's keyboard serves as the direct physical bridge between field technicians and complex automation backbones. By installing the rugged ABB DSIH75VP 57310290-RD device directly onto localized control cabinets, operators can execute critical parameter tuning and system navigation right from the plant floor. Its heavy-duty Swedish engineering guarantees that the unit withstands the constant mechanical wear typical of heavy-industry operations, preventing costly capital expenditure on premature full-scale system upgrades.
Functioning within classic MasterView layouts, the ABB DSIH75VP 57310290-RD terminal simplifies complex machine oversight by providing an organized tactile layout for rapid command execution. The internal power processing unit of the ABB DSIH75VP 57310290-RD module is optimized to handle standard 230 V AC electrical environments while drawing minimal energy, allowing it to stay constantly active without causing localized overheating. When integrated into legacy processing lines, the ABB DSIH75VP 57310290-RD board reads operator inputs with high fidelity, translating physical keypresses into reliable system diagnostics. As a proven spare part for obsolete DCS control networks, deploying the ABB DSIH75VP 57310290-RD component eliminates communication bottlenecks and safeguards aging manufacturing assets against unexpected operational downtime.
The DSIH75VP 57310290-RD ABB Operator Keyboard may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB DSIH75VP 57310290-RD Operator's Keyboard INFO(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The ABB DSIH75VP 57310290-RD operator's keyboard features robust environmental ratings built to withstand the demands of heavy industrial control rooms. Designed to maintain structural and electrical integrity under continuous operation, the device safely functions within an ambient temperature range of 0 to +50 °C and can be stored without degradation from -20 to +70 °C. The hardened front panel assembly is engineered to repel dust, airborne oil particles, and moisture common to factory floors, maintaining smooth tactile responsiveness in non-condensing relative humidity levels ranging from 5% to 95%.
The ABB DSIH75VP 57310290-RD operator's keyboard is primarily applied as a localized human-machine interface (HMI) within heavy industrial process control and power generation facilities. It serves as the direct command input terminal for legacy ABB MasterPiece controllers and MasterView 800 centralized monitoring stations, enabling live parameter adjustment and system maintenance right from the factory floor. The durable unit is widely deployed in traditional pulp and paper mills, steel processing lines, and chemical treatment plants where operators require tactile, high-reliability keypads to manage multi-stage industrial machinery. Furthermore, it is extensively used as a critical drop-in engineering replacement part in mature distributed control system (DCS) retrofits to keep existing control room desks operational without needing a complete system overhaul.

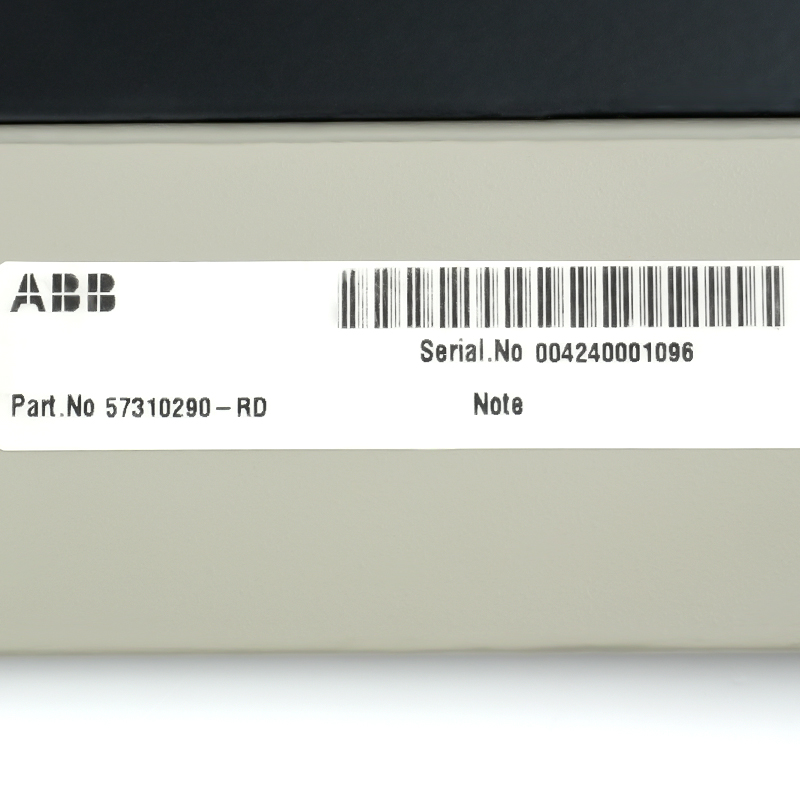

Match DSIH75VP and ABB part number 57310290-RD to the original HMI front panel. Key layout, ribbon connector and mechanical mounting must agree with the installed operator station.
