Features:
- Printed Wire Assembly (PWA) serving as an intelligent interface or control board for micro-sensor networks
- Built using a legacy 16 MHz processing architecture
- It directly intercepts and standardizes high-speed signal trajectories from continuous thickness or scanning roll material sensors
In industrial automation control architectures, this circuit board serves as a core bridge connecting the front-end measurement probes and the main control system, specifically responsible for processing extremely weak raw sensor signals from the field. It is typically mounted on the master node of the scanning station, close to the physical sensors, primarily to replace old and bulky transmitters, and to provide high-precision signal cascading, conditioning, and data preprocessing functions.
In terms of hardware compatibility and industrial protection, this circuit board integrates a wealth of electrical functions and supports multiple communication standards. It can seamlessly connect to "non-smart signals" in the field, such as bridge circuits, RTDs, or millivolt-level probes, and convert them into standard 4-20 mA current loops or digital bus data for easy recognition by the host system.
The 086339-001 ABB PWA, sensor micro-intelligent module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB 086339-001 PWA, sensor micro-intelligent module MANUAL(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The core working principle of the 086339-001 lies in its hardware signal conditioning, microprocessor digital correction, and weak signal isolation output. When the physical probe on the scanning gantry detects changes in paper thickness, humidity, or temperature, it generates a weak and noisy analog electrical signal.
This signal first enters the high-performance preamplifier and filter circuit on the interface board to eliminate high-frequency interference and achieve impedance matching. Subsequently, the onboard microprocessor uses built-in algorithms to perform high-precision analog-to-digital conversion, nonlinear correction, and real-time temperature compensation on the signal, converting it into a high-precision digital signal.
Finally, the conditioned data is fed back to the PLC or DCS main control system with an extremely low bit error rate via the onboard two-wire drive circuit or a dedicated industrial bus, thus achieving an efficient closed-loop conversion from "weak physical characteristics on site" to "precise digital instructions from the controller."
This spare part is commonly found in the underlying hardware control of ABB industrial robots or large rectifier/inverter drive systems (such as the ACS6000 series inverters, connected to other control boards).
Fault Warning: Intermittent failures of industrial PLCs and robot control boards are typically caused by transient overvoltages, undervoltages, or severe electromagnetic interference. If this module fails in the field, first check if the matched 24V DC power supply is stable; if the component is physically damaged, a spare part needs to be replaced, and it may be necessary to restore the internally stored initial configuration.

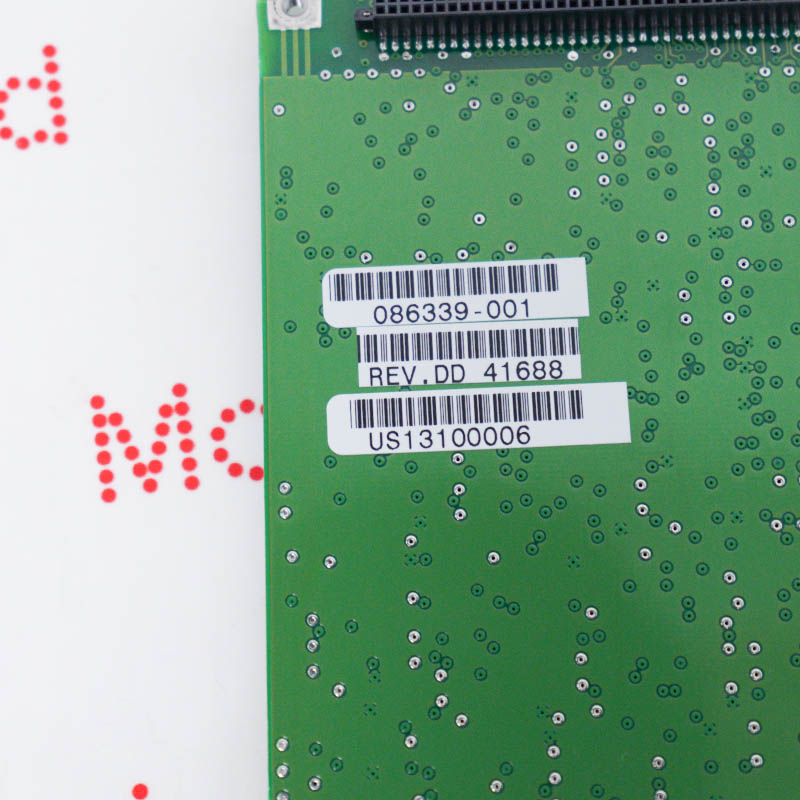

Use the complete 086339-001 part number and board revision when matching this Accuray sensor-interface PWA. Record the original channel and connector assignments before replacement.
