250 V Terminal Scope
Eight-Channel Fit
Safe Rewiring Control
Features:
- 1 x 8 screw signal terminals for the documented signal arrangement
- S800 I/O station mounting with module-key and wiring verification
- 250 V compact module termination unit for the confirmed installation

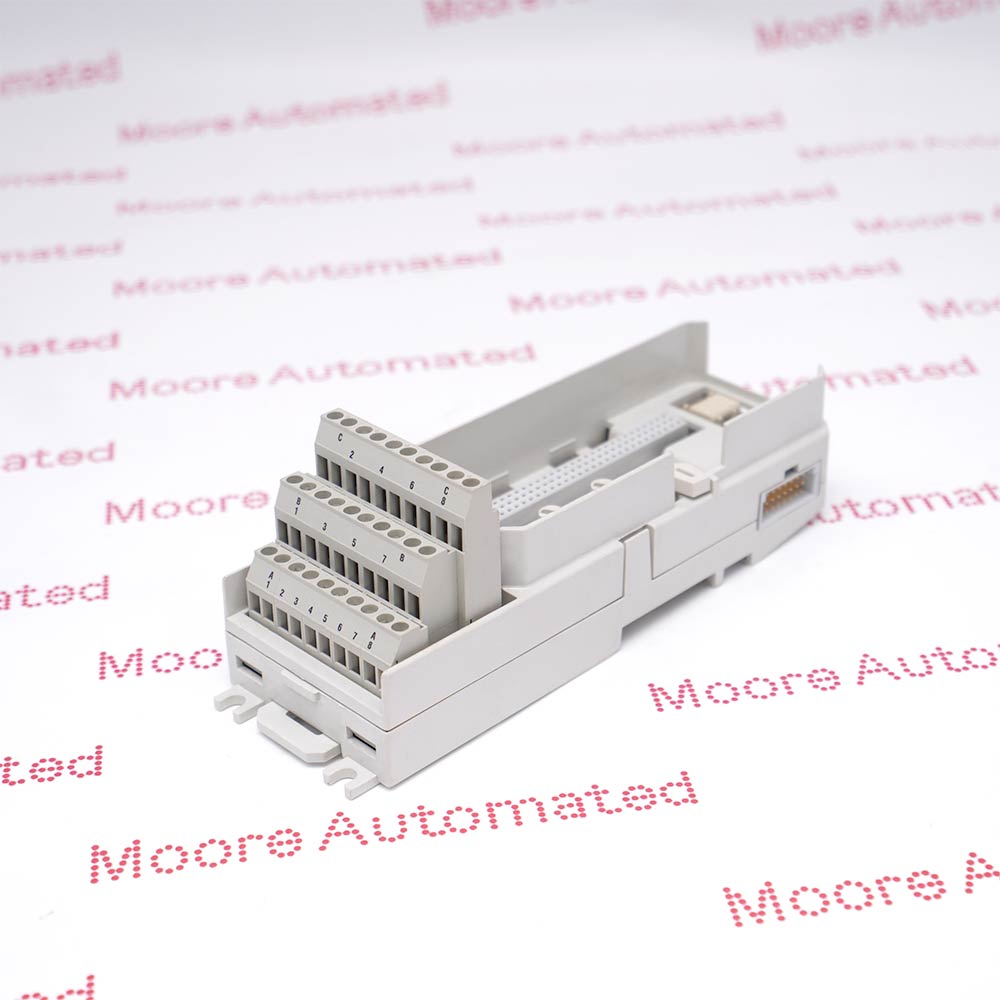

ABB identifies TU811V1 3BSE013231R1 as 250 v compact module termination unit for ABB S800 I/O. TU811V1 provides compact screw termination for eight S800 I/O channels in 250 V applications. The unit forms the mechanical and electrical base between the selected I/O module and the field wiring, so channel mapping, voltage class and terminal configuration must be preserved during service. The complete ordering identity is important because related units can differ in channel arrangement, termination design, interface function or supported system generation. Selection should therefore be based on the article number, nameplate and installed configuration rather than appearance alone.

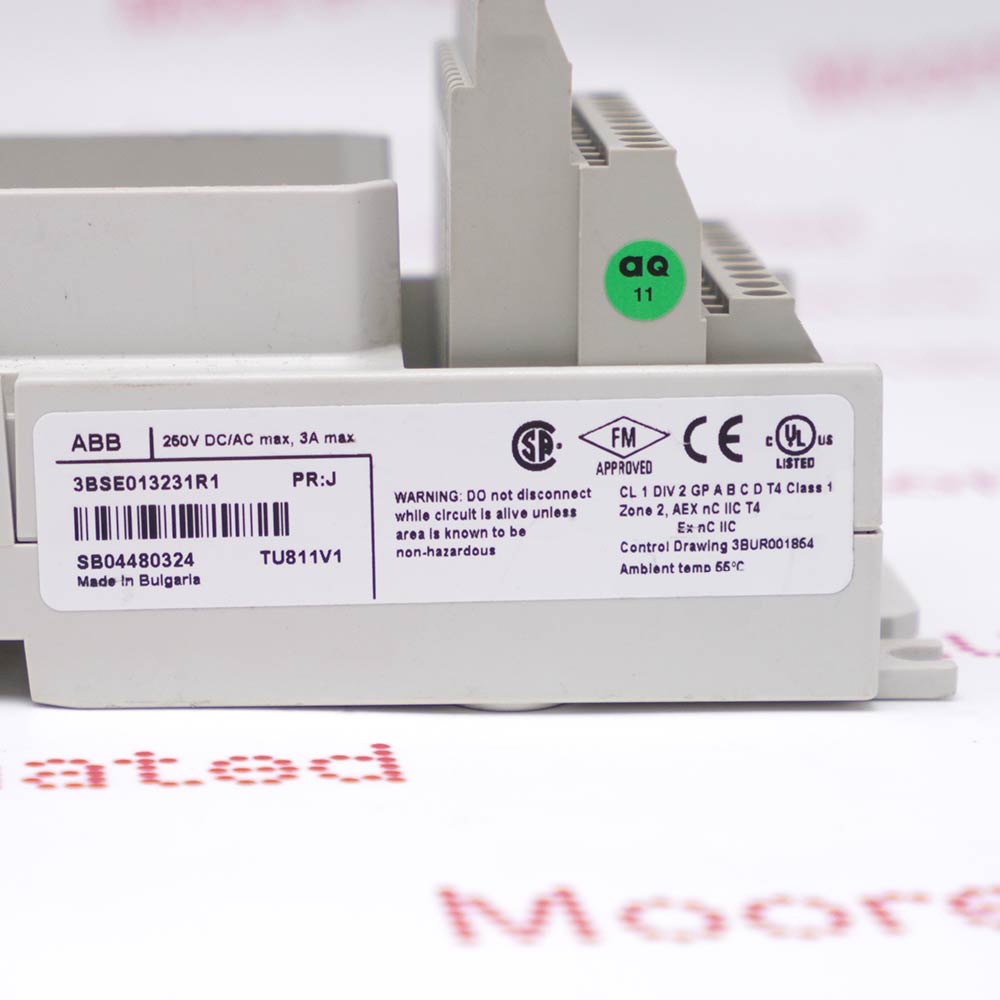

Technical content is limited to ABB S800 I/O System for Compact Product Suite data sheet. Final suitability is confirmed against the installed unit, nameplate and system records.
The ABB TU811V1 3BSE013231R1 250 V compact module termination unit is supported by Moore Automated for verified industrial replacement and spare-part requirements.
ABB TU811V1 3BSE013231R1 250 V compact module termination unit manual(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
250 V Terminal Scope
TU811V1 uses 1 x 8 screw signal terminals; preserve the documented terminal-bank organization and field-wire identification.
Eight-Channel Fit
Confirm the selected S800 I/O module, 8 arrangement, voltage class and any power, fuse or modem dependency before replacement.
Safe Rewiring Control
Isolate the station, photograph and label every conductor, compare the module key and terminal numbers, and follow ABB recommissioning checks.
