Core Attributes and Functions
Derivative Models
Power-System
Features:
- Control rack power supply module/single-phase switching power supply
- It is primarily installed in a standard modular installation unit (MMU)
- Responsible for converting externally input single-phase alternating current (AC) into high-precision, high-stability 24V direct current required by the system's internal components

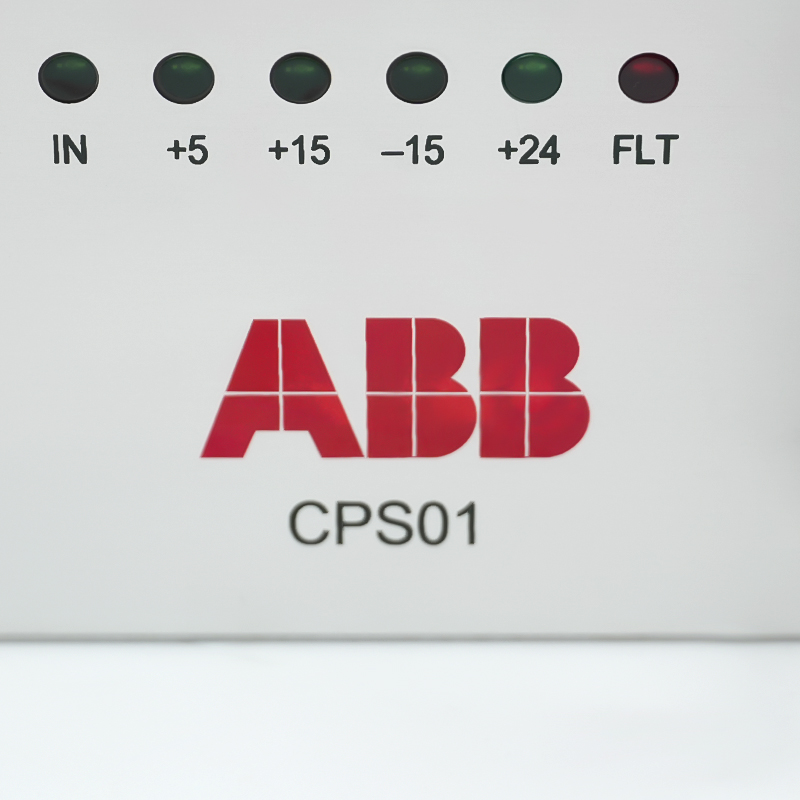

The ABB CPS01 (including common models such as CPS01-B) is a high-performance industrial-grade single-phase switching power supply module in the ABB Symphony series (derived from the Bailey Infi 90 system). As the core power support for distributed control systems (DCS), its main function is to efficiently convert external AC input into the stable, clean DC power required by the system (such as the commonly used 24VDC), thereby providing uninterrupted power to controllers, I/O modules, communication modules, and critical automation equipment in industrial environments.
This power module boasts superior electromagnetic interference (EMI) immunity and an extremely wide voltage range, ensuring absolute accuracy and stability of the output voltage even under conditions of power grid fluctuations, momentary power outages, or harsh industrial environments. Furthermore, it integrates comprehensive intelligent protection mechanisms, including overload protection, overvoltage protection, and overheat protection, and supports redundant configurations.
The CPS01 ABB Control Power Supply Unit may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB CPS01 Control Power Supply Unit INFO(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Hardware Definition: Control rack power module/single-phase switching power supply.
Main Task: Primarily installed in a standard modular unit (MMU), responsible for converting externally input single-phase AC power into the high-precision, high-stability 24V DC power required by internal system components (e.g., main controller, security/general-purpose I/O modules, communication modules, and display terminals).
High Reliability Design: Features excellent electromagnetic interference (EMI) immunity, outstanding thermal stability, overload protection, and voltage fluctuation protection circuitry, effectively reducing control system crashes or shutdowns caused by power instability.
On the field spare parts warehouse or equipment nameplate, you will typically see the following two specific model numbers:
1.CPS01-A: Primarily used in the control layer within control cabinets, providing a clean system-level power input for the underlying control cards and communication buses.
2.CPS01-B: Typically used as a rack-mount switching power supply, designed to provide independent power support for process control cabinets and human-machine interface terminals (such as operator workstations, display units, panels, etc.).
CPS01 is selected as part of the Bailey modular control-power arrangement rather than as a generic supply. Verify the MPS chassis location, connector keying and the installed INFI 90 or Symphony hardware record.
