Features:
- 15-Channel Analog Input Module
- Analog input channels: 15
- Resolution: 14 bit
- Current input range: 4 to 20 mA
- Voltage input ranges: 1–5 V, 0–1 V, 0–5 V, 0–10 V, -10 to +10 V
- Channel configuration: Individually programmable

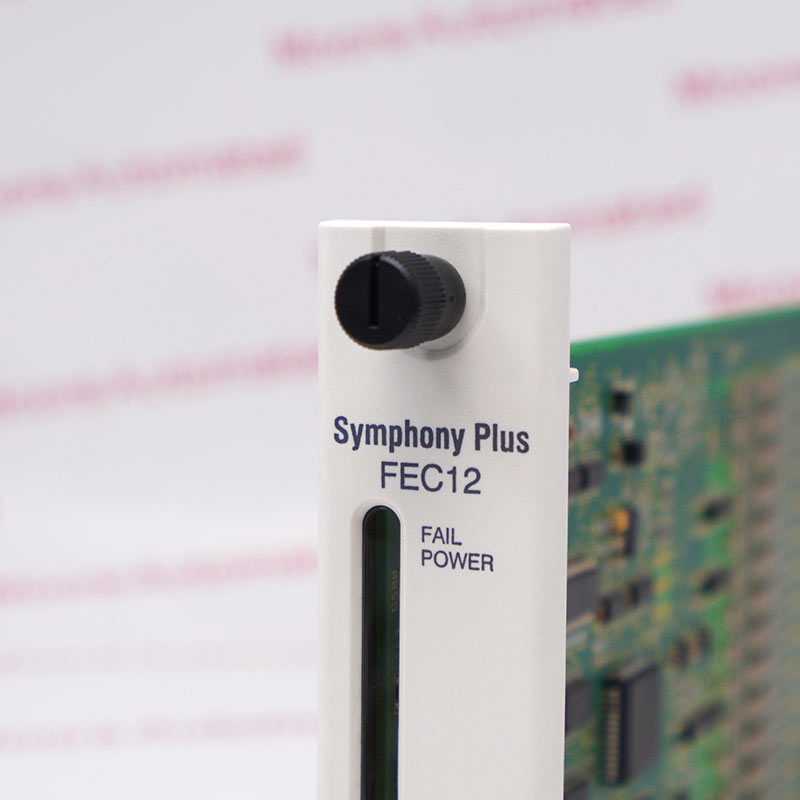

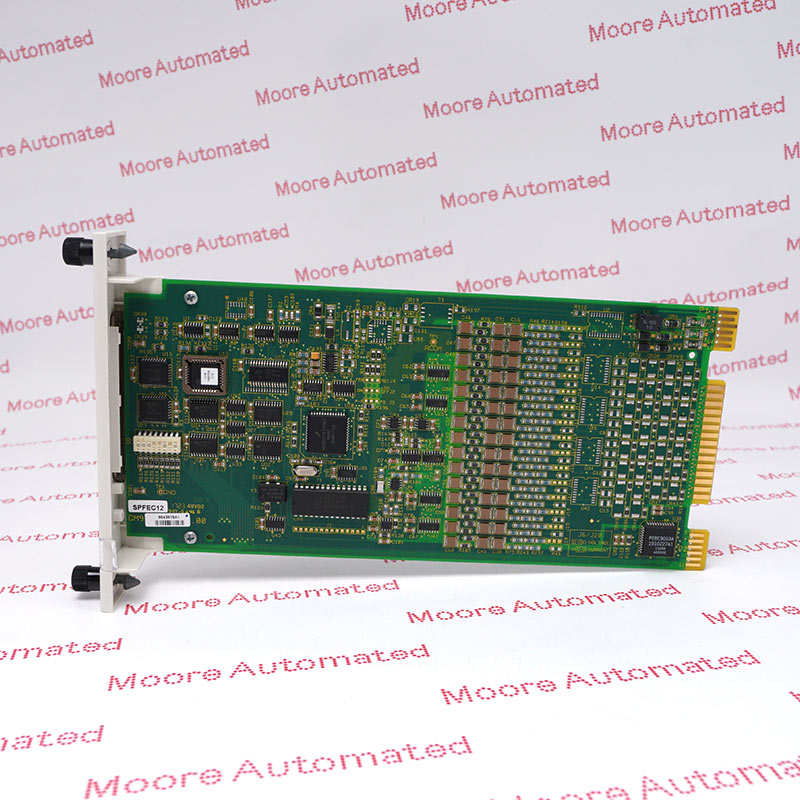

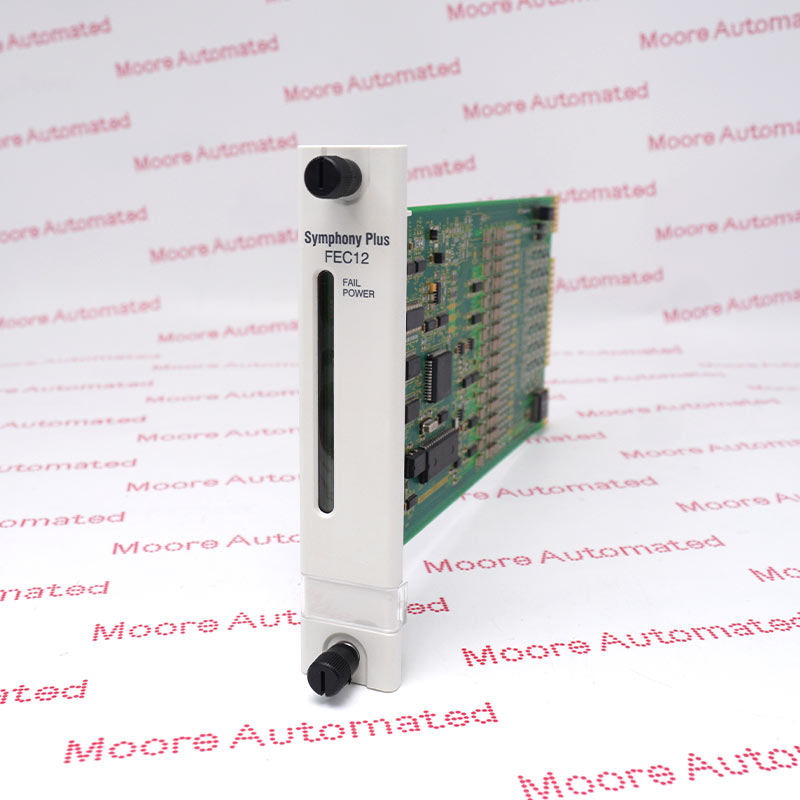

ABB SPFEC12 is a fifteen-channel analog input module for ABB Symphony Plus Harmony Rack systems. It converts conventional field-transmitter signals into digital values used by the controller.
SPFEC12 provides individually programmable channels with 14-bit resolution. ABB lists support for 4 to 20 mA inputs and common voltage ranges including 1 to 5 V, 0 to 1 V, 0 to 5 V, 0 to 10 V and bipolar -10 to +10 V.
ABB SPFEC12 works with the NTAI05 analog input termination unit in the HR Series architecture. Confirm input range, channel configuration, termination wiring, supply rails and controller database assignments before commissioning.
The SPFEC12 ABB 15-Channel Analog Input Module is supported as an Active/Available from OEM product, subject to exact configuration and stock confirmation.
ABB SPFEC12 15-Channel Analog Input Module Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Control Applications
- 15-Channel Analog Input Module
- ABB Symphony Plus HR Series
It acquires conventional transmitter and voltage signals for process measurements such as pressure, flow, level, temperature and equipment condition.
It is designed for ABB Harmony Rack systems and the NTAI05 termination unit; controller database, termination cable and signal-range configuration must match the installed application.
Performance Data
- Analog input channels: 15
- Resolution: 14 bit
- Current input range: 4 to 20 mA
- Voltage input ranges: 1–5 V, 0–1 V, 0–5 V, 0–10 V, -10 to +10 V
- Channel configuration: Individually programmable
- Termination unit: NTAI05
- Operating temperature: 0 to 70 °C
- Typical power: Approximately 1.1 W plus analog supply loading
The listed values are taken from the manufacturer documentation for
ABB SPFEC12. Confirm the complete order identity and hardware revision before replacement.
System Integration Notes
- Verify the complete order code
- Confirm system and termination compatibility
- Follow manufacturer handling guidance
Verify the selected current or voltage range on every channel, connect the NTAI05 termination assembly, check shield grounding and confirm scaling in the controller configuration before loop testing.
It is designed for ABB Harmony Rack systems and the NTAI05 termination unit; controller database, termination cable and signal-range configuration must match the installed application.
