      ABB TPC-1570H 3BHE031734R1011
      ABB TPC-1570H 3BHE031734R1011
      ABB TPC-1570H 3BHE031734R1011
      ABB TPC-1570H 3BHE031734R1011
      ABB TPC-1570H 3BHE031734R1011
      ABB TPC-1570H 3BHE031734R1011
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote

      TPC-1570H 3BHE031734R1011

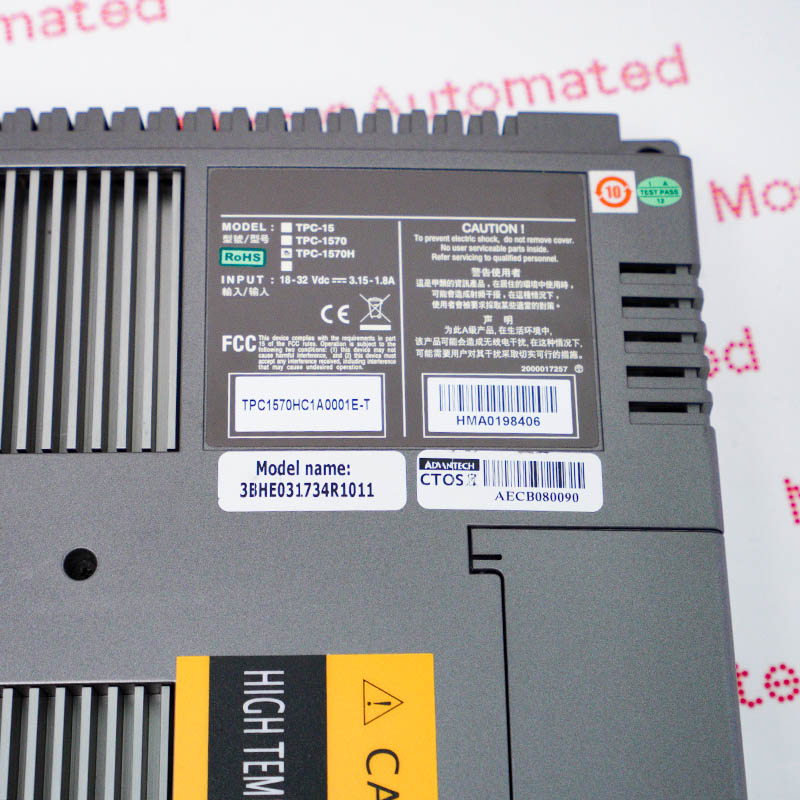

      LCD Touch Panel Computer
      In Stock
      Ships by Monday, June 22
      Fast Shipping Available

      Product Information:

      The TPC-1570H (ABB part number 3BHE031734R1011) is an ABB ruggedized industrial touchscreen computer and human-machine interface (HMI) based on the Advantech hardware platform. As a dedicated control and monitoring station, it is typically used in conjunction with ABB excitation systems, large motor control systems, and high-power drives.

      This device integrates dual Ethernet interfaces, multiple serial communication interfaces (including an RS-485 interface supporting automatic data flow control), and a CompactFlash storage expansion slot, providing stable and reliable hardware support for real-time data monitoring, graphical human-machine interaction, and motor operating status adjustment in harsh industrial environments.

      Warranty Policy
      We provide 1 year warranty for all remaining parts.
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      Return Notice
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
      Shiping Mode
      Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
      Parts Availability
      Moore automated offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
      Expand All
      Collapse all

      Technical specifications for TPC-1570H 3BHE031734R1011

      • Manufacturer:
        ABB
      • Product Category:
        HMI
      • Estimated shipping dimensions:
        38.3x6.8x30.8cm
      • Weight:
        5.24 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        SWEDEN
      • Place of shipment:
        Xiamen, Fujian, China
      • Mounting:
        Desktop, Wall or Panel Mount
      • Power Consumption:
        42 W (typical)
      • Power Input:
        18 ~ 32 VDC
      • Watchdog Timer:
        1 sec (system)
      • BIOS:
        Award® 4 MB
      • Enclosure Front bezel:
        Al-Mg Back housing: ABS + PC
      • Memory:
        512 MB DDR SDRAM (up to 1 GB)
      • Parallel Ports:
        1 x Parallel port
      • Display Type:
        XGA TFT LCD
      • Max. Colors:
        262 K
      • Light Transmission:
        Above 75%
      • Type:
        8-wire, analog resistive
      • Humidity:
        10 ~ 95% RH @ 40° C, non-condensing
      • Ingress Protection:
        Front panel: NEMA4, IP65
      • Operating Temperature:
        0 ~ 50° C (32 ~ 122° F)
      • Storage Temperature:
        -20 ~ 60° C (-4 ~ 140° F)
      • Vibration Protection:
        With HDD: 1 grms (5 ~ 500 Hz) (Operating, random vibration)
      • Stock:
        12
      Ask for Quote

      Alternative Names

      TPC 1570H 3BHE031734R1011 TPC1570H 3BHE031734R1011 TPC-I570H 3BHE03I734RI0II TPC-157OH 3BHEO31734R1O11 TPC-I570H 3BHE03I734RI0II TPC-157OH 3BHEO31734R1O11 TPC 1570H TPC1570H TPC-1570H-P1E TPC-1570H-P2E TPC-1570H-C1E TPC-1570H-C2E TPC-1570H-B1E TPC-1570H-SMKE TPC-1570H-WMKE 1757001317

      Information

      Overview Manuals Connectivity and Interfaces Ordering Information

      Features:

      • Intel® Pentium® M Processor up to 1.4 GHz on board
      • Supports Microsoft® Windows XP/CE and WinXPe
      • Automatic data flow control RS-485
      With a high quality TFT LCD display, TPC-1570H is designed with the Intel Pentium M 1.4 GHz/Celeron® M 1 GHz processor as its core. The Intel Pentium M/Celeron has low power consumption and 1.4 GHz/1 GHz operating frequency.

      This system is fanless although the kernel is powerful. In addition, spindle-free storage makes the TPC-1570H a durable and reliable platform. For applications where spindle-free storage is not critical, a fast-access HDD module can be used. The rich I/O portfolio meets diverse requests.

      The TPC-1570H 3BHE031734R1011 ABB LCD Touch Panel Computer may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
      ABB TPC-1570H 3BHE031734R1011 LCD Touch Panel Computer manual(Datasheets), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      This computer features bottom-mounted, industrial-grade I/O cabling to protect connections in harsh environments:
      Network: Dual LAN configuration (one 10/100Base-T port and one Gigabit Ethernet port).
      Serial Protocols: Two RS-232 ports and one isolated RS-232/485/422 serial interface.
      Storage Options: Equipped with one CompactFlash slot and supports optional internal 2.5-inch hard drives.
      TPC-1570H-P1E: 15" XGA TFT LCD with Intel Pentium M 1.4 GHz CPU,512 MB DDR SDRAM
      TPC-1570H-P2E: TPC-1570H-P1E with 1 GB DDR SDARM
      TPC-1570H-C1E: 15" XGA TFT LCD with Intel Celeron M 1 GHz CPU,512 MB DDR SDRAM
      TPC-1570H-C2E: TPC-1570H-C1E with 1 GB DDR SDARM
      TPC-1570H-B1E: 15" XGA TFT LCD with Intel Celeron M 600 MHz CPU,512 MB DDR SDRAM
      TPC-1570H-SMKE: TPC-1570H Desktop Stand
      TPC-1570H-WMKE: TPC-1570H Wallmount Kit 1757001317 19 V 72 W AC-DC Power Adapter


      Manuals

      Technical notes

      The ABB TPC-1570H (hardware code: 3BHE031734R1011) is a 15-inch XGA high-quality thin-film transistor (TFT) LCD touchscreen industrial computer (human-machine interface, HMI) designed for large industrial drives, excitation systems, or medium to large-scale control systems. This device is primarily used as a control terminal (MCU/drive control unit) for motors or drive systems. Its core is based on the x86 architecture (equipped with an Intel Pentium M or Celeron M processor), employs a fanless passive cooling design, and features an aluminum-magnesium alloy panel that meets NEMA4/IP65 protection standards.
