Features:
- Thirty-two 24 VDC sink/source digital input points.
- 10 to 30 VDC operating range at 30 °C, derated at higher temperature.
- Maximum 170 mA CompactBus current at 5 VDC.

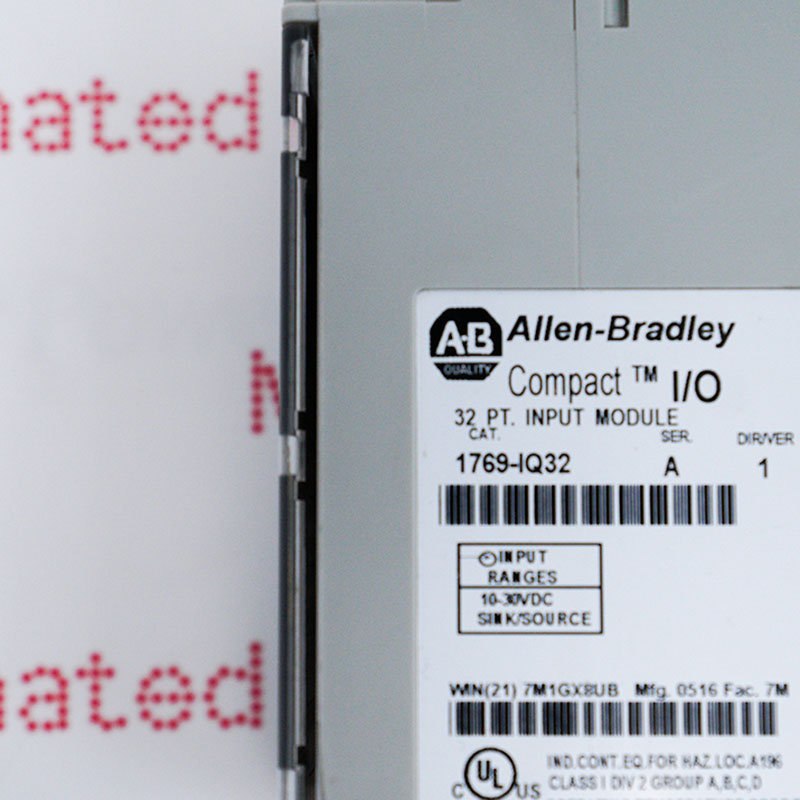

1769-IQ32 is a high-density Allen-Bradley Compact I/O digital input module. The complete catalog and series, input common arrangement, field voltage, controller support and available bus current must match the installed system.
Before replacement, record the label, slot, terminal wiring, commons, field supply, input filter and project configuration. After installation, test every input channel, diagnostics and controller interlock under the approved commissioning procedure.
The 1769-IQ32 Allen-Bradley 32-point 24 VDC sink/source input module is listed as Active / Available from OEM. Current revision, availability and supplied scope are confirmed in the written quotation.
Allen-Bradley 1769-IQ32 documentation and reference links.
Important Notice: Confirm the complete order identity, hardware execution, receiving-system configuration and required document revision before replacement.
The module provides 32 individually wired 24 VDC sink/source inputs. Its operating range is 10 to 30 VDC at 30 °C and 10 to 26.4 VDC at 60 °C.
Preserve every terminal assignment, common group and field-supply polarity. The replacement wiring must follow the controlled panel drawings.
Confirm the receiving controller, slot allocation and available CompactBus current for the installed 1769 bank.
