Features:
- Power supply module designed for the SLC 500 series
- Can operate with an input voltage of 120/240V AC and provides multiple output currents
- Supplying 5 Amps at 5V DC and 0.96 Amps at 24V DC

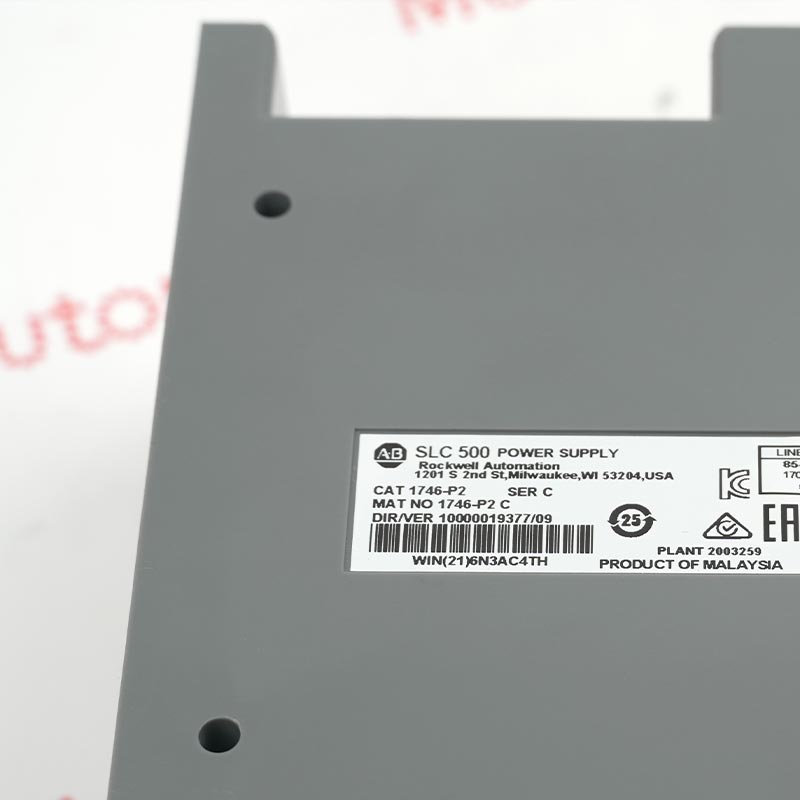

The Allen Bradley 1746-P2 is a power module specifically designed for the SLC 500 series. It supports 120V or 240V AC input voltage to accommodate various electrical configurations. For output, the module offers two options: 5V DC 5A and 24V DC 0.96A to meet different operational requirements.
Furthermore, the 1746-P2 module operates stably at 95% relative humidity, ensuring stability and reliability under various operating conditions. This power module is a key component ensuring the efficient operation of the SLC 500 series, thus supporting the operation of industrial automation systems.
The 1746-P2 Allen Bradley SLC 500 Power Supply Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen Bradley 1746-P2 SLC 500 Power Supply Module manual(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
In terms of installation, the module features a chassis-mount design, ensuring safe and stable operation in rack-mount systems. It is suitable for environments with significant temperature variations, operating stably within a temperature range of 0°C to 60°C. For storage, it has an even wider operating temperature range, functioning normally from -40°C to 85°C.
The 1746-P2 features an integrated safety fuse to prevent short circuits. Depending on the specific production series of your hardware, this fuse may be a user-replaceable 3A, 250V time-delay fuse (such as a Bussmann AGC 3 or Sano SOC SD4) or it may be soldered directly onto the circuit board.
