Features:
- Proximity Probe Housing Assemblies
- Aluminum body with 304 stainless steel sleeve
- 21000, 24701, and 164818 Proximity Probe Housing Assemblies
The 21000 and 24701 Proximity Probe Housing Assemblies are available with Canadian Standards Association (CSA) approvals. They are rated explosion proof for hazardous areas. Bently Nevada offers a probe support and oil seal (part number 37948-01) for long sleeves that must go through an inner bearing housing.
To externally mount proximity probes, use one of these allmetal Proximity Probe Housing Assemblies: 21000 aluminum probe housing assembly; 24701 stainless steel probe housing assembly The 21000 and 24701 Proximity Probe Housing Assemblies consist of the following parts:A dome cover that screws into the body of the housing; Threaded ports for conduit connections; A probe sleeve of optional length; 0-rings; A reverse mount proximity probe; A thread seal; Optional conduit fittings; An optional standoff adapter.

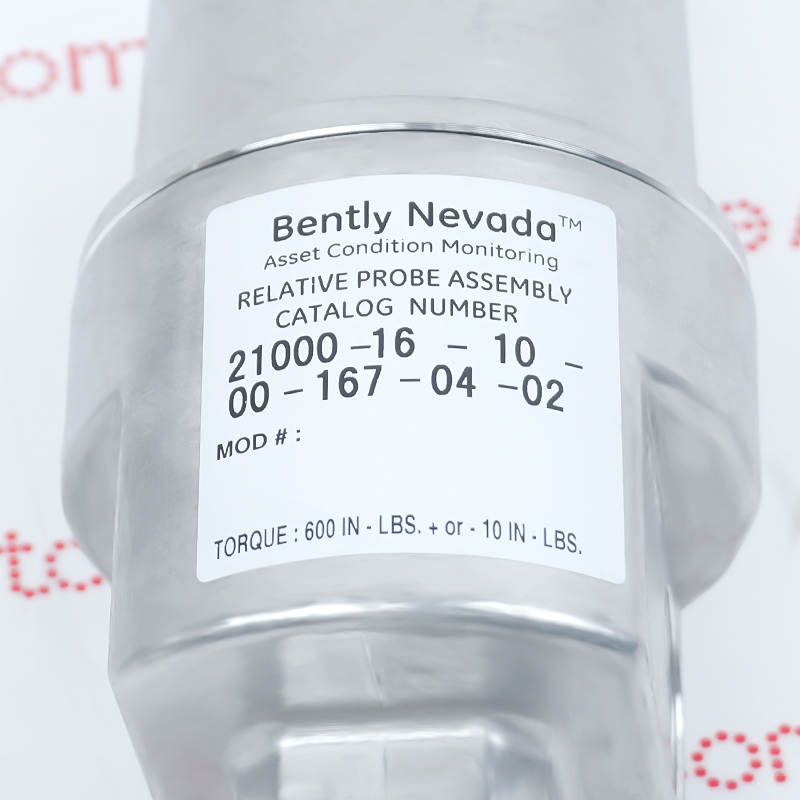

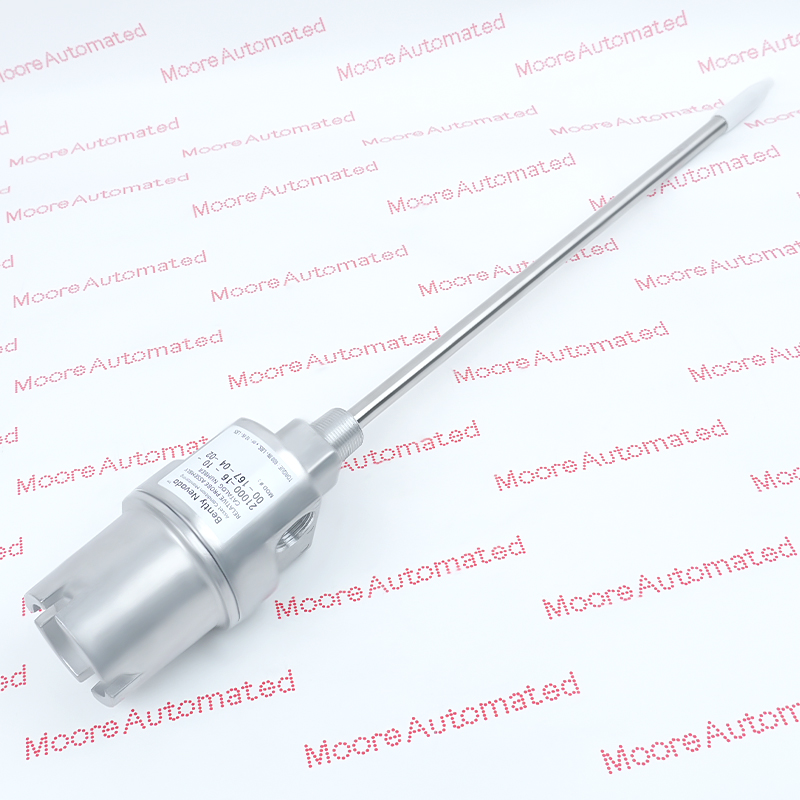

The 21000-16-10-00-167-04-02 Bently Nevada Proximity Probe Housing Assemblies may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 21000-16-10-00-167-04-02 Proximity Probe Housing Assemblies Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Model: 21000-16-10-00-167-04-02
- Warranty: One-year warranty
- Condition: Brand new, original, in stock
- Product Family: 21000, 24701, and 164818 Proximity Probe Housing Assemblies
Proximity Probe Housing Assemblies
21000-Axx-Bxx-Cxx-Dxxx-Exx-Fxx
A: Probe with Connector
00: Probe not required
14: 420 nuclear
16: 3300 XL 8mm probe
26: 3300 XL NSv probe
27: 3300 XL NSv probe, selectable hazardous area approvals
28: 3300 XL 8mm probe, selectable hazardous area approvals
29: 3300 XL 11mm probe
30: 3300 XL 11mm probe, selectable hazardous area approvals
31: 3300 XL NSv probe with connector protector
32: 3300 XL NSv probe with connector protector, selectable hazardous area approvals
33: 3300 XL 8mm probe with connector protector
34: 3300 XL 8mm probe with connector protector, selectable hazardous area approvals
35: 3300 XL 11mm probe with connector protector
36: 3300 XL 11mm probe with connector protector, selectable hazardous area approvals
37: 3300 XL 8mm probe, ETR, selectable hazardous area approvals (available for 21000 only)
B: Probe Cable Length
00: Probe cable not required
05: 0.5 m (20 in)
10: 1.0 m (39 in)
12: 12.0 in
18: 18.0 in
24: 24.0 in
30: 30.0 in
36: 36.0 in
C: Standoff Adapter (Option C Dimension)
15: Minimum length 1.5 in (38 mm)
75: Maximum length 7.5 in (191 mm)
Examples
1.5 in (38 mm) = 15
No standoff adapter = 00
D: Probe Penetration (Option D Dimension)
10: Minimum length 1.0 in (25.4 mm)
Examples
3.7 in (94 mm) = 037
22.4 in (569 mm) = 224
E: Fittings
00: Without fittings
01: One 3/4-14 NPT explosion-proof fitting; One 3/4-14 NPT plug
02: Two 3/4-14 NPT explosion-proof fittings
03:One 3/4-14 NPT plug; One 3/4-14 to 1/2-14 NPT reducer; One cable seal grip with grommets for; the following cable sizes:
• 1/8 to 3/16 inches
• 1/4 to 5/16 inches
• 5/16 to 3/8 inches
04: One 3/4-14 NPT plug only
F: Mounting Thread
01: As cast without threads
02: 3/4-14 NPT
04: 1/2-14 BSP
1.Medium to large bearing housing deep hole measurement: Featuring an extra-long 16.7-inch (nearly 43.5 cm) sleeve design, specifically designed to penetrate extremely thick mechanical housings, double-walled shells, or deep-hole oil seals. The probe must penetrate deep into the internal space to accurately contact the rotating shaft near the internal bearing.
2.Large centrifugal compressors and flue gas turbines: In these types of equipment, due to their heavy external cylinders or high-pressure housings and complex internal flow channels, sensors require extremely long physical depths to reach the radial or axial thrust measurement points.
3.Advanced Unit Condition Monitoring System (TSI) upgrade/maintenance: This component uses the older, classic 3300 model 8 mm probe (Option 16), whose linear range matches that of the older 3300 model proximity probe. The most common application is field replacement of spare parts for large, critical rotating machinery that has been in operation for 10 to 20 years or more and has not yet been fully upgraded to the 3300 XL system.
