Features:
- 8 mm Standard Mount Probe
- 7200 Proximity Transducer Systems 5 mm and 8 mm
- Noncontacting, gap-to-voltage transducer systems
An improved 8 mm version of the 7200 System is now standard which includes Bently Nevada's Cable LoC™ feature. This new technique of securing the coaxial cable to the probe tip provides the strongest junction yet offered by Bently Nevada and increases the durability of the probe during installation and usage. Two new cable length options are now available on 8 mm probes.
They are 5 metres and 9 metres of integral cable. Since the entire lead-length is built into the probe, an extension cable is not used with these length options. Nine probe configurations are available to accommodate English and metric thread requirements. The 5 mm probes are constructed of fiberglass. The 8 mm probes are constructed of polyphenylene sulfide, (PPS), a high performance plastic capable of withstanding unusually harsh, wet and/or chemical environments. Both transducers are suitable for use in a confined space and offer 80 mils (2 mm) of linear range with a scale factor of 200 mV/mil (8 V/mm).
The 21508-02-12-05-02 Bently Nevada 8 mm Standard Mount Probe may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 21508-02-12-05-02 8 mm Standard Mount Probe Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

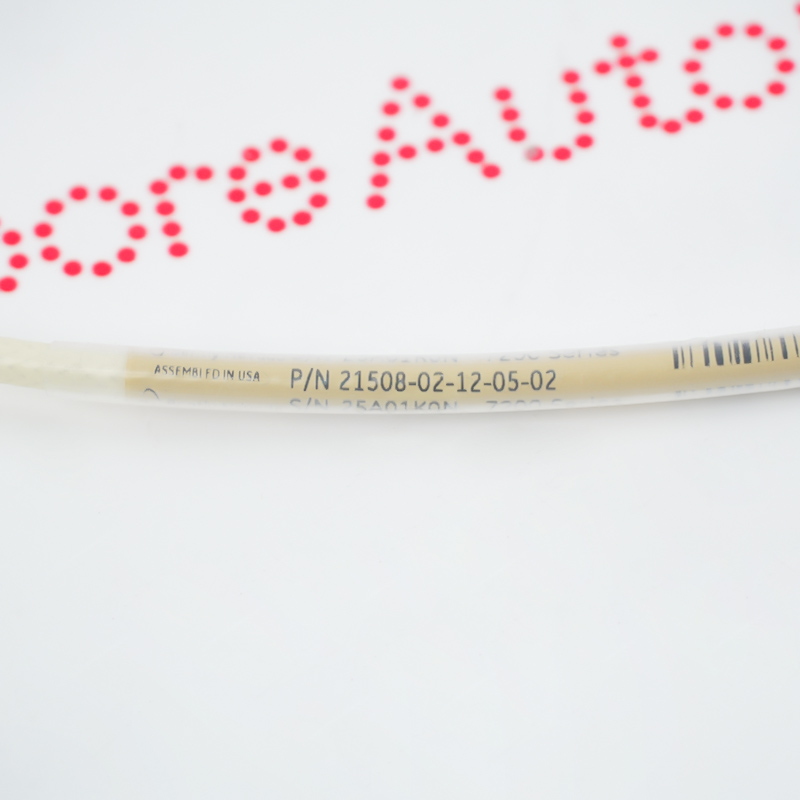

- Model: 21508-02-12-05-02
- Warranty: One-year warranty
- Condition: Brand new, original, in stock
- Product Family: 7200 Proximity Transducer Systems 5 mm and 8 mm
8 mm Reverse Mount Probe
21508-02-12-Cxx-Dxx
Option Description
C: Total Cable Length
05: 0.5 metre (20 inches).
Tolerance: +.13 metre, -05 metre (+5 inches, -2 inches).
10: 1.0 metre (39 inches).
Tolerance: +.25 metre, -.10 metre (+10 inches, -4 inches).
50: 5 metre (195 inches).
Tolerance: +.6 metre, -.5 metre (+24 inches, -20 inches).
90: 9 metre (351 inches).
Tolerance: +1.0 metre, -.9 metre (+39 inches, -35 inches).
D: Connector Option
00: Without connector.
02: With miniature male coaxial connector.
