Features:
- Dedicated Ethernet/RS485 I/O module for the Bently Nevada 3500/92 Communication Gateway rear slot.
- 10 Mbps IEEE 802.3 Ethernet through RJ-45 10BASE-T with Ethernet TCP/IP and Modbus/TCP support.
- Serial Modbus RTU communications through RS485 for integration with documented plant host systems.

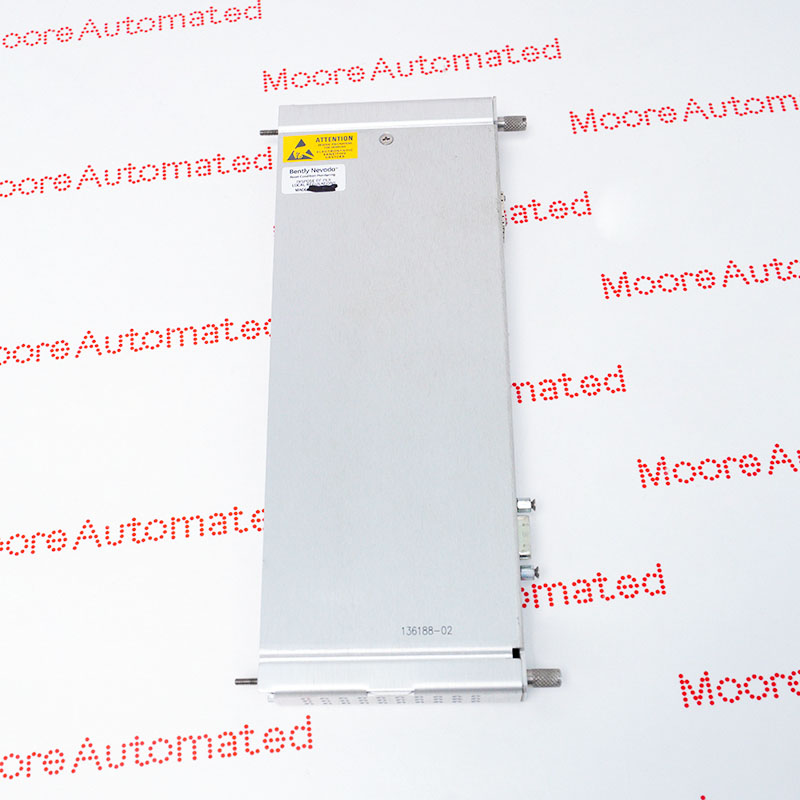

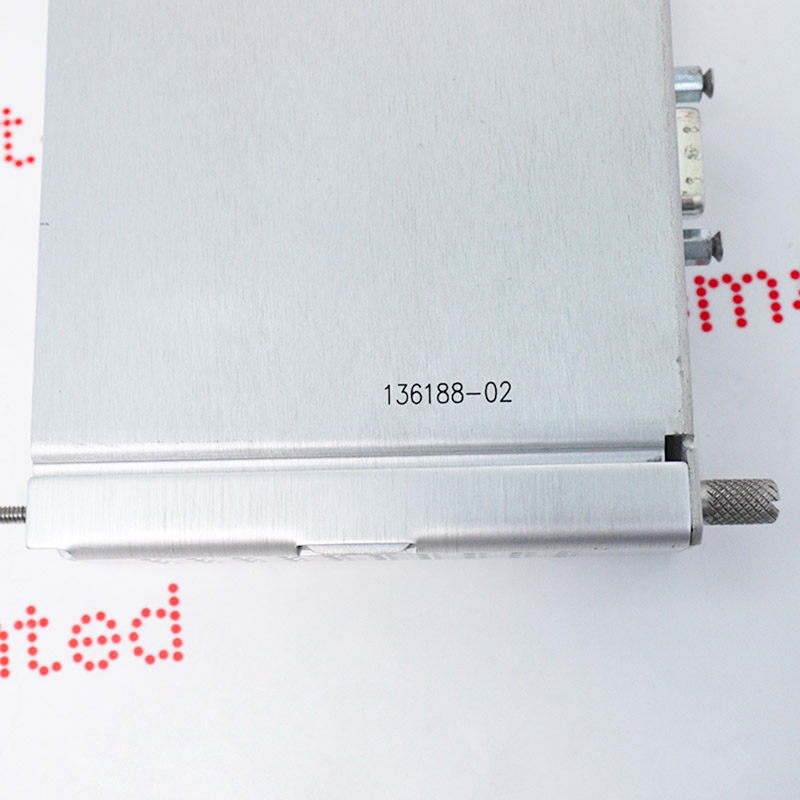

Bently Nevada 136188-02 provides the external communications interfaces used by the 3500/92 gateway to transfer configured rack data. Its part number, main gateway module, rack slot and protocol settings must remain matched during replacement.
Official source: Baker Hughes Bently Nevada. Values are taken from 3500/92 Communication Gateway datasheet 141542, revision N.
Bently Nevada 136188-02 Ethernet/RS485 Modbus I/O module technical documentation and related internal resources
Important Notice: Other accessories, manuals, cables, calibration data and software are not included unless listed in the item description. All prices are shown in USD.

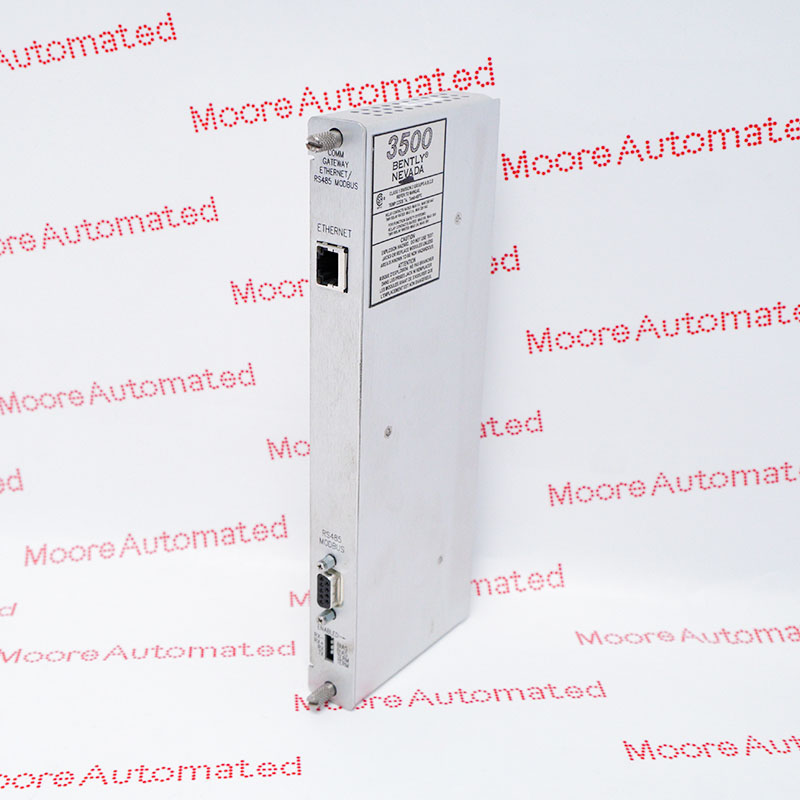

The 136188-02 Ethernet interface operates at 10 Mbps to IEEE 802.3 and uses an RJ-45 10BASE-T connection. The 3500/92 gateway supports Ethernet TCP/IP and Modbus/TCP, allowing configured rack data to be exchanged with compatible control, historian or gateway hosts.
Confirm network addressing, protocol selection and the plant-side communications design against the current gateway configuration before service.
The RS485 interface supports serial Modbus RTU, while the Ethernet interface supports Modbus/TCP. The 3500/92 main module determines register mapping and communications behavior, so replacement of 136188-02 must preserve the documented port settings, addressing and host map.
Record the live configuration before removing the module and validate communication after reinstallation.
Install 136188-02 in the full-height rear slot assigned to the 3500/92 gateway I/O module. Confirm the main-module part number, rear-slot keying, Ethernet or RS485 cabling and configured protocol before power is restored.
The published operating range is −30 to +65 °C with 95% noncondensing humidity; preserve rack ventilation, grounding and cable routing during maintenance.
