Features:
- The documented value for unthreaded length option is 6.0 in; confirm the installed mounting interface, available reach and mechanical clearance before replacement.
- The documented value for overall case length option is 9.6 in; retain this dimension when checking mounting geometry, routing and compatibility with the installed hardware.
- The documented value for total length option is 1.0 meter (3.3 feet); retain this dimension when checking mounting geometry, routing and compatibility with the installed hardware.

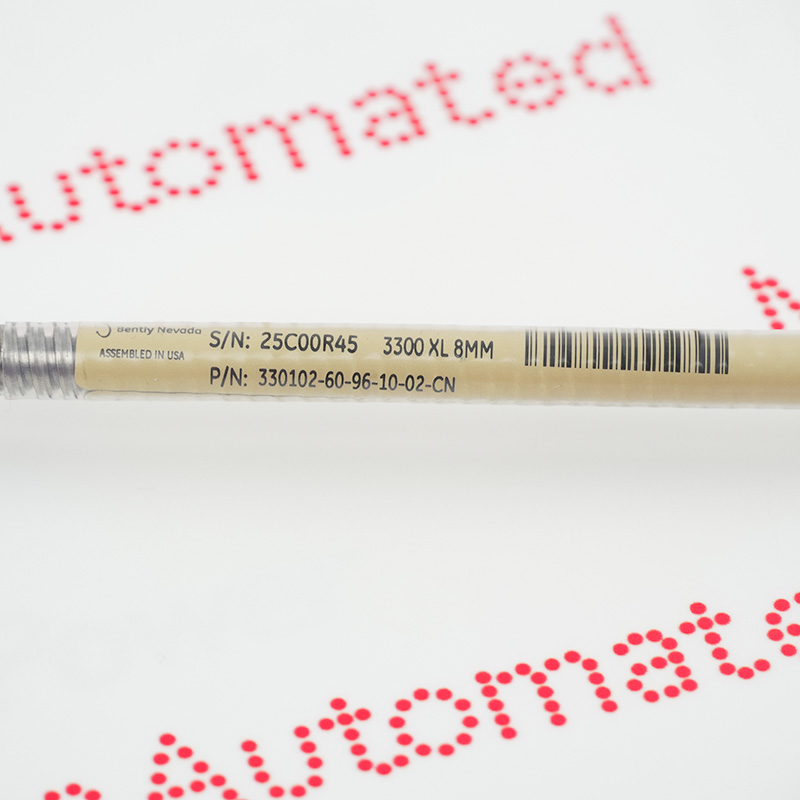

330102-60-96-10-02-CN is a Bently Nevada 3300 XL 8 mm Proximity Probe for the 3300 system. It measures shaft vibration or position without contact in a matched transducer chain. Key specifications: Unthreaded Length Option: 6.0 in; Overall Case Length Option: 9.6 in. Match the full order code and hardware before replacement.
Confirm the complete 330102-60-96-10-02-CN order code, installed signal chain, mounting arrangement and commissioning record before replacement.
The exact 330102-60-96-10-02-CN execution must be confirmed by its complete order code, condition, connected 3300 system and included scope before purchase or replacement.
Bently Nevada 330102-60-96-10-02-CN 3300 XL 8 mm Proximity Probe manual (Datasheet), Link
Important Notice: Confirm the complete order code, hardware execution and connected system before replacement. Accessories, cables, calibration data, software and certificates are included only when stated in the written quotation.
Preserve every option block of 330102-60-96-10-02-CN. Retained facts: Unthreaded Length Option: 6.0 in; Overall Case Length Option: 9.6 in; Total Length Option: 1.0 meter (3.3 feet). Mechanical length, thread, cable/connector and approval suffixes are part of the exact probe identity.
Match probe family, electrical length, extension cable and Proximitor Sensor. Confirm target material, available travel, nearby probe spacing and mounting geometry before exchange.
Set the operating gap from live bias voltage, support the cable above its bend limit and verify runout, vibration or position response against the commissioning baseline.
