Features:
- The documented value for cable length is 8.0 meters (26.2 feet); retain this dimension when checking mounting geometry, routing and compatibility with the installed hardware.
- The documented value for connector protector and cable is Armored cable with connector protector; verify the connector interface, electrical length and matching 3300 signal-chain components before commissioning.
- The documented value for agency approval is Approvals country specific; the complete approval suffix must match the installation area and site requirements.

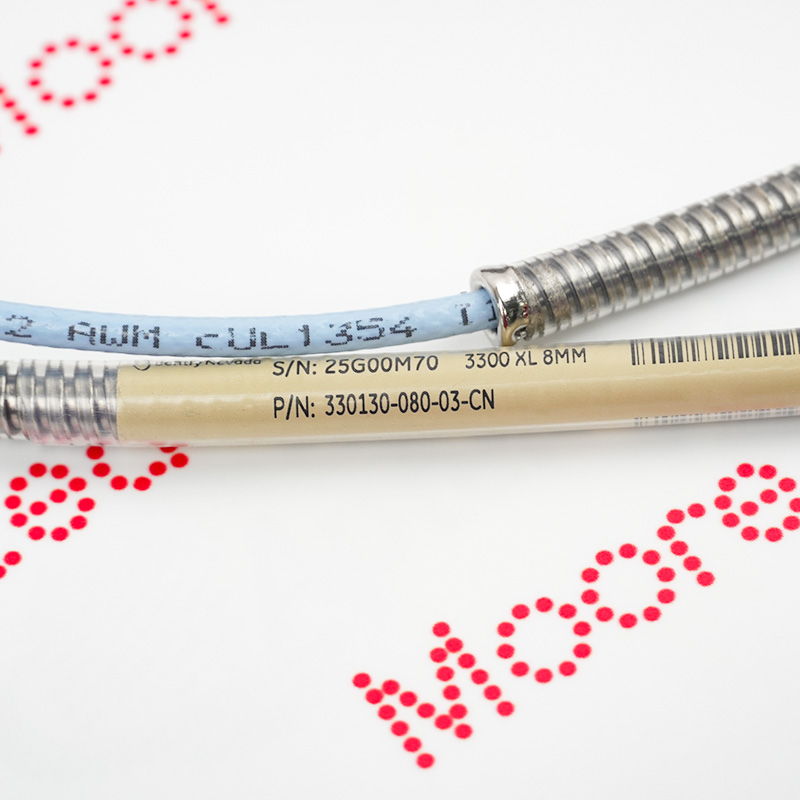

330130-080-03-CN is a Bently Nevada 3300 XL Standard Extension Cable for the 3300 system. It connects the probe to a compatible Proximitor Sensor. Key specifications: Cable Length: 8.0 meters (26.2 feet); Agency Approval: Approvals country specific. Match the full order code and hardware before replacement.
Confirm the complete 330130-080-03-CN order code, installed signal chain, mounting arrangement and commissioning record before replacement.
The 330130-080-03-CN Bently Nevada 3300 XL Standard Extension Cable may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330130-080-03-CN 3300 XL Standard Extension Cable manual (Datasheet), Link
Important Notice: Confirm the complete order code, hardware execution and connected system before replacement. Accessories, cables, calibration data, software and certificates are included only when stated in the written quotation.
Review 330130-080-03-CN by complete length and construction code. Retained facts: Cable Length: 8.0 meters (26.2 feet); Connector Protector and Cable: Armored cable with connector protector; Agency Approval: Approvals country specific. Do not change the calibrated total system length when replacing an extension or integral lead.
Match every connector, protector, armor or FluidLoc option and the receiving probe/Proximitor Sensor. Route the cable without sharp bends, crushing, connector side-load or contamination.
Inspect continuity and insulation where applicable, seat the connectors, compare channel bias with the recorded value and confirm stable vibration or position response before release.
