Features:
- The documented value for mounting thread is M10 x 1 threads; confirm the installed mounting interface, available reach and mechanical clearance before replacement.
- The documented value for total length is 1.0 meter (3.3 feet); retain this dimension when checking mounting geometry, routing and compatibility with the installed hardware.
- The documented value for connector is Miniature ClickLoc coaxial connector; verify the connector interface, electrical length and matching 3300 signal-chain components before commissioning.

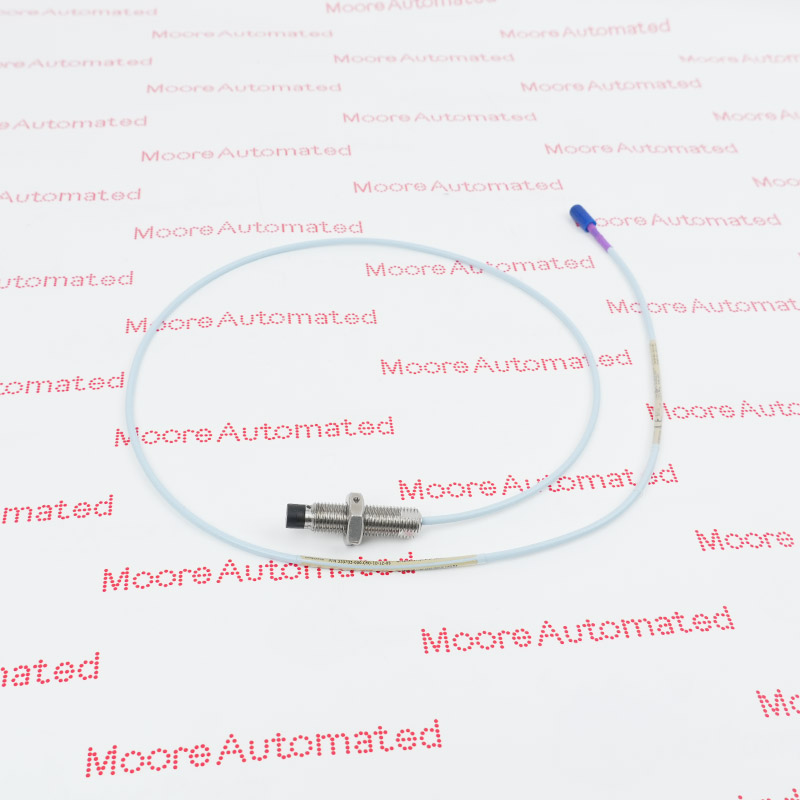

330706-005-46-10-02-00 is a Bently Nevada 3300 XL 11 mm Reverse Mount Probe for the 3300 system. It measures shaft vibration or position without contact in a matched transducer chain. Key specifications: Mounting thread: M10 x 1 threads; Total Length: 1.0 meter (3.3 feet). Match the full order code and hardware before replacement.
Confirm the complete 330706-005-46-10-02-00 order code, installed signal chain, mounting arrangement and commissioning record before replacement.
The exact 330706-005-46-10-02-00 execution must be confirmed by its complete order code, condition, connected 3300 system and included scope before purchase or replacement.
Bently Nevada 330706-005-46-10-02-00 3300 XL 11 mm Reverse Mount Probe manual (Datasheet), Link
Important Notice: Confirm the complete order code, hardware execution and connected system before replacement. Accessories, cables, calibration data, software and certificates are included only when stated in the written quotation.
Preserve every option block of 330706-005-46-10-02-00. Retained facts: Mounting thread: M10 x 1 threads; Total Length: 1.0 meter (3.3 feet); Connector: Miniature ClickLoc coaxial connector. Mechanical length, thread, cable/connector and approval suffixes are part of the exact probe identity.
Match probe family, electrical length, extension cable and Proximitor Sensor. Confirm target material, available travel, nearby probe spacing and mounting geometry before exchange.
Set the operating gap from live bias voltage, support the cable above its bend limit and verify runout, vibration or position response against the commissioning baseline.
