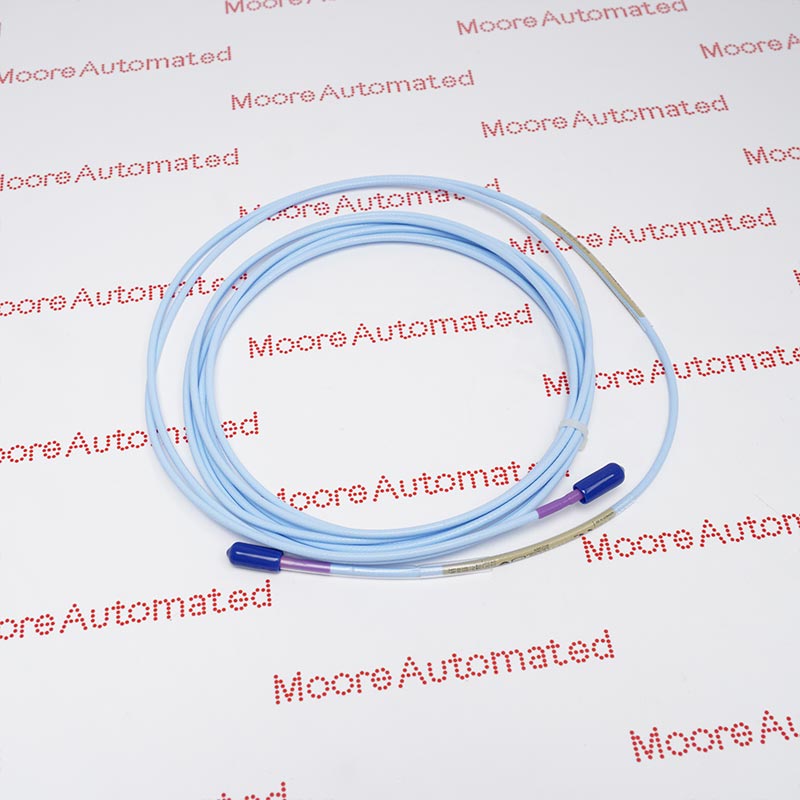

- 3300 XL 11 mm Extension Cable
- 3300 XL 11 mm Proximity Transducer System
- Make sure that the extension cable length and the probe length, when added together
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.
The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required.
The 330730-080-13-05 Bently Nevada 3300 XL 11 mm Extension Cable may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330730-080-13-05 3300 XL 11 mm Extension Cable Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL 11 mm probe comes in varying probe case configurations, including armored and unarmored ½-20, 5⁄8 -18, M14 X 1.5 and M16 X 1.5 probe threads. The reverse mount 3300 XL 11 mm probe comes standard with either 3⁄8-24 or M10 X 1 threads. All components of the transducer system have gold-plated brass ClickLoc connectors. ClickLoc connectors lock into place, preventing the connection from becoming loose.
- Extended Range Measurement: This system can be used when the linear measurement range of the standard 8 mm probe is insufficient. The 11 mm probe tip provides an even longer linear measurement range, reaching 4.0 mm (160 mils).
- Axial (Thrust) Position: Monitors the thrust position of the shaft in large steam turbine generators and centrifugal compressors to prevent catastrophic collisions between rotating and stationary components.
- Radial Vibration: Measures shaft vibration in hydrodynamic bearing machinery, particularly suitable for large hydro turbine applications.
- Differential Expansion: Monitors the relative motion between the turbine rotor and casing. Reciprocating Compressors: Used to measure piston rod drop or piston rod position.
