Features:

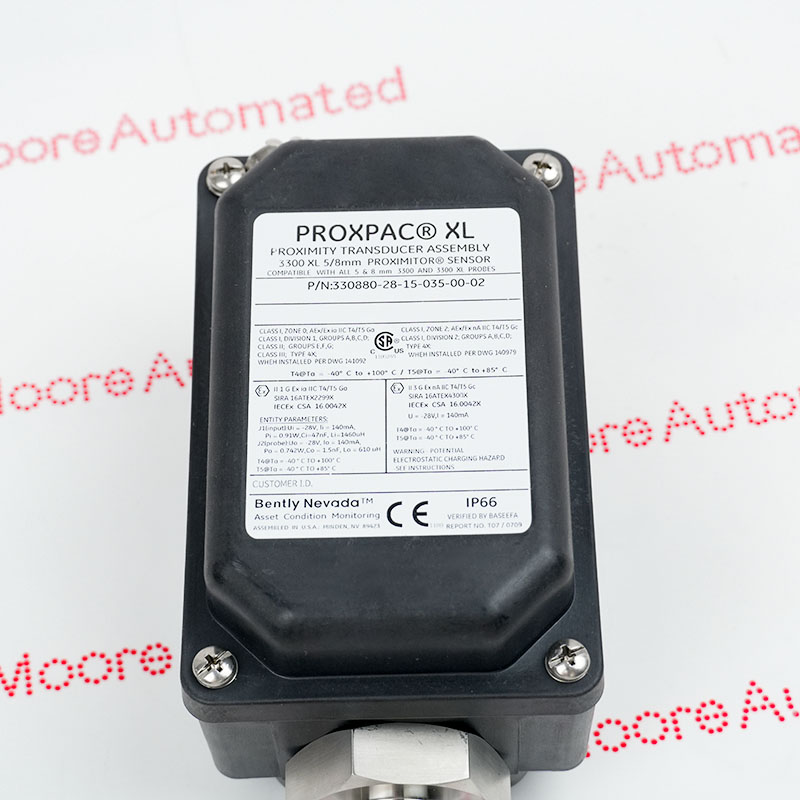

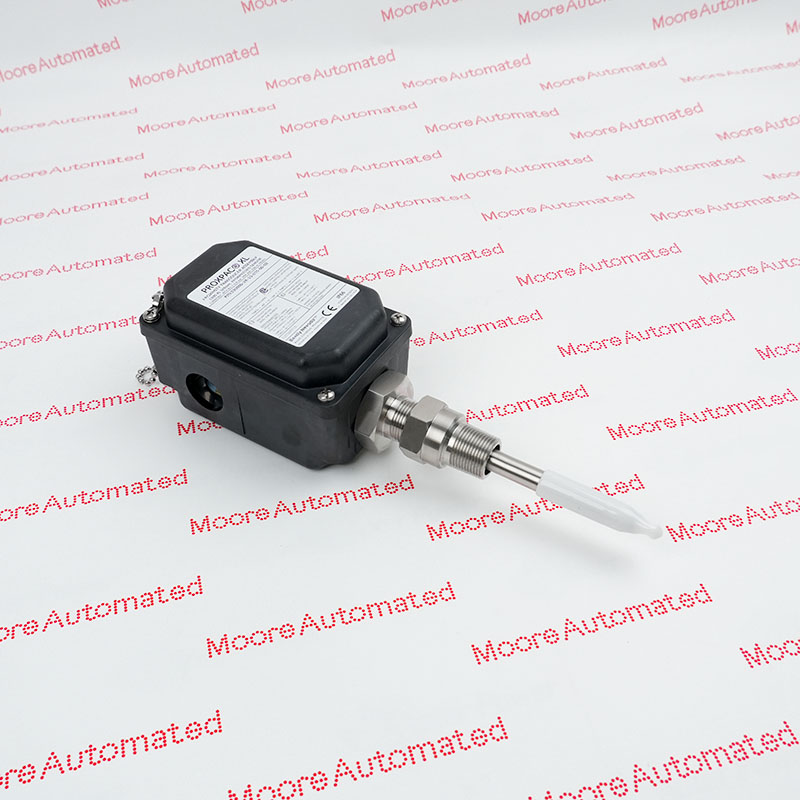

- PROXPAC XL Proximity Transducer
- Similar to our 31000/32000 Proximity Probe Housing Assemblies
- Made of Polyphenylene Sulfide (PPS), which is an advanced, molded thermoplastic
The assembly offers the same advantages and features as the 31000 and 32000 housings for accessing and externally adjusting proximity probes. However, the housing cover of the PROXPAC XL Assembly also contains its own 3300 XL Proximitor sensor.
This design makes the PROXPAC XL Assembly a completely self-contained proximity probe system, and eliminates the need for an extension cable between the probe and its associated Proximitor sensor. It also eliminates the need for a separate Proximitor housing, as the field wiring connects directly between the monitors and PROXPAC XL Assemblies.
The 330880-28-15-035-00-02 Bently Nevada PROXPAC XL Proximity Transducer may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330880-28-15-035-00-02 PROXPAC XL Proximity Transducer Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The PROXPAC XL proximity sensor assembly works by integrating a proximity probe and the 3300 XL Proximitor sensor into a single housing, forming a complete eddy current displacement measurement system. When the proximity probe approaches a metallic target, it generates a high-frequency electromagnetic field and eddy currents on the target's surface. Changes in the distance between the target and the probe cause changes in the eddy current intensity, thereby altering the impedance of the probe coil. The built-in Proximitor sensor processes and converts this impedance change, outputting a voltage signal proportional to the distance or vibration. This signal is then transmitted directly to the monitoring system via field wiring.
The primary purpose of this component is to provide high-precision monitoring of rotating machinery in environments where standard standalone sensor/cable devices are easily damaged or difficult to install.
Vibration and Displacement Monitoring: Used to measure radial vibration and axial (thrust) position of shafts in hydrodynamic bearing machinery such as turbines, compressors, and pumps.
Integrated Protection: Ideal for applications requiring an "integrated" solution, eliminating the need for external extension cables and separate proximity sensor housings.
Harsh Environments: The IP66-rated housing is made of advanced polyphenylene sulfide (PPS) material, offering exceptional corrosion resistance and withstanding water jet impacts and harsh industrial environments.
