Features:
- 16710-85 Interconnect Cable
- Interconnect Cables for 330400 and 330425 Accelerometer
- 3-conductor shielded 22 AWG (0.5 mm2) armored cable with 3-socket plug at one end
Interconnect Cable,3-conductor shielded 22 AWG (0.5 mm2) armored cable with 3-socket plug at one end, terminal lugs at the other end. Minimum length of 3.0 ft (0.9 m), maximum length of 99 ft (30 m).
These accelerometers are suitable for critical mechanical applications requiring the measurement of housing acceleration, such as gear meshing monitoring. The Model 330400 accelerometer is designed to meet the American Petroleum Institute (API) 670 standard for accelerometers. It has a peak amplitude range of 50 g and a sensitivity of 100 mV/g. The Model 330425 accelerometer is similar, but has a larger peak amplitude range (75 g) and a sensitivity of 25 mV/g.
The 16710-85 Bently Nevada Interconnect Cable may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 16710-85 Interconnect Cable Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

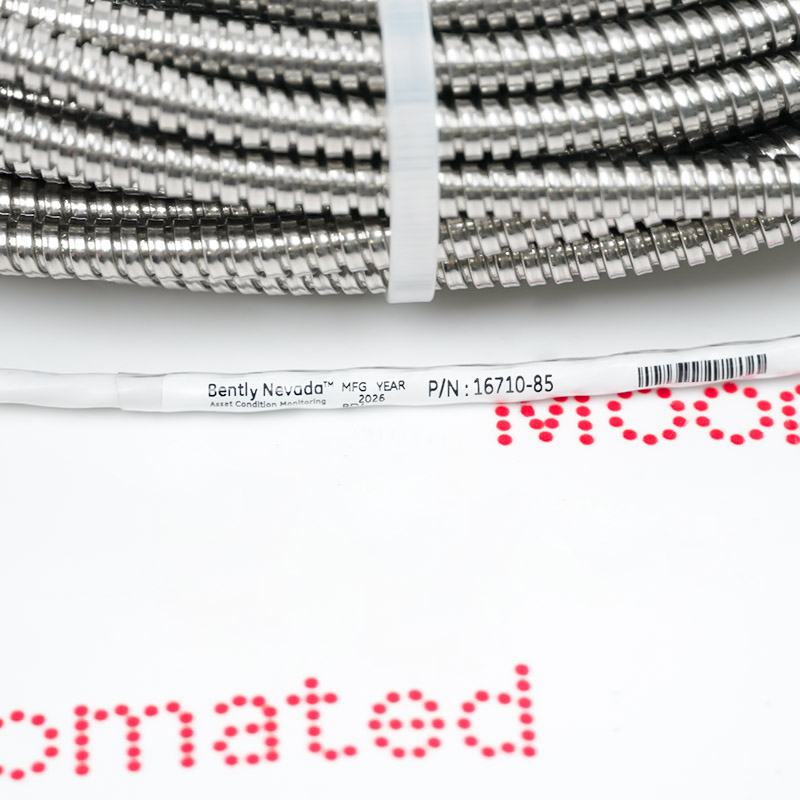

- Model: 16710-85
- Warranty: One-year warranty
- Condition: Brand new, original, in stock
- Product Family: 330400 and 330425 Accelerometer Acceleration Transducers
Interconnect Cables
Part Number-Axx
A: Cable Length Option in feet
For the cables listed below, order in increments of 1.0 ft (305 mm).
The following are standard lengths
Feet to Metres (approx.)
6 ft ( 1.8 metres )
8 ft ( 2.4 metres )
10 ft ( 3.0 metres )
12 ft ( 3.6 metres )
15 ft ( 4.5 metres )
17 ft ( 5.0 metres )
20 ft ( 6.0 metres )
25 ft ( 7.6 metres )
50 ft ( 15.2 metres )
99 ft ( 30.0 metres )
Operating Temperature: Certified to maintain stable thermal performance within the industrial temperature range of -55 °C to +200 °C (-67 °F to +392 °F).
Humidity Tolerance: Fully sealed to prevent condensation at 100% relative humidity (RH).
Maximum System Operating Distance: While this cable is 85 feet long, Bently Nevada supports a total field cabling length of up to 305 meters (1000 feet) within which high-frequency signal attenuation will not affect sensor loop calibration.
