- Ovation Analog Input Module
- 16 single-ended channels
- Hardware cabling can be flexibly adjusted via system configuration or by using suitable mounting bases (P-Mods)

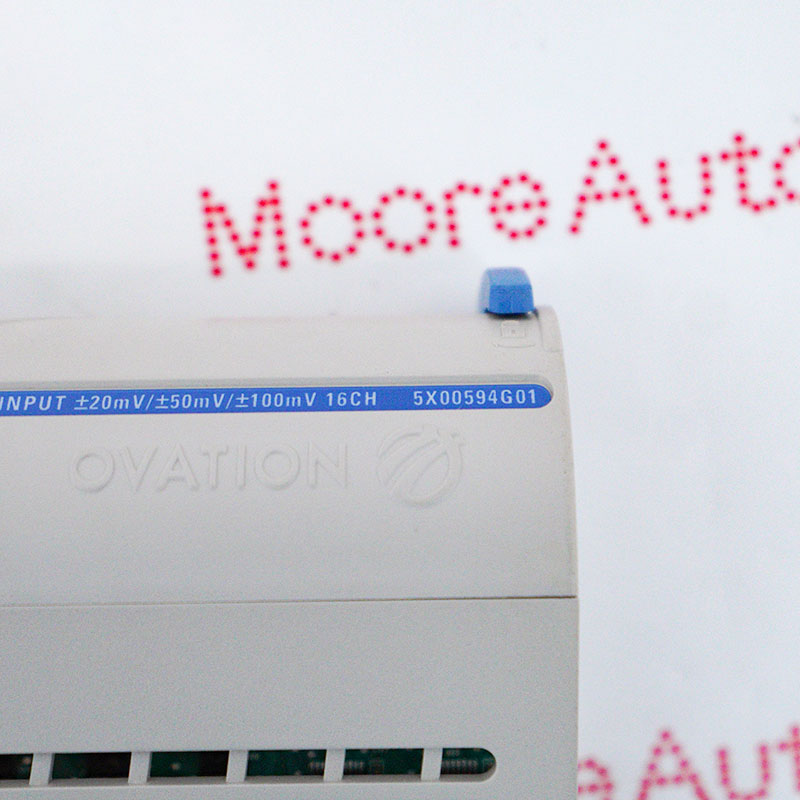

The Emerson Ovation 5X00594G01 is a 16-channel high-precision analog input module designed specifically for DCS systems, capable of real-time acquisition of continuous field data such as temperature and pressure.
It features high signal compatibility, powerful self-diagnostic and signal conditioning capabilities, effectively improving data accuracy and stability in industrial environments.
The 5X00594G01 Emerson ovation Analog Input Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Emerson ovation 5X00594G01 Analog Input Module INFO(manual), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The module's working principle primarily relies on high-precision A/D conversion and electrical isolation mechanisms to convert the pre-conditioned analog signal into a digital signal, safely transmitting it to the control system.
Data Filtering/Smoothing: Supports independent configuration of the software filtering time constant (Damping Factor) for each channel in the Ovation Developer Studio to filter out sensor jitter.
Quality Codes: Features open-circuit/over-range detection. When the field signal is below 3.5mA (open circuit) or above 21.5mA (short circuit), the module will automatically report a "BAD Status" to the controller and trigger logic interlock protection.
