Features:
- Module of GE Fanuc series 90-30 PLC systems
- 90-30 Processor module
- CPU 364 module with single slot width, processor speed of 25 MHz

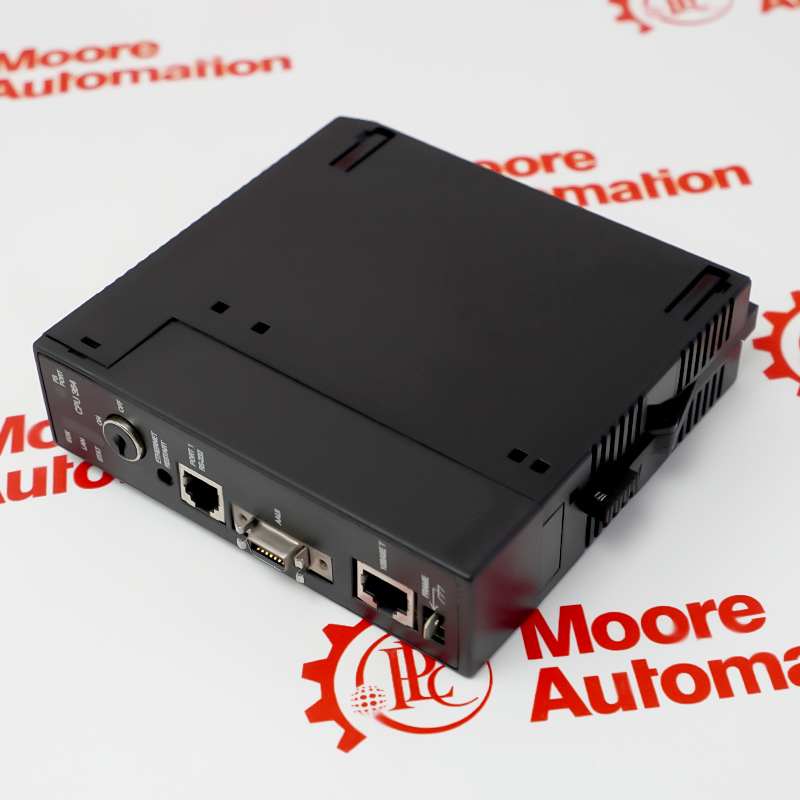

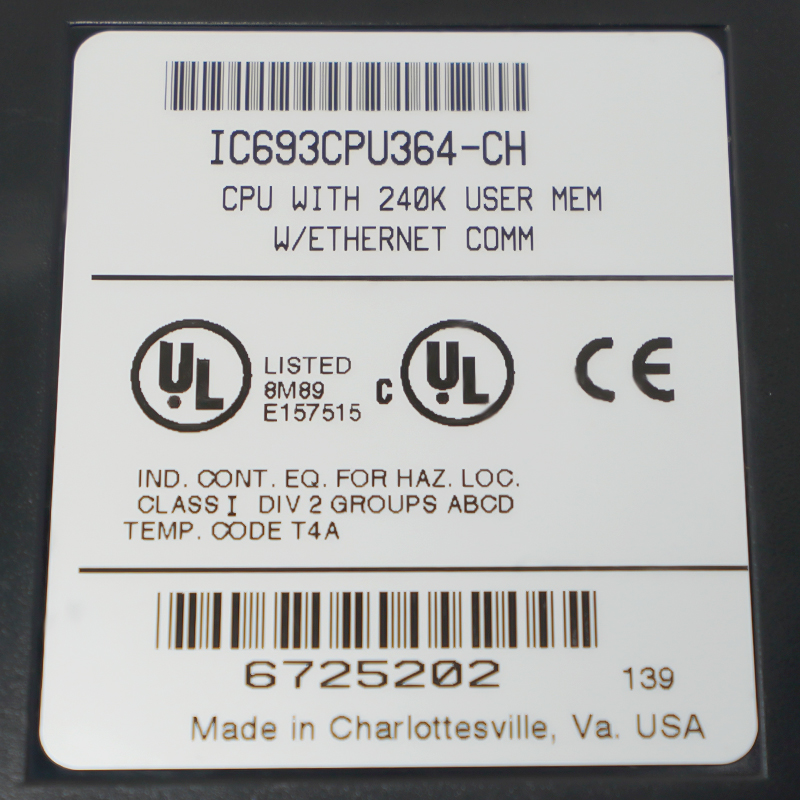

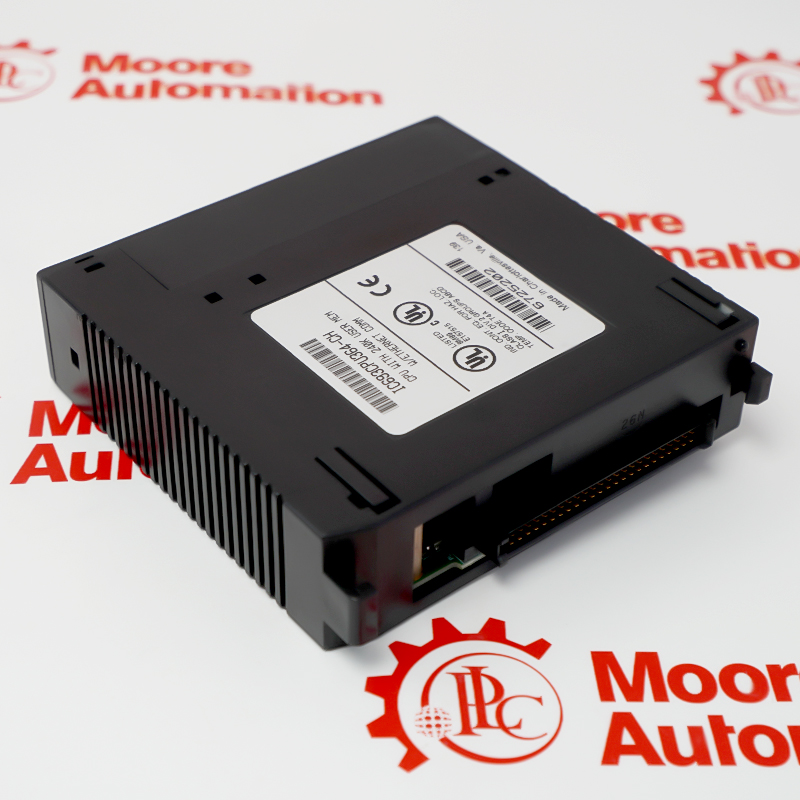

The IC693CPU364 is a controller module in the 90-30 series. Manufactured by GE Fanuc Automation, this controller features an Ethernet interface, 240KB of user memory, an 80386EX processor (25 MHz), and a typical scan rate of 0.22 milliseconds per 1K logic contact.
The controller supports up to 2,048 discrete inputs, 2,048 discrete outputs, up to 1,280 bits of internal discrete global memory, 4,096 internal coils, and 256 temporary output coils. Using Logicmaster software, analog inputs can be configured in 128-word increments, ranging from 128 words to 16,384 words; using Control version 2.2, the range is from 128 words to 32,640 words.
The IC693CPU364 GENERAL ELECTRIC CPU Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
GENERAL ELECTRIC IC693CPU364 CPU Module datasheet(manual), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
It is equipped with an Ethernet communication port for programming and communication. Additionally, the controller can communicate via a built-in RS485 communication port mounted on the leftmost slot power supply of the backplane. The controller supports up to eight backplanes, one for CPU and the remaining seven for remote I/O.
Revision Part #
Also known as
IC693CPU364AB
IC693CPU364-AB, Series AB, Rev AB
IC693CPU364AC
IC693CPU364-AC, Series AC, Rev AC
IC693CPU364BD
IC693CPU364-BD, Series BD, Rev BD
IC693CPU364BF
IC693CPU364-BF, Series BF, Rev BF
IC693CPU364CG
IC693CPU364-CG, Series CG, Rev CG
