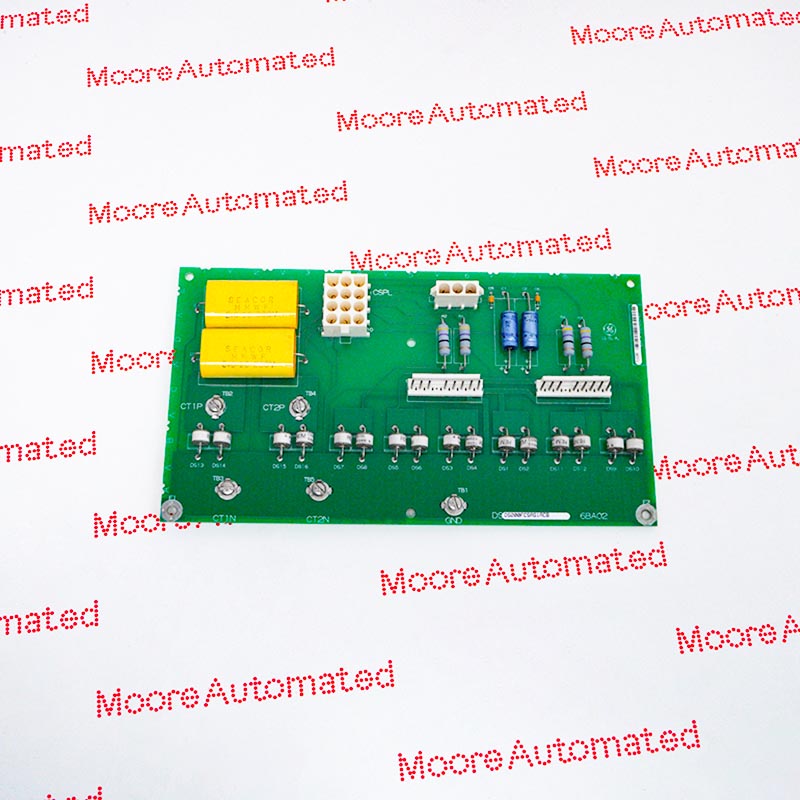

      General Electric DS200TCCAG1BAA
      General Electric DS200TCCAG1BAA
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote

      DS200TCCAG1BAA

      I/O TC2000 Analog Board
      In Stock
      Ships by Tuesday, June 23
      Fast Shipping Available

      Product Information:

      The GE DS200TCCAG1BAA is an industrial printed circuit board (PCB) used as the TC2000 general-purpose analog I/O board. Designed by GE specifically for the traditional Speedtronic Mark V series turbine control system, it manages automated gas, steam, and wind turbine components.

      It integrates two key 50-pin JCC and JDD communication connectors, as well as a 3PL interface for routing high-speed digital bus-level data from the controller to higher-level boards such as the STCA. Due to the significant heat generated by its integrated microprocessor, this hardware requires operation in a clean, dust-free, well-ventilated, and temperature-controlled electrical cabinet environment.

      Warranty Policy
      We provide 1 year warranty for all remaining parts.
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      Return Notice
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
      Shiping Mode
      Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
      Parts Availability
      Moore automated offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
      Expand All
      Collapse all

      Technical specifications for DS200TCCAG1BAA

      • Manufacturer:
        General Electric
      • Product Category:
        Gas Turbine Control
      • Spare Part Number:
        DS215TCCAG1BZZ01A DS200TCCAG1BAA
      • Estimated shipping dimensions:
        28x21.4x1.7cm
      • Weight:
        0.54 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • Product Type:
        I/O TC2000 Analog Board
      • Category Series:
        Mark V DS200
      • Functional Acronym:
        TCCA
      • PCB Coating:
        Normal Coating
      • Input Range:
        ±10 V, 0-10 V
      • Output Range:
        ±10 V
      • Current consumption:
        4–20 mA
      • Interfacing Ports:
        50-pin connectors
      • Operating temperature:
        -40°C to +70°C
      • Relative humidity:
        95% RH (no condensation)
      • Stock:
        120
      Ask for Quote

      Alternative Names

      DS200TCCAG1B DS2OOTCCAG1BAA DS200TCCAGIBAA DS200TCC4G1B44 DS2OOTCCAG1B DS200TCCAGIB DS200TCC4G1B DS215TCCAG1BZZ01A DS215TCCAG1BZZ0 DS2I5TCCAGIBZZ0IA DS215TCCAG1BZZO1A DS215TCCAG1BZZ01A DS200TCCAG1BAA DS2I5TCCAGIBZZOIA

      Information

      Overview Manuals Critical On-Site Replacement Advisory Lifecycle Status (As of 2026)

      Features:

      • Driven by an onboard Intel 80196 microprocessor and equipped with a removable programmable logic device (PLD)
      • Interchangeable EPROM modules are used to securely store the circuit board's operating instruction set
      • It features a built-in diagnostic LED status indicator located at the edge to speed up troubleshooting of physical faults on the floor
      The DS200TCCAG1BAA is the core board of the GE SPEEDTRONIC Mark V control system, officially named the TC2000 General Analog I/O Board. This board serves as the analog data hub for the entire turbine control system and is specifically installed in the Mark V's R5 core cabinet.

      This module boasts robust field signal interaction and multi-device communication capabilities, primarily used for acquiring and outputting various standard analog parameters from industrial environments. The input terminals are equipped with multi-channel circuitry, efficiently receiving 4–20 mA current signals, voltage signals, RTD (Resistance Temperature Detector) data, and thermocouple data from external terminals (such as CTBA and TBCA). The output terminals can also drive 4–20 mA signal outputs, enabling remote instruments to monitor turbine status in real time.

      The DS200TCCAG1BAA General Electric I/O TC2000 Analog Board may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
      General Electric DS200TCCAG1BAA I/O TC2000 Analog Board INFO(manual), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      When performing emergency field maintenance using a replacement DS200TCCAG1BAA control board, the slot-type EPROM module on the faulty control board must be physically transferred to the replacement board. Because these programmable chips contain custom instructions, reference calibration matrices, and firmware versions tailored to your specific wind turbine, replacing them without transferring the original EPROM module will result in the control system failing to synchronize or communicate properly.
      Discontinued: General Electric has ceased production or direct distribution of this legacy hardware product line.
      Alternative Procurement Options: Operating industrial plants must procure this component through a global MRO (Maintenance, Repair, and Overhaul) distributor (such as Moore Automated). These components can be unused surplus inventory or existing plant stock.

      Technical notes

      The GE DS200TCCAG1BAA is a TC2000 universal analog input/output board (TCCA board) specifically designed for the Speedtronic Mark V series gas/steam turbine control system. Its core technology lies in its ability to be vertically mounted in the R5 or C core area of ​​the main control panel. As the analog interaction center of the general-purpose data processor (CDP), it is specifically responsible for acquiring and processing thermocouple, RTD, 4-20 mA process current, shaft voltage, and shaft current monitoring signals from terminals such as CTBA, TBQA, and TBCA.

      Ask our team:

      Related Products

      Browsing history

      FAQ

      View All Faqs
      • How does the DS200TCCAG1BAA ensure precise thermocouple signal acquisition and conditioning within the Mark V DS200 system?
        The DS200TCCAG1BAA integrates high-accuracy cold junction compensation and precision linearization algorithms, delivering exceptional fidelity in thermocouple temperature measurement critical for turbine and process control accuracy.
      • How does the DS200TCCAG1BAA mitigate signal noise and electromagnetic interference typical in power generation plants?
        Through differential input circuitry, rigorous shielding, and integrated filtering techniques, the DS200TCCAG1BAA maintains signal integrity by minimizing susceptibility to EMI/RFI and transient disturbances.
      • What embedded diagnostic functions does the DS200TCCAG1BAA provide to enhance operational reliability and maintenance efficiency?
        The DS200TCCAG1BAA features continuous sensor fault detection, open circuit monitoring, and self-calibration diagnostics, enabling proactive fault isolation and reducing unplanned outages in critical control systems.
      • In what ways does the DS200TCCAG1BAA contribute to optimizing turbine thermal management and process control precision?
        By providing real-time, high-resolution thermocouple data with minimal latency, the DS200TCCAG1BAA supports precise thermal profiling and feedback control loops essential for turbine efficiency and longevity.
      • How is calibration and maintenance streamlined for the DS200TCCAG1BAA to sustain long-term accuracy?
        Equipped with internal calibration references and supporting field calibration procedures, the DS200TCCAG1BAA enables efficient verification and adjustment protocols, preserving measurement integrity throughout the module lifecycle.
      Quantity
      Upload
      (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
