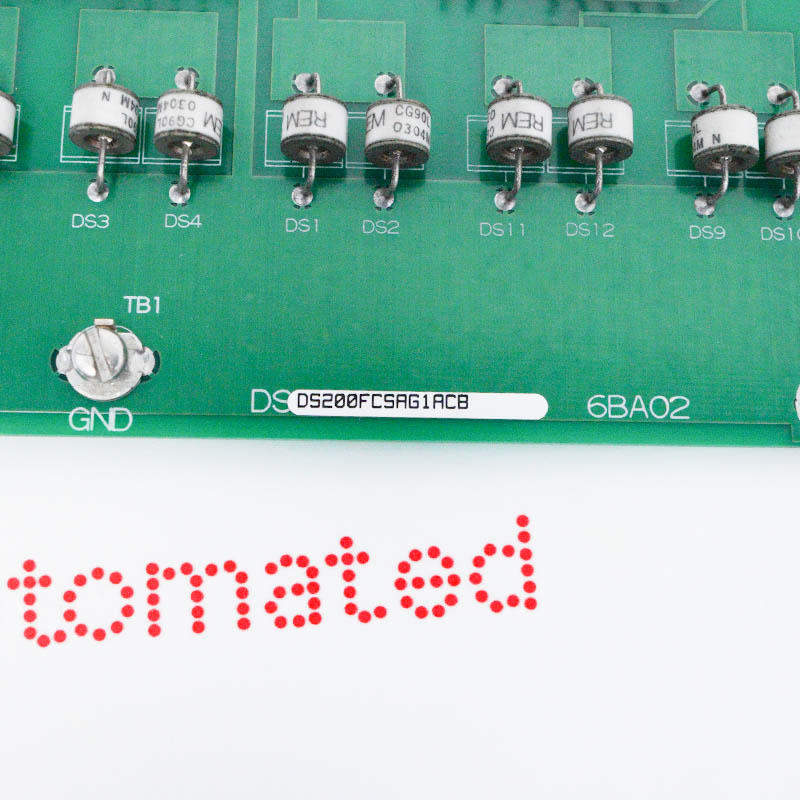

DS200FCSAG1ACB is a GE current sensing interface board used within the GE Speedtronic Mark V and Mark VI turbine-control architecture. It provides the specified current sensing interface board function while retaining the complete order code, hardware execution and receiving-system compatibility during replacement. Its documented power supply is 5V to 24V.
Verify that the supplied item is marked DS200FCSAG1ACB and that its current sensing interface board form, connectors and revision agree with the approved GE Mark V and Mark VI Turbine Controls receiving record.
For DS200FCSAG1ACB, state the required condition, quantity, installed position, connected assemblies and document requirements in the written enquiry.
Apply only parameters supported by the exact DS200FCSAG1ACB record or a documented family source. Do not infer electrical ratings or interchangeability from appearance.
DS200FCSAG1ACB technical scope: Power Supply: 5V to 24V; Current consumption: 0-20 mA; Operating Temperature: -30 ... +65 °C; Frequency response: 50 ... 60 Hz; Interface Basis: Matching connectors, terminal boards and rack hardware.
Use these values only for the listed hardware execution and verify the supplied label before installation.
Match DS200FCSAG1ACB to the approved GE Mark V and Mark VI Turbine Controls receiving position, connector or terminal arrangement and configuration record.
After power restoration, review diagnostics and test the affected current sensing interface board path.
Obsolete/Discontinued by OEM
DS200FCSAG1ACB is a General Electric current sensing interface board associated with the GE Mark V and Mark VI Turbine Controls platform. It supports the documented control, interface or signal-processing duty assigned to its installed board position. Correct selection depends on the complete model code, connector or terminal arrangement, hardware revision and receiving-system configuration. Before replacement, compare the original product label, installed slot or cabinet reference, connected assemblies and approved project records. After installation, review system diagnostics and function-test every affected channel, control path, protection function or communication link before returning the equipment to service.
