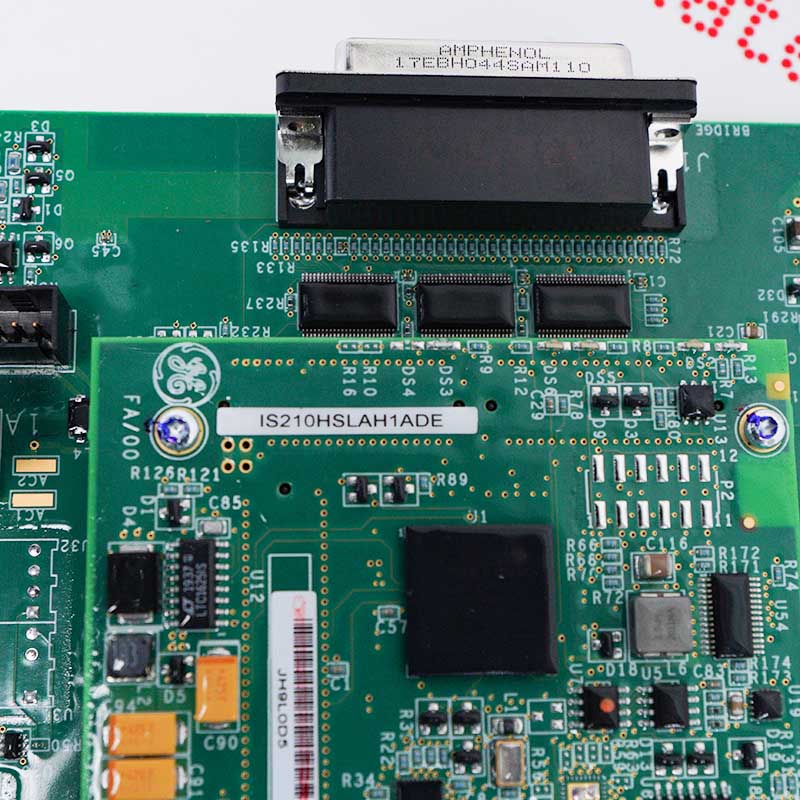

The General Electric IS210HSLAH1ADE is a link interface module for GE Mark VIe industrial automation applications. Documented product details include high-speed serial link interface module; Mark VI Turbine Control System Series; GE Boards & Turbine Control; Mark VIe & Mark VIeS Control Systems. Confirm the complete model code, hardware revision and supplied condition against the installed equipment before replacement.
Verify that the supplied item is marked IS210HSLAH1ADE and that its link interface module form, connectors and revision agree with the approved GE Mark VIe receiving record.
For IS210HSLAH1ADE, state the required condition, quantity, installed position, connected assemblies and document requirements in the written enquiry.
Apply only parameters supported by the exact IS210HSLAH1ADE record or a documented family source. Do not infer electrical ratings or interchangeability from appearance.
IS210HSLAH1ADE technical scope: Rated Voltage: 12/24 V DC; No. of channels per group: Eight (8); Output Voltage Range: 12 to 24 V DC (+20%, -15%); Power Consumption: 110mA (all outputs on) from 5Vdc bus on backplane; Product Type: Link interface module.
Use these values only for the listed hardware execution and verify the supplied label before installation.
Match IS210HSLAH1ADE to the approved GE Mark VIe receiving position, connector or terminal arrangement and configuration record.
After power restoration, review diagnostics and test the affected link interface module path.
Active / Available from OEM
IS210HSLAH1ADE is a General Electric link interface module associated with the GE Mark VIe platform. It supports the documented automation function assigned to its installed module, rack or cabinet position. Correct selection depends on the complete model code, connector or terminal arrangement, hardware revision and receiving-system configuration. Before replacement, compare the original product label, installed slot or cabinet reference, connected assemblies and approved project records. After installation, review system diagnostics and function-test every affected channel, control path, protection function or communication link before returning the equipment to service.
