Features:
- Power Supply: Supports the documented 24 VDC rating when installed in the approved GE Mark VIe configuration.
- Current Load: Supports the documented 500 mA max@ 24 VDC rating when installed in the approved GE Mark VIe configuration.
- Operating Temperature: The documented control communication gateway module specification is –20 to 50°C (–4 to 122°F); verify it against the supplied nameplate before installation.

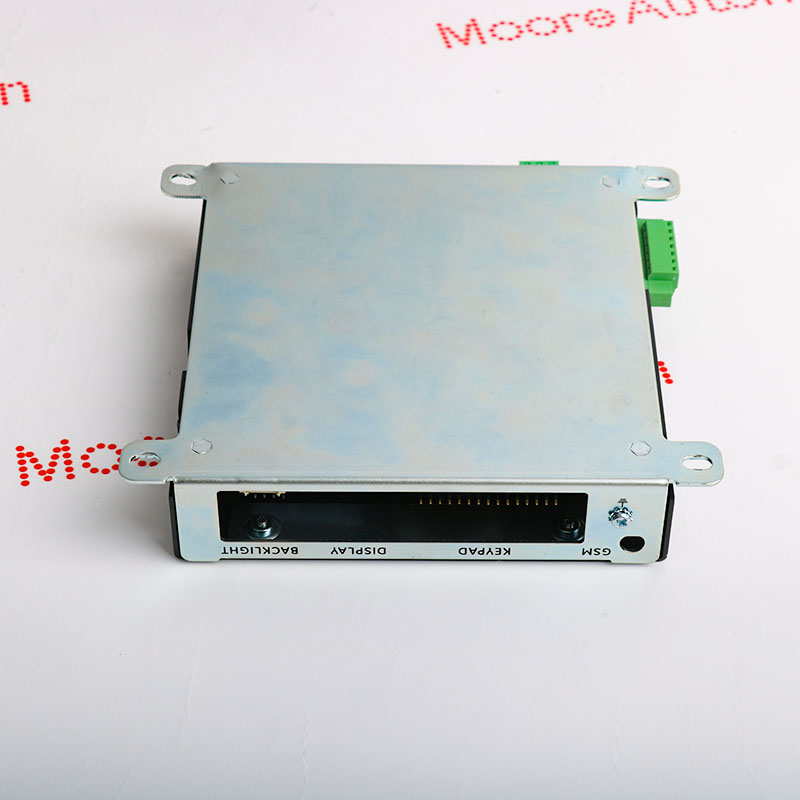

The IS420CCGAH2A General Electric control communication gateway module plays a defined role in industrial automation and maintains the documented industrial communication path between controllers and connected devices within the GE Mark VIe platform. Its documented execution helps the control system maintain dependable operation while reducing the risk of mismatched connectors, channel assignments, ratings and hardware revisions during maintenance.
Before installing IS420CCGAH2A, compare the complete product label, terminal or connector arrangement, paired assemblies, firmware or logic requirements and approved project records. After replacement, review diagnostics and function-test every affected control, protection, communication or field-signal path before returning the equipment to service.
The IS420CCGAH2A General Electric Control Communication Gateway Module is identified as Active / Available from OEM. Current availability, revision and supplied scope are confirmed in the written quotation.
General Electric IS420CCGAH2A documentation and reference links.
Important Notice: The linked information must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement.

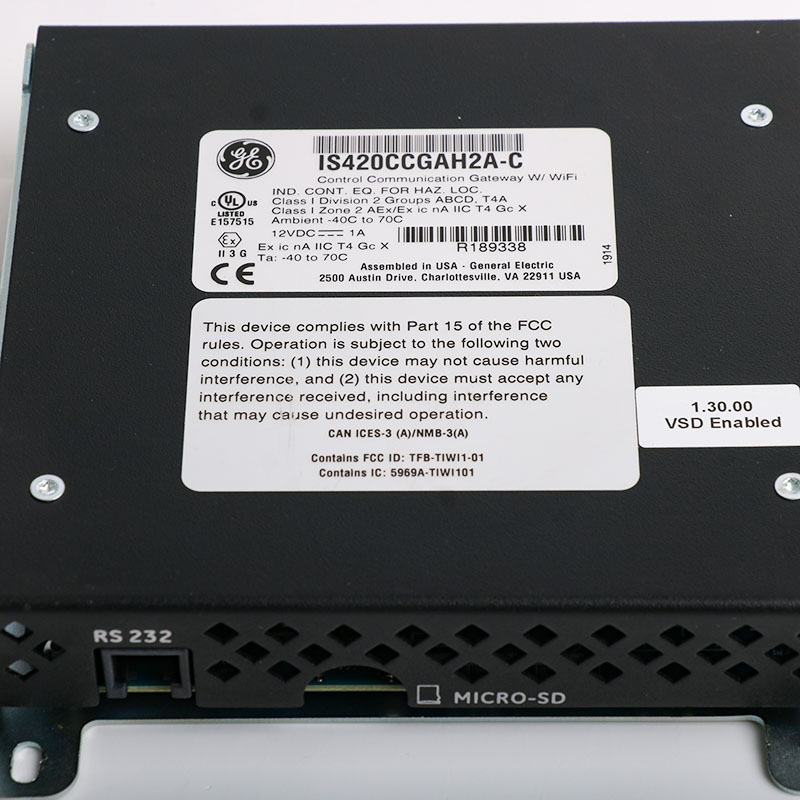

Verify that the supplied item is marked IS420CCGAH2A and that its control communication gateway module form, connectors and revision agree with the approved GE Mark VIe receiving record.
For IS420CCGAH2A, state the required condition, quantity, installed position, connected assemblies and document requirements in the written enquiry.
Apply only parameters supported by the exact IS420CCGAH2A record or a documented family source. Do not infer electrical ratings or interchangeability from appearance.
