High-performance control processor module designed specifically for the Mark VIe distributed control system platform. Its primary functions are executing control logic, sequential management, and real-time data processing, making it suitable for industrial automation and power generation applications. As the central processing unit in the control architecture, the module coordinates communication between I/O modules, field devices, and monitoring systems to ensure stable and deterministic system operation.
It can handle critical tasks such as signal processing, alarm management, system diagnostics, and fault handling, while maintaining synchronized operation among distributed controllers. Its industrial-grade design allows it to be deployed in demanding environments such as turbines, power plants, and process control facilities where real-time performance and system integrity requirements are extremely high.
The IS200TBAIH1CCC GENERAL ELECTRIC Analog Terminal Board may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
GENERAL ELECTRIC IS200TBAIH1CCC Analog Terminal Board INFO (manual), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
This module receives analog and/or digital input signals from connected sensors or subsystems, performs signal isolation, filtering, and level conversion via onboard circuitry, and then transmits the processed data to the central controller via a high-speed backplane or internal communication bus. Simultaneously, it parses control commands from the main processor and distributes corresponding output signals to relevant field devices or subordinate modules. All of this is achieved through coordinated data exchange, electrical isolation, and embedded firmware logic.
1. The IS200TBAIH1CCC is a comprehensive component that facilitates communication between field devices and the I/O processor:
2. Redundancy Support: Fully compatible with simplex (via connector JR1) and Triple Modular Redundancy (TMR) architectures (using all three DC-37-pin connectors: JR1, JS1, and JT1).
3. Signal Protection: Protects analog data integrity from external interference with dedicated noise suppression circuitry and surge protection.

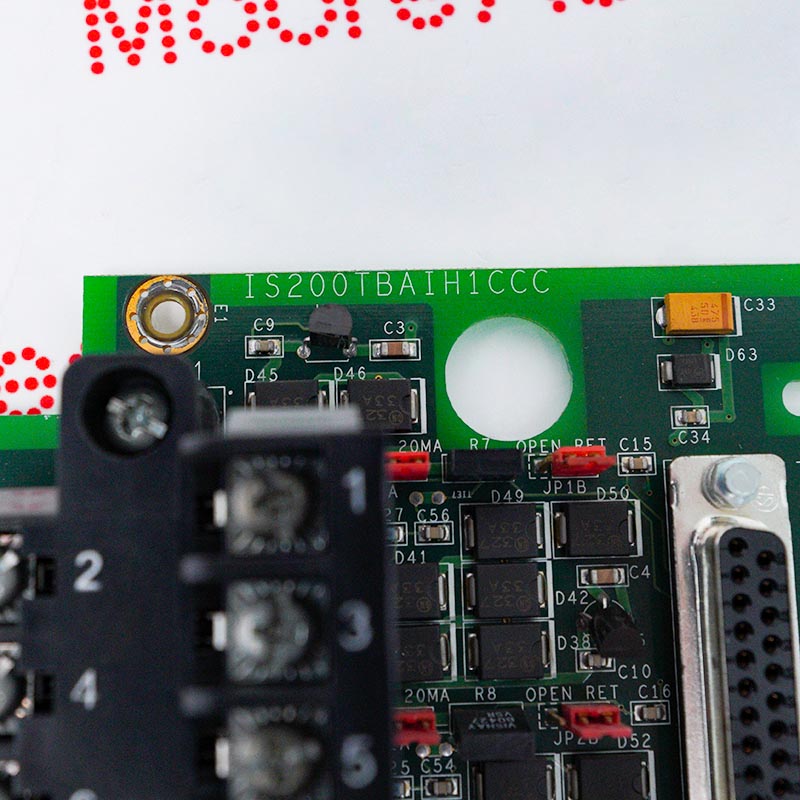

4. Hardware Interface: Equipped with two black terminal blocks (TB1 and TB2), totaling 48 terminals, it can connect wires up to 12 AWG.
5. Configurability: Jumpers allow users to switch between current and voltage input types according to specific sensor requirements.
