Features:
- Thermocouple input module that excels in high-resolution applications
- It supports both J and K type thermocouples
- Offering precision with a resolution of 0.1 degrees Celsius across eight channels

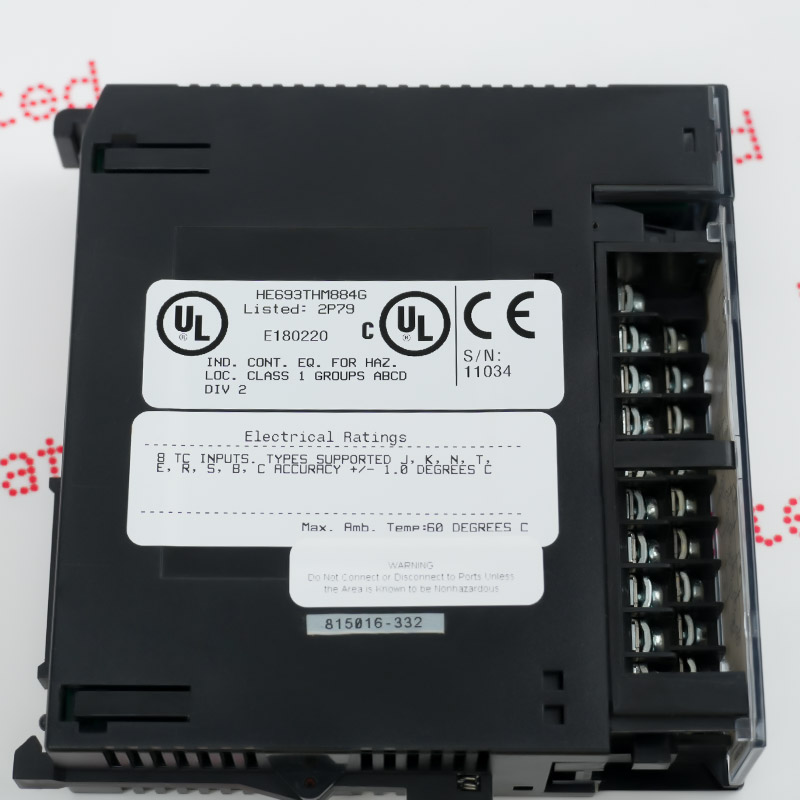

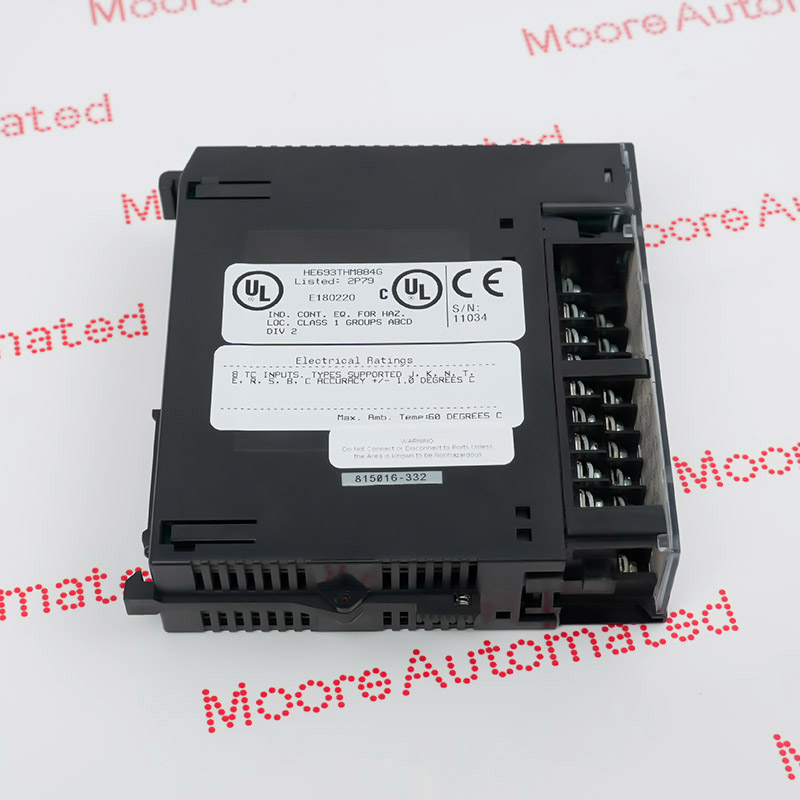

The Horner HE693THM884G is a precision thermocouple input module designed for accurate temperature measurement. It supports both Type J and Type K thermocouples, eliminating the need for external sensors or transmitters. The module offers eight input channels, allowing simultaneous monitoring of multiple temperature points.
This high-resolution module boasts a resolution of up to 0.1 degrees Celsius, ensuring accurate readings. It employs a combination of analog and digital signal processing, optimizing performance for a wide range of applications. Its 18-bit integrating analog-to-digital converter achieves a conversion speed of only 5 milliseconds, ensuring efficient operation even in dynamic environments.
The HE693THM884G GENERAL ELECTRIC thermocouple input module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
GENERAL ELECTRIC HE693THM884G thermocouple input module datasheet(manual), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Furthermore, the HE693THM884G features a scan rate of up to 40 channels per second for rapid data acquisition. Its power consumption is only 100 mA (5V DC), making it energy-efficient. An input impedance greater than 20 MΩ ensures stability and reliability for measurement tasks. Operating in a temperature range of 0 to 60 degrees Celsius, the module is designed for a wide range of applications and can withstand non-condensing relative humidity from 5% to 95%. Therefore, it is well-suited for various environments, ensuring reliable temperature monitoring and control.
- Extreme care must be taken when using grounded thermocouple sensors to avoid applying voltage to the thermocouple junctions.
- The correct type of thermocouple extension cable must be used. To maintain rated accuracy, ensure the total lead resistance is less than 100Ω.
- The extension cable should be laid in a dedicated conduit. Shielded twisted-pair extension cables offer the best interference immunity.
- If using shielded cable, a good ground connection is crucial. Terminals 19 and/or 20 can be used as the shield grounding terminals.
