Features:
- Terminates 16 analog outputs from the PAOY22 processor family.
- Supports the documented redundant and standby-manual arrangement.
- Uses compression terminals on a conformally coated size-B board.

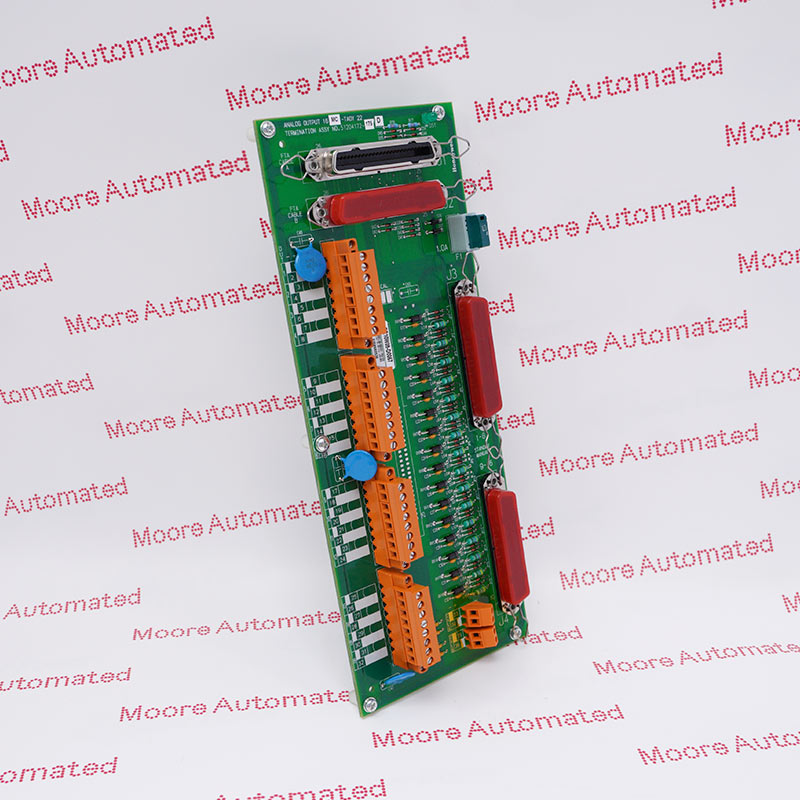

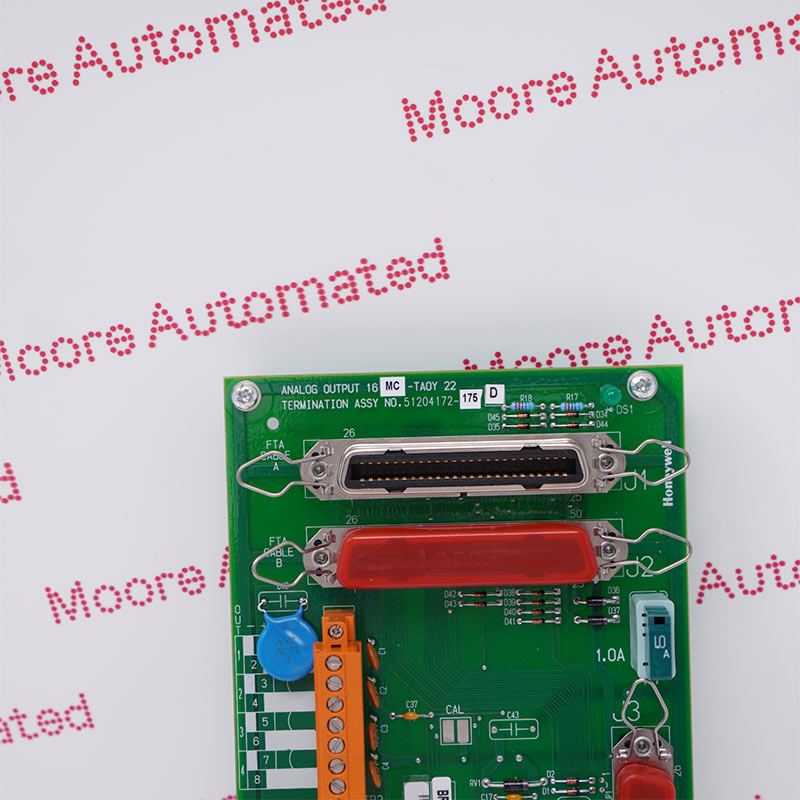

Honeywell MC-TAOY22 is the conformally coated field termination assembly for sixteen PAOY22 analog output circuits. It uses compression terminals and includes the documented standby-manual connection. The manufacturer lists the arrangement for single or redundant applications; it is not a processor by itself. When connected to the specified processor, the system supports 4-20 mA outputs and a maximum resistive load of 750 ohms at 20 mA with the 24 V supply at 20 V.
The size-B footprint measures 307.3 mm by 120.65 mm, so mounting-channel space and wire access should be checked before replacement. Honeywell specifies a maximum 20 ms gap at zero current during redundant failover and once-per-minute switching-hardware diagnostics for this output arrangement. Those characteristics belong to the complete configured architecture. Preserve the installed standby-manual connections and output assignments, and compare the complete 51204172-175 assembly marking rather than substituting a similarly named termination with a different connector form.
The MC-TAOY22 51204172-175 Honeywell Coated Analog Output Termination Assembly may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell MC-TAOY22 51204172-175 official technical documentation and product links.
This multi-page Honeywell technical document contains the exact model and its technical data. Apply the values to the supplied type number and verify its revision before installation.
The TAOY22 termination belongs to the PAOY22 sixteen-output system and supports the documented redundancy arrangement. During failover, the specified zero-current gap is no more than 20 ms. Evaluate the receiving valve or actuator response to that transition within the approved process-control design.
The standby-manual connection distinguishes TAOY22 from the TAOY23 version that omits this facility. Record the installed manual-control equipment and its wiring before changing the FTA. The presence of the connector does not mean a manual station, cable or operating procedure is included in the supplied board.
For the specified processor/FTA combination, the maximum resistive load is 750 ohms at 20 mA with the 24 V supply reduced to 20 V. Allow for field wiring and receiver resistance when assessing the loop. Do not treat the maximum current limit as a normal actuator command.
