Features:

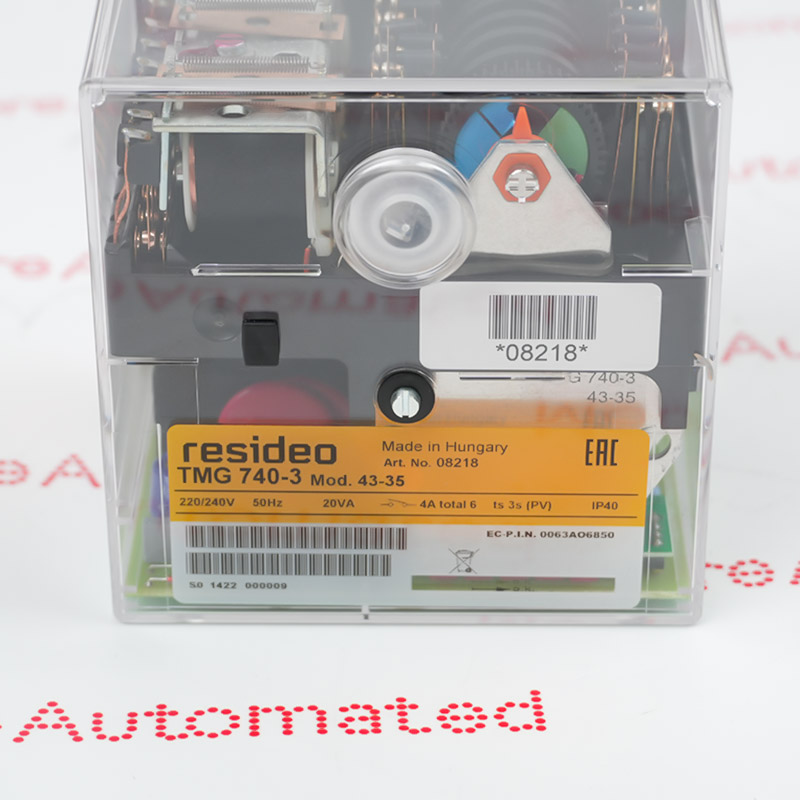

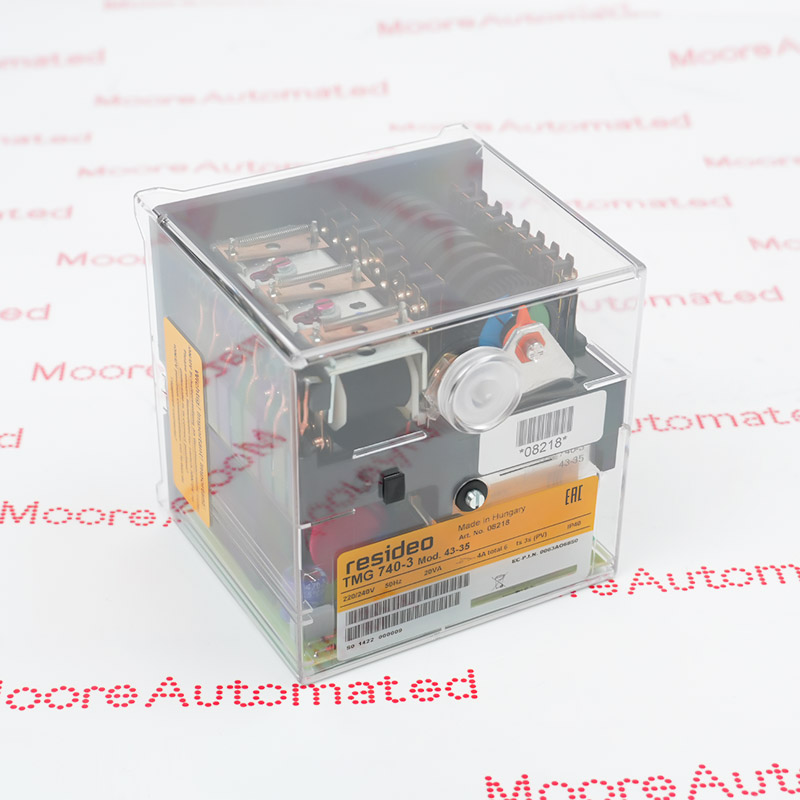

- Honeywell TMG740-3 MOD 43-35, order number 08218, controls and supervises medium- and high-capacity forced-draught or dual-fuel burners.
- Confirm Mod. 43-35 timing, 220/240 V supply, flame detector, burner stages, air-pressure supervision, base and wiring before replacement.

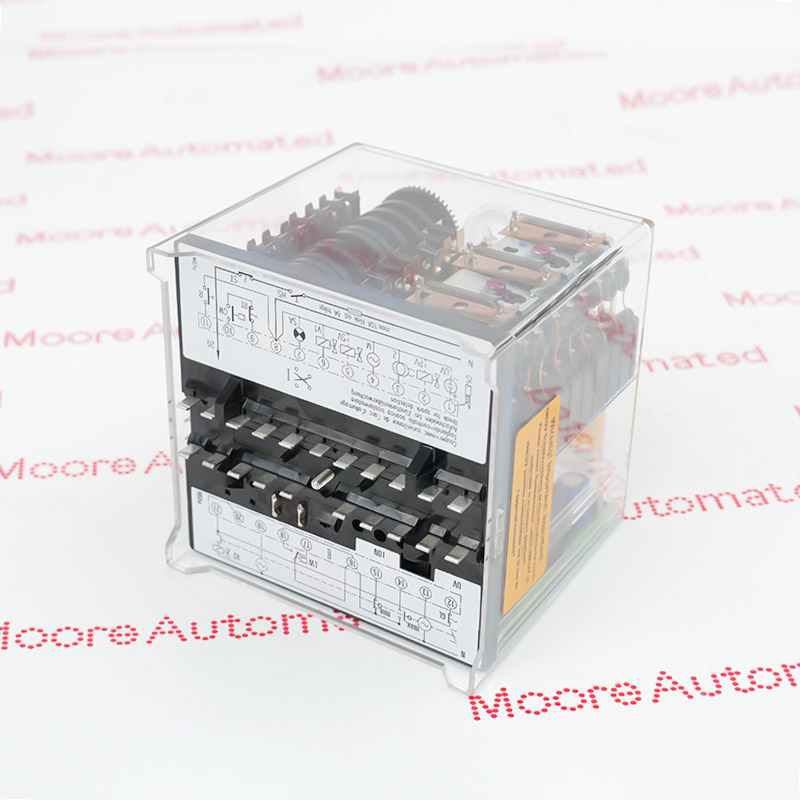

- Preserve the 16-terminal base wiring, detector selection and approved burner sequence, then secure the controller in any permitted mounting position.
TMG740-3 MOD 43-35 must be matched to the receiving equipment and project record. Complete the approved purge, ignition, pilot, main-flame, lockout and reset tests before releasing the burner to automatic operation.
Official source: official Honeywell TMG 740-3 Mod. 43-35 PDF. Values not tied to the exact official source are withheld.
TMG740-3 MOD 43-35 official technical documentation and verified Moore Automated resources.
Important Notice: Confirm the complete model, article number and installed configuration before replacement. All links open in a new page.
Use the official Mod. 43-35 purge, ignition, pilot and main-valve timing sequence.
Match the installed ionization, UV or infrared detector and its documented wiring.
Prove airflow, ignition, flame failure, lockout and manual reset under the approved procedure.
